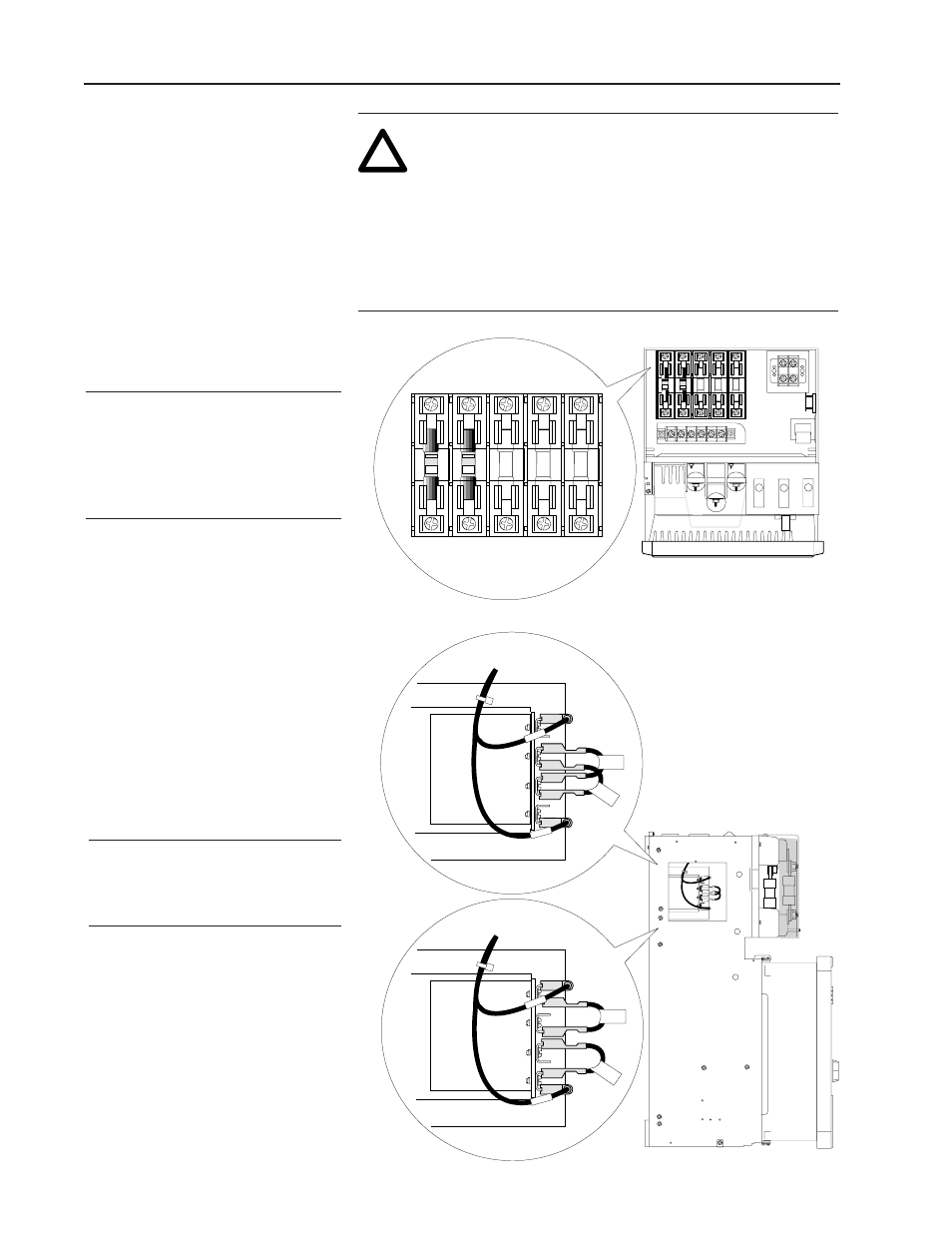

1397 460-to-230V Conversion Kit
1397 – 5.16 August, 2013
4FU 5FU
❏ 1 Remove and lock-out all
incoming power to the drive.
Replace fuses 4FU
&
5FU with
the (2) fuses included with the
kit
Control Transformer
Set for
460V
AC Input Line
Control Transformer
Set for
230V
AC Input Line
H4
783
782
H2
H3
H1
-030
RD
1966
610273
07-08-
783
782
H4
783
782
H2
H3
H1
-030RD
1966
610273
07-08-
783
782
❏ 2 Reconnect the drive control
transformer for 230V AC input
operation.
Installation
ATTENTION: Electric Shock can cause injury or death.
Remove all power before working on this product.
The drive is at line voltage when connected to incoming AC
power. Before proceeding with any installation or
troubleshooting activity, disconnect, lock out, and tag all
incoming power to the drive. Verify with a voltmeter that no
voltage exists at terminals L1, L2 and L3 on the drive input
power terminal block.
!
