1336 PLUS, 1336 PLUS II & 1336 FORCE™ NEMA Type 1 Enclosure Kit

Door Grounding Jumper

Jumper must be Installed inside
Enclosure between Enclosure Door
(Grounding Stud) and Chassis
Grounding Stud.

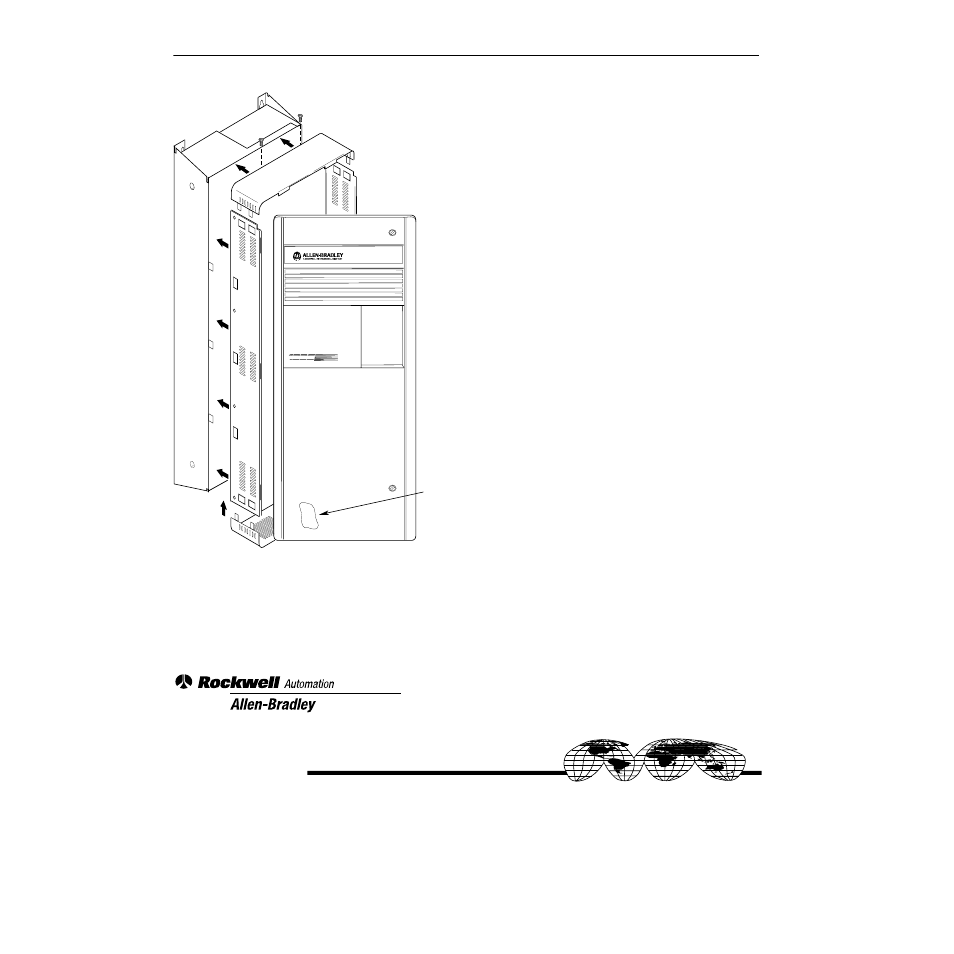

Figure 5
Enclosure Kits – 1336S/F/T-AA6 and -AA7
EMC Enclosure Kits – 1336S/F/T-AE6 and -AE7

For CE conformance, the EMI gasket (pre-installed) and jumper (see
below) supplied with the 1336S/F/T-AE6 & AE7 must be in place.

1. Slide the side plates over the chassis tabs as shown.

2. Attach the top and bottom plates to the side plates by

sliding the tabs into the corresponding slots. Fasten the
assembly to the chassis using the supplied screws. Tighten
all screws to 2.8 N-m (25 lb.-in.).

3. Install the door on the side plate hinge pins.

4. For EMC Kits - locate the supplied jumper wire and fasten

one end to the chassis ground stud. The other end must be
fastened to the stud located in the lower corner of the door.

Rockwell Automation helps its customers receive a superior return on their investment by bringing
together leading brands in industrial automation, creating a broad spectrum of easy-to-integrate
products. These are supported by local technical resources available worldwide, a global network
of system solutions providers, and the advanced technology resources of Rockwell.

Worldwide representation.

Argentina • Australia • Austria • Bahrain • Belgium • Bolivia • Brazil • Bulgaria • Canada • Chile • China, People’s Republic of • Colombia • Costa Rica • Croatia • Cyprus
Czech Republic • Denmark • Dominican Republic • Ecuador • Egypt • El Salvador • Finland • France • Germany • Ghana • Greece • Guatemala • Honduras • Hong Kong
Hungary • Iceland • India • Indonesia • Iran • Ireland • Israel • Italy • Jamaica • Japan • Jordan • Korea • Kuwait • Lebanon • Macau • Malaysia • Malta • Mexico
Morocco • The Netherlands • New Zealand • Nigeria • Norway • Oman • Pakistan • Panama • Peru • Philippines • Poland • Portugal • Puerto Rico • Qatar • Romania • Russia
Saudi Arabia • Singapore • Slovakia • Slovenia • South Africa, Republic of • Spain • Sweden • Switzerland • Taiwan • Thailand • Trinidad • Tunisia • Turkey • United Arab Emirates
United Kingdom • United States • Uruguay • Venezuela

Rockwell Automation Headquarters, 1201 South Second Street, Milwaukee, WI 53204-2496 USA, Tel: (1) 414 382-2000, Fax: (1) 414 382-4444

Publication 1336 PLUS-5.6 – July, 1998

P/N 74001-008-01 (02)

Supersedes February, 1998

Figure 5
1336S/F/T-AA6 & -AA7 Enclosure Kits
1336S/F/T-AE6 & -AE7 EMC Enclosure Kits
