1606-XLEDNET3, 1606-XLSDNET4, 1606-XLSDNET8: Power Supply Instruction Manual
1606-XLEDNET3, 1606-XLSDNET4, 1606-XLSDNET8: Bedienungsanleitung für Stromversorgung

Terminals and Wiring

Use appropriate copper cables that are designed for a minimum operating temperatures of 60°C
(for ambient up to 45°C) and 75°C (for ambient up to 60°C). Follow national installation codes and
regulations! Ensure that all strands of a stranded wire enter the terminal connection! Up to two
stranded wires with the same cross section are permitted in one connection point (except for the
PE wire). Ferrules are allowed, but not required. Unused terminal spaces must be closed.
1606-XLEDNET3:

Solid wire / Stranded wire / AWG

0.5-6mm

2

/ 0.5-4mm

2

/ 20-10 AWG

Wire stripping length

7mm / 0.28inch

Tightening torque

0.8Nm / 7lb.inch

1606-XLSDNET4: Input

terminals:

Solid wire / Stranded wire / AWG

0.5-6mm

2

/ 0.5-4mm

2

/ 20-10 AWG

Wire stripping length

7mm / 0.28inch

Output and signal terminals:

Solid wire / Stranded wire / AWG

0.3-4mm

2

/ 0.3-2.5mm

2

/ 26-12 AWG

Wire stripping length

6mm / 0.25inch

1606-XLSDNET8:

Solid wire / Stranded wire / AWG

0.5-6mm

2

/ 0.5-4mm

2

/ 20-10 AWG

Wire stripping length

7mm / 0.28inch

Anschlussklemmen und Verdrahtung

Verwenden Sie geeignete Kupferkabel, die mindestens für 60°C bei einer Umgebungstemperatur
bis zu 45°C und 75°C bei einer Umgebungstemperatur bis zu 60°C zugelassen sind. Beachten
Sie nationale Bestimmungen und Installationsvorschriften! Stellen Sie sicher, dass keine
einzelnen Drähte von Litzen abstehen. Bis zu zwei Leiter mit gleichem Querschnitt sind in einem
Anschlusspunkt zulässig (außer beim Schutzleiter). Aderendhülsen sind erlaubt, aber nicht
erforderlich. Nichtbenutzte Klemmen immer zudrehen.
1606-XLEDNET3:

Starrdraht / Litze / AWG

0,5-6mm

2

/ 0,5-4mm

2

/ 20-10 AWG

Abisolierlänge

7mm

/

0,28inch

Empf. Anzugsdrehmoment

0,8Nm / 7lb.inch

1606-XLSDNET4: Eingangsklemmen:

Starrdraht / Litze / AWG

0,5-6mm

2

/ 0,5-4mm

2

/ 20-10 AWG

Abisolierlänge

7mm

/

0,28inch

Ausgangs- und Signalklemmen:

Starrdraht / Litze / AWG

0,3-4mm

2

/ 0,3-2,5mm

2

/ 26-12 AWG

Abisolierlänge

6mm

/

0,25inch

1606-XLSDNET8:

Starrdraht / Litze / AWG

0,5-6mm

2

/ 0,5-4mm

2

/ 20-10 AWG

Abisolierlänge

7mm

/

0,28inch

Output- and Overload Characteristic

(see Fig. 5)

The units are overload, no-load, short-circuit proof. At overload, the output current flows
continuously. The unit does not switch-off or hiccup at overload.

Ausgangs- und Überlastverhalten

(siehe Bild 5)

Die Geräte sind leerlauf-, überlast- und kurzschlussfest. Bei Überlast fließt kontinuierlich Strom.
Die Geräte schalten nicht ab und haben auch keinen „Hiccup“ Modus.

DC-OK Relay Contact

except 1606-XLEDNET3 (see Fig. 6)

This feature monitors the output voltage, which is produced by the power supply, and is
independent of a return voltage from a unit which is connected in parallel.
Contact closes when the output voltage reaches 20.5V
Contact opens when the output voltage dips more than 10%. Short dips will be extended to a
length of 250ms. Dips shorter than 1ms will be ignored.
Contact ratings: max.: 60Vdc 0.3A, 30Vdc 1A, 30Vac 0.5A, Resistive load, min.: 1mA

DC-OK Relais Kontakt

außer 1606-XLEDNET3 (siehe Bild 6)

Diese Funktion überwacht die vom Gerät erzeugte Ausgangsspannung und lässt sich von einer
rückwärts eingespeisten Spannung nicht beeinflussen (z.B.: bei Parallelschaltung)
Kontakt schließt sobald die Ausgangsspannung 21,5V erreicht
Kontakt öffnet sobald der Ausgang um mehr als 10% einbricht. Kurze Einbrüche werden auf
250ms verlängert. Einbrüche kürzer 1ms werden ignoriert.
Belastbarkeit: max.: 60Vdc 0,3A; 30Vdc 1A; 30Vac 0,5A; (R-Last); min.: 1mA

Dielectric Strength

(see Fig. 4)

The output voltage is floating and separated from the input according to SELV (IEC/EN 60950-1)
and PELV (EN 60204-1, EN 50178; IEC 62103, IEC 60364-4-41) requirements. Type and factory
tests are conducted by the manufacturer. Field tests may be conducted in the field using the
appropriate test equipment which applies the voltage with a slow ramp (2s up and 2s down).
Connect phase and neutral together as well as all output poles before the test is conducted.

A B

C

D

Type Test (60s)

2500Vac

3000Vac

500Vac

500Vac

Factory Test (5s)

2500Vac

2500Vac

500Vac

500Vac

Field Test (5s)

2000Vac

2000Vac

500Vac

500Vac

Isolationsfestigkeit

(siehe Bild 4)

Die Ausgangsspannung hat keinen galvanischen Bezug zur Erde oder Schutzleiter und ist zum
Eingang nach den SELV (IEC/EN 60950-1) und PELV (EN 60204-1, EN 50178, IEC 62103, IEC
60364-4-41) Standards getrennt. Typ- und Stückprüfungen werden beim Hersteller durchgeführt.
Wiederholungsprüfungen dürfen mittels geeigneten Prüfgenerators mit langsam (2s) ansteigenden
und abfallenden Spannungsrampen in der Anwendung erfolgen. Vor den Tests sind Phase und
Neutralleiter wie auch alle Ausgangspole miteinander zu verbinden.

A B C D

Typprüfung (60s)

2500Vac

3000Vac

500Vac

500Vac

Stückprüfung (5s)

2500Vac

2500Vac

500Vac

500Vac

Wiederholungsprüfung (5s)

2000Vac

2000Vac

500Vac

500Vac


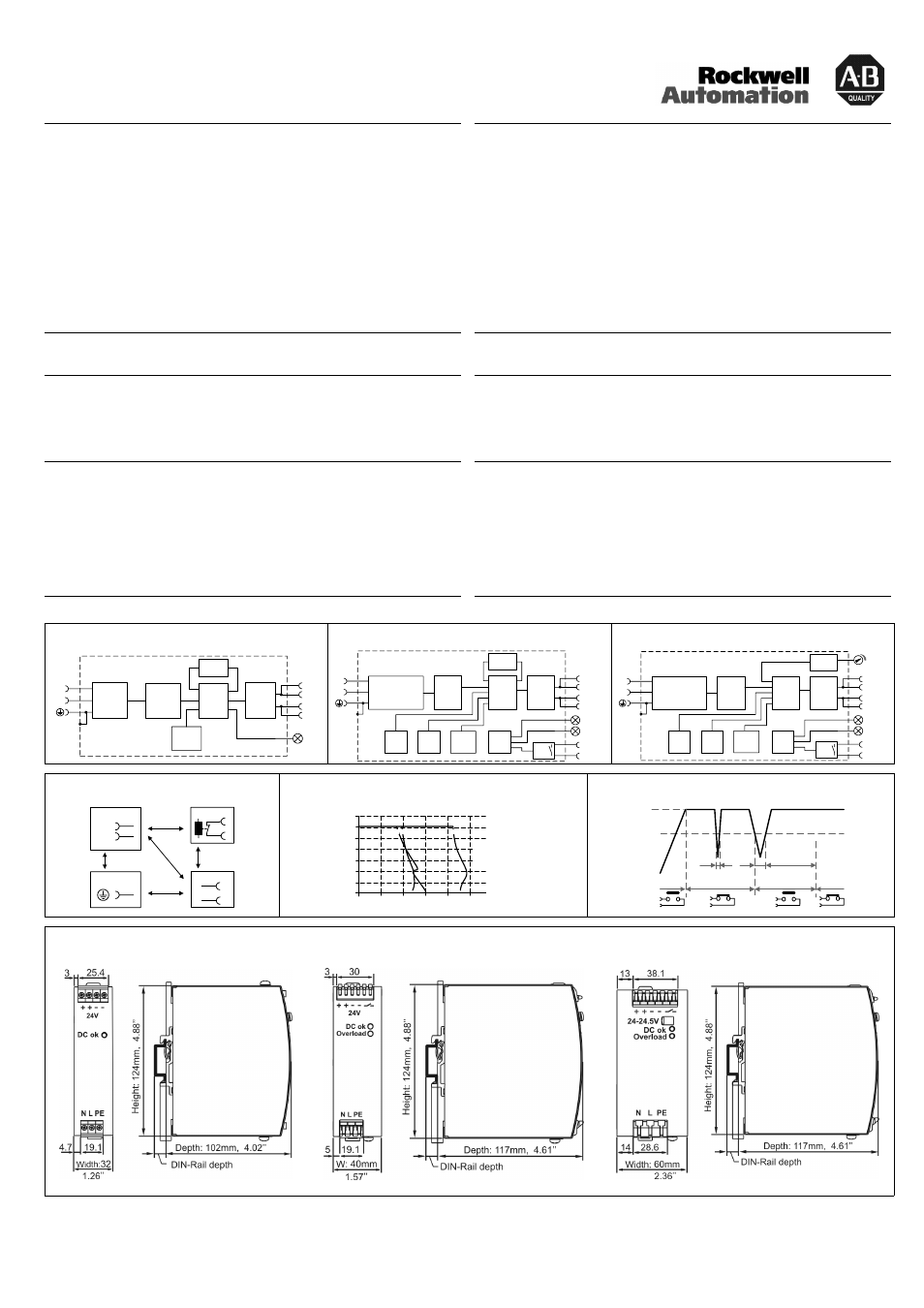

Fig. 1 / Bild 1

1606-XLEDNET3: Functional Diagram / Funktionsschaltbild

Fig. 2 / Bild 2

1606-XLSDNET4: Functional Diagram / Funktionsschaltbild

Fig. 3 / Bild 3

1606-XLSDNET8: Functional Diagram / Funktionsschaltbild

+

+

-

-

Input Fuse
&
Input Filter

Output

Voltage

Regulator

Power

Converter

Output

Filter

DC

ok

L

N

Output

Over-

Voltage

Protection

Input
Rectifier
&
NTC Inrush
Limiter

+

+

-

-

DC-ok

contact

Output

Over-

Voltage

Protection

PFC

Converter

Output

Voltage

Regulator

Power

Converter

Output

Filter

DC-ok

Relay

Output

Voltage

Monitor

Output

Power

Manager

Temper-

ature

Shut-

down

Overload

lamp
DC-ok

lamp

Input Fuse
Input Filter
Input Rectifier
Active Transient Filter &
Inrush Current Limiter

L

N

+

+

-

-

DC-ok

contact

Output

Over-

Voltage

Protection

PFC

Converter

Output

Voltage

Regulator

Power

Converter

Output

Filter

DC-ok

Relay

Output

Voltage

Monitor

Output

Power

Manager

Temper-

ature

Shut-

down

Overload

lamp
DC-ok

lamp

Input Fuse
Input Filter
Input Rectifier
Active Transient Filter &
Inrush Current Limiter

V

OUT

L

N

Fig. 4 / Bild 4

Insulation / Isolation

Fig. 5 / Bild 5

Overload Characteristic / Überlastverhalten

Fig. 6 / Bild 6

DC-OK Signal (except / außer 1606-XLEDNET3)

A

D

C

B

B

Input

DC-ok

Earth

Output

-

+

N

L

Output Voltage

0

0

2

6

8

10A

4

8

12

28V

16

20

24

4

Output Current

a) 1606-XLEDNET3

b) 1606-XLSDNET4

c) 1606-XLSDNET8

a b

c

250ms

21.5V

<1ms

open

24V

open

closed

closed

>1ms

Fig. 7 / Bild 7 Physical Dimensions / Abmessungen

1606-XLEDNET3

1606-XLSDNET4

1606-XLSDNET8

10000075774 (version 00)

PU-348.011.39-10A
