Encoder Driver Module
Instructions
3
Press Speed Pick–Up signals are connected as follows:
1. Only the channel A input is used, the HI signal is connected to AI2
channel (TB1–6).
2. Module outputs for the encoder 2 channel A output only are
connected directly to the RTP digital ref adapter PC Board
terminals.
Quadrature Encoder/ Multiple Inputs – Figure 2 depicts one quadrature
encoder (with 0 to 12 volt, 15 milliampere outputs) that will be used to
provide digital reference signals for four different drive inputs. Note that
in this application it is necessary to both provide burden resistors for the
outputs of the 12 volt encoder as well as voltage dividers to bring the input
signal level to a maximum of 5 volts.

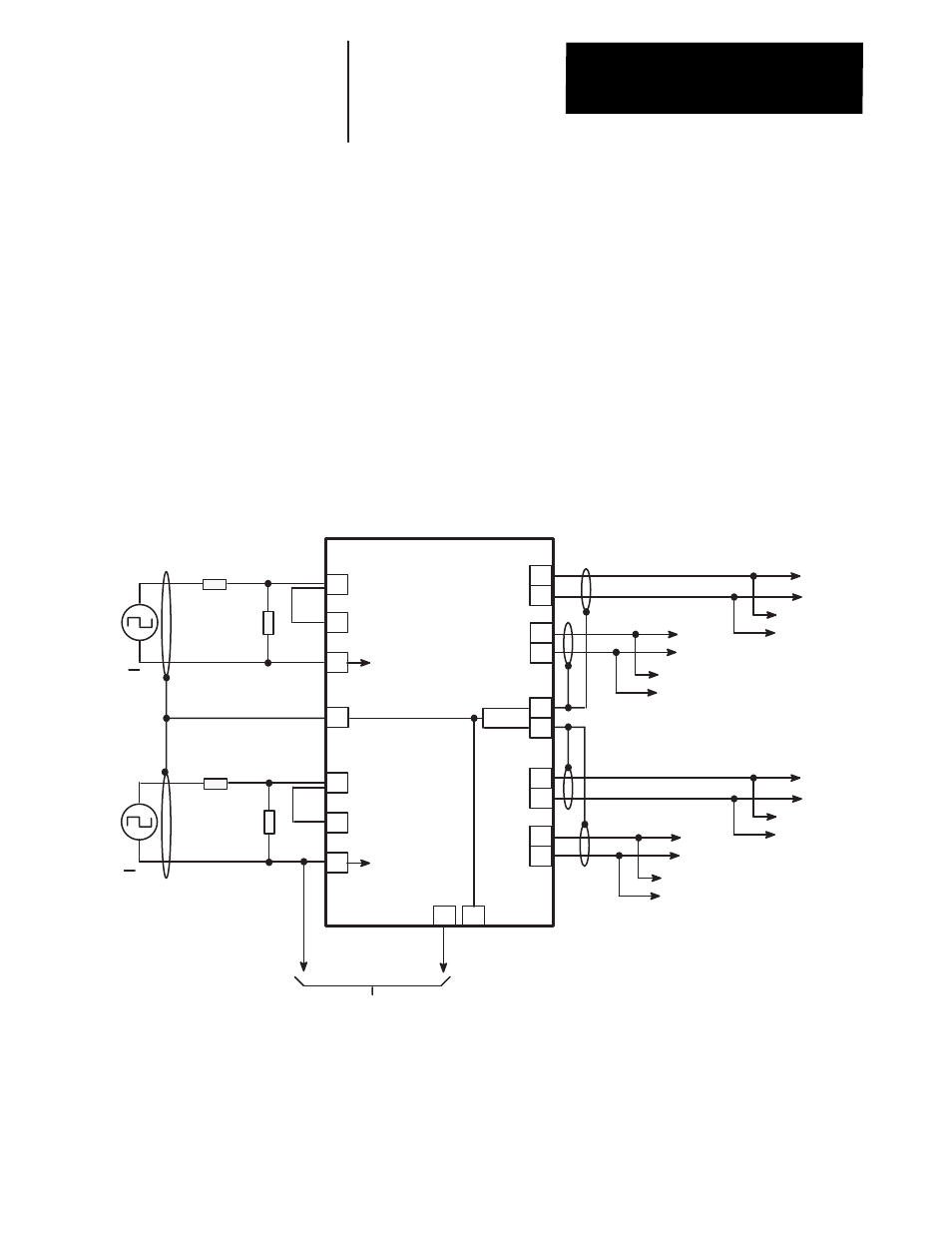

Figure 2.
Encoder Driver Module Multiple Input Application
TB1
TB2
Encoder Driver
Interface Module
1
2
3
4
5
7
9
10
1
6
AI1 To Drive 1
Common
6
8
AI2 3
AO1
NAO1
To Drive 2
BO1
NBO1
To Drive 3
To Drive 4
30 mA
30 mA
To Drive 1
To Drive 2
+
TB2
TB2
To Drive 3
To Drive 4
AO2
NAO2
BO2
NBO2
500
Ω
/ _watt
TB1
TB1
7
330
Ω
/ _watt
8
Common
BI2 4
2 BI1
–
To 12 – 24 VDC, at 250 milliamps minimum
Power Supply Output
5
9
330
Ω
/ _watt
500
Ω
/ _watt
Shield
0 to 12V
0 to 12V
CHA
CHB
B
B
A
A
Single Ended Input
Connections
Differential
Output
Note: Input AI1 Drives AO1, NA01 Outputs
Input BI1 Drives BO1, NB01 Outputs
