Rockwell Automation 1394-AM50_AM75 Replacing the 10 and 15 kW Axis Module User Manual
Page 2
Publication 1394-5.15 - September 1998
Replacing the 10 and 15 kW Axis Module Fan

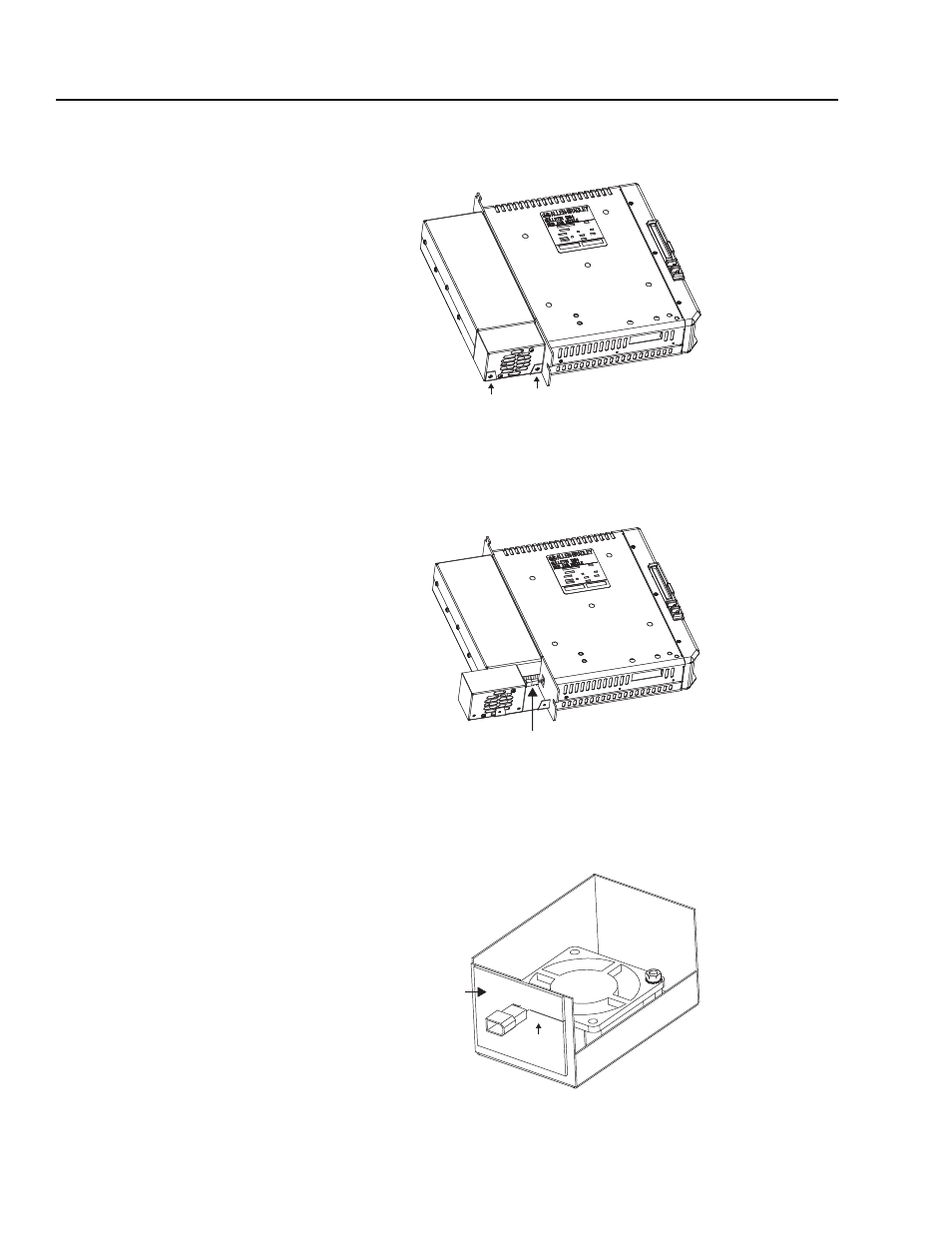

4. Remove the screws that hold the fan housing to the axis module.
Figure 2
Fan Housing Screws
5. Gently slide the fan housing out a short distance until you see the
fan plug.
Figure 3
Fan Plug
6. Unplug the fan housing from the axis module.
7. Locate the fan gasket that is attached to the fan housing.
Figure 4
Locating the Fan Gasket
8. Remove the fan gasket from the fan housing. Make sure you slide
the fan wires through the slit in the gasket.
Screw
Screw
Fan Plug
Fan Gasket
Slit
