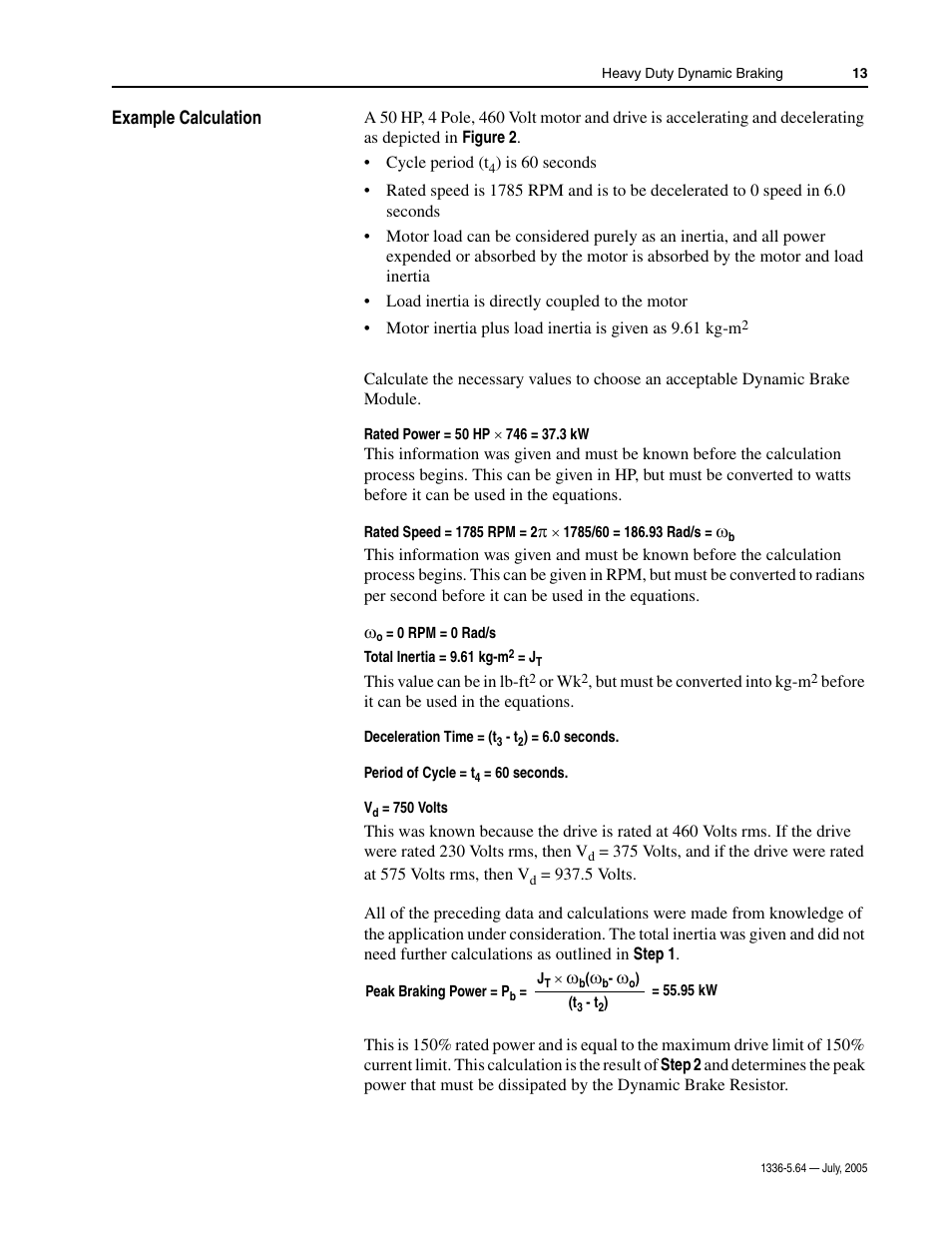

Example calculation – Rockwell Automation 1336_S_F_T Allen-Bradley Dynamic Braking User Manual
Page 13
