2 Rockwell Automation Publication 1606-RM035A-EN-P — April 2014

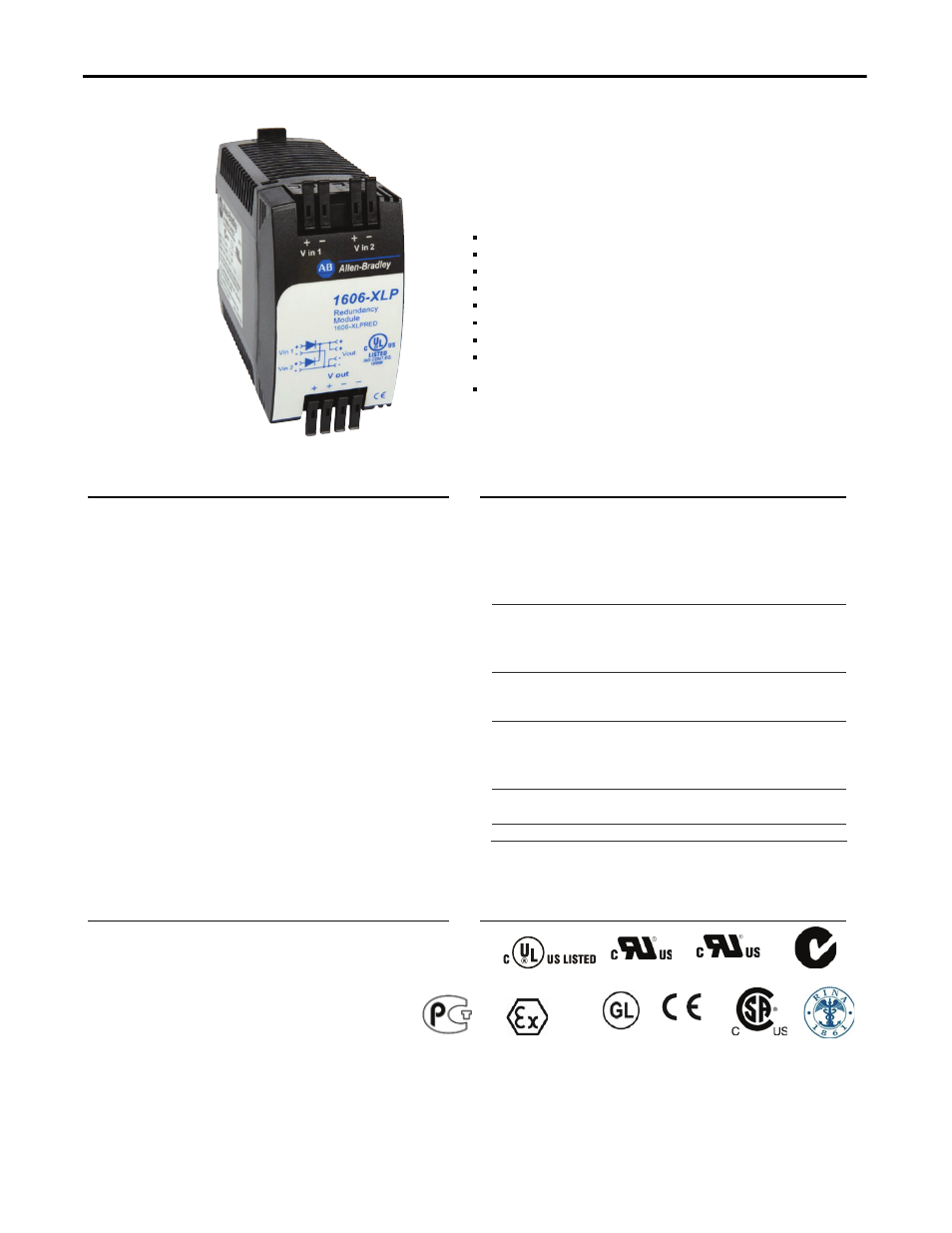

Bulletin 1606 Switched Mode Power Supplies
Redundancy Module
Cost Effective Solution to Build Redundant Systems
Dual Input with Single Output
Two Diodes (Common Cathode)
DC12-48V (120Vdc) ±25% Wide-range Input
Full Power Between -40°C and +60°C
Compact Design, Width only 45mm
Quick-connect Spring-clamp Terminals
Easy Wiring:
Distribution Terminal for Negative Pole Included
3 Year Warranty
Description
The 1606-XLPRED is a simple redundancy module that
you can use to build 1+1 and N+1 redundant systems.
It is equipped with two input channels, which can be
connected to power supplies with up to 5A
output current and one output, capable
of carrying
nominal currents up to 10A. The module is suitable for
power supplies with constant current overload behavior
as well as any kind of “Hiccup” overload behavior.
Unique quick-connect spring-clamp terminals allow for
a safe and fast installation and a large international
approval package for a variety of applications makes
this unit suitable for nearly every situation.
Specification Quick Reference
Input voltage
DC 12-48V ±25%
DC 12-120V ±25%
w/o restrictions
with restrictions
Input voltage
range 9-60Vdc
9-150Vdc w/o restrictions
with restrictions
Input current 2x 0-5A continuous
2x 0-8A for 5 seconds
Output current 0-10A continuous
10-16A for 5 seconds
<16A at cont. overload/
short circuit
Input to output
voltage drop typ. 0.8V
typ. 0.9V
typ. 0.9V input: 2x2.5A
input: 1x5A
input: 2x5A
Power losses typ. 0W at no load
typ. 4.0W input: 2x2.5A
typ. 4.5W input: 1x5A
typ. 9.0W input: 2x5A
Temperature range -40°C to +70°C operational,
Derating 0.25A/°C +60 to +70°C
Dimensions 45x75x91mm WxHxD
Catalog Numbers
Redundancy 1606-XLPRED 12-48V (120V)
Module Standard unit
Certifications
IND. CONT. EQ.
UL 508
UL 60950-1
ATEX
II 3G Ex nA IIC T4 Gc
Marine
EMC, LVD
UL Class 1 Div 2
C-Tick
Marine RINA GOST R
