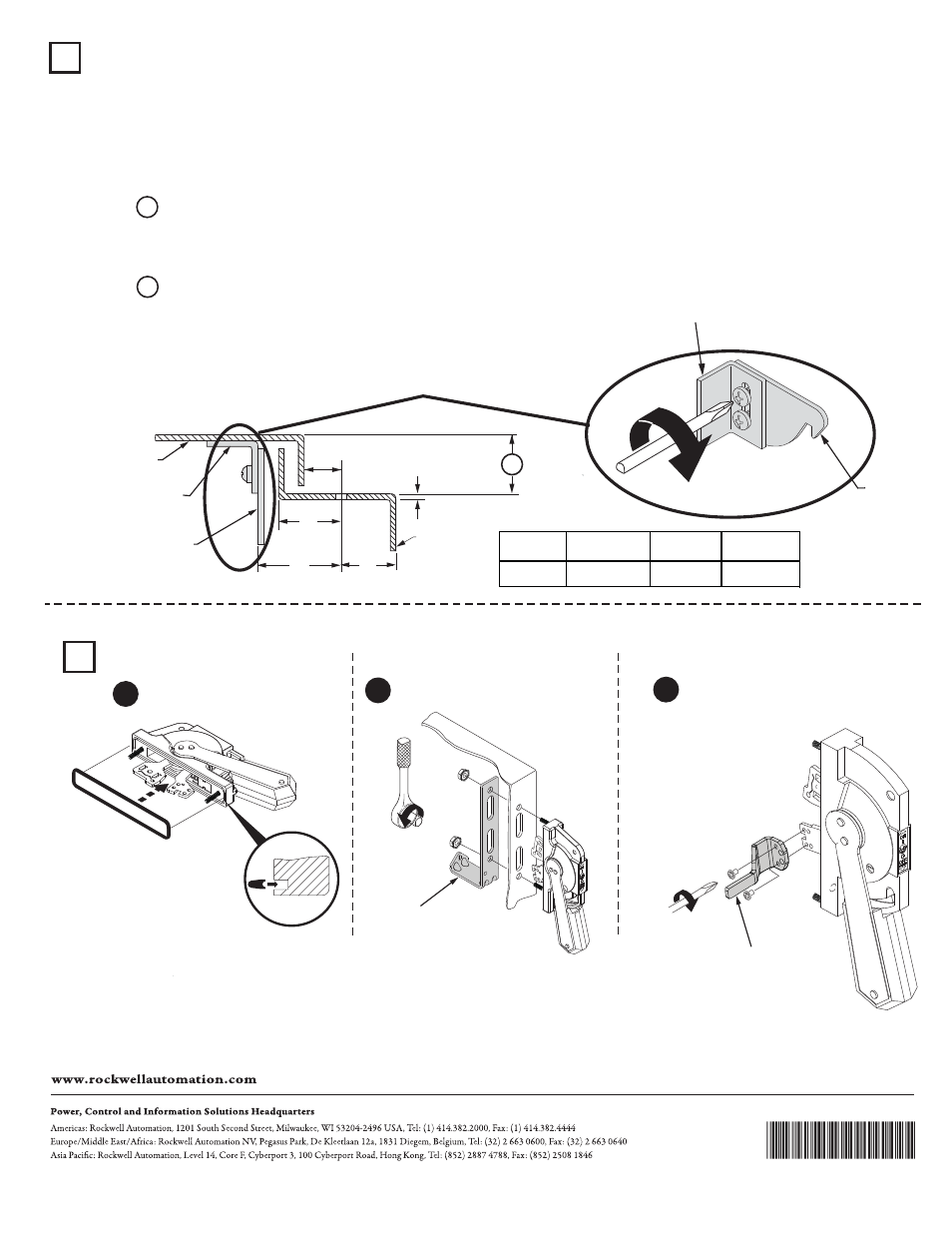

3 Handle Installation
1 2
Install GASKET
2
Locating and Installing Door Catch
C
B
Enclosure Door Flange
Thickness
E
D
Enclosure
Base
TOP VIEW
Door Catch
Mounting Bracket
Door Catch
B
(MIN)
C
(MAX) (MIN)
D
E
29/32” 1 -3/32” 1 -5/8” 5/8”
PN-251879
DIR 10001103125 (Version 00)
Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved. Printed in USA.
Publication 1494U-IN003A-EN-P - October 2014
Allen-Bradley, Rockwell Software, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page.
7-11 lb-in
3
Install DEFEATER LEVER 2
30-40 lb-in
Install SPRING BRACKET and HANDLE
SPRING BRACKET
7/16”
DEFEATER LEVER
#2
PHILLIPS
22 - 37 lb-in
Door Catch
Mounting Bracket
• Door Catch Mounting Bracket is provided with welding projections which can also be drilled out
and used as a guide for locating hole centers in enclosure door.
• Can be used as a template to drill corresponding holes in the enclosure door.
• User to supply the hardware for fastening the bracket.
• The bracket hardware must be inaccessible to unauthorized personnel.
• Fasteners must provide the degree of ingress protection for the environmental rating of the enclosure.
Dimension K (3/4" to 1")
• When using small disconnect handle kit only (1494U-HP1, -HM1 or -HS1), use door catch provided with handle kit.
• When using small disconnect handle kit and small door hardware kits (1494V-L1, -LL1, -L2 or -LL2),
use door catch provided with door hardware kit.
Dimension K (1-1/8" to 1-3/8")
• When using small disconnect handle kit only (1494U-HP1, -HM1 or -HS1),
use door catch (40492-080-02) which can be ordered from factory.
• When using small disconnect handle kit and large door hardware kits (1494V-L3 or -LL3),
use door catch provided with door hardware kit.
Door Catch
Top
K
#2 PHILLIPS
