Rockwell Automation 140U J-Frame Circuit Breaker Instruction Leaflet for Direct Rotary Handle Mechanism User Manual

Page 2

background image

Page 2

40752-022(1)

Effective 7/02

Printed in U.S.A.

/TQC

6

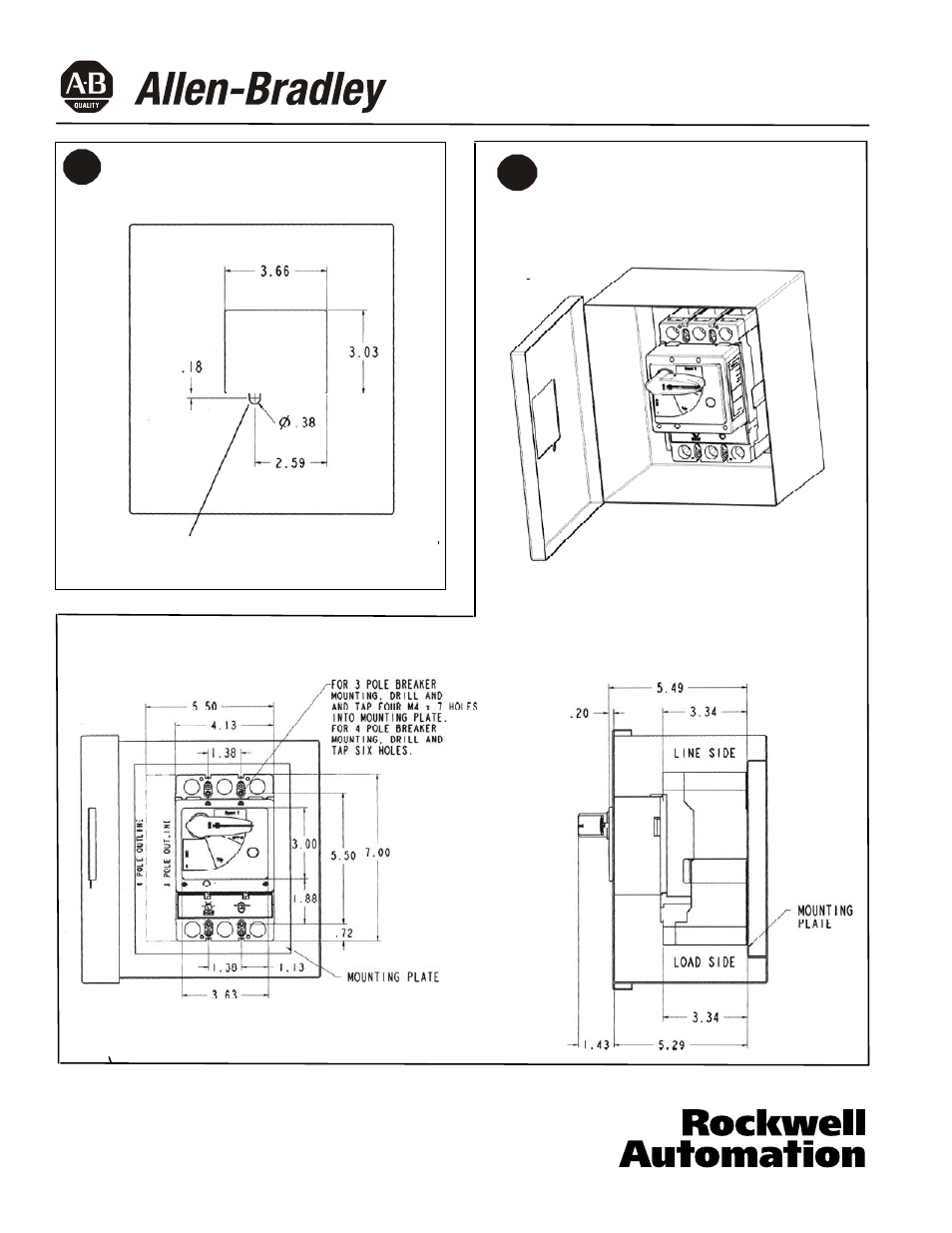

Cut panel to these dimensions.
For locations with respect to

breaker, see Fig. 7.

7

Notch for access to

push to trip is optional.
