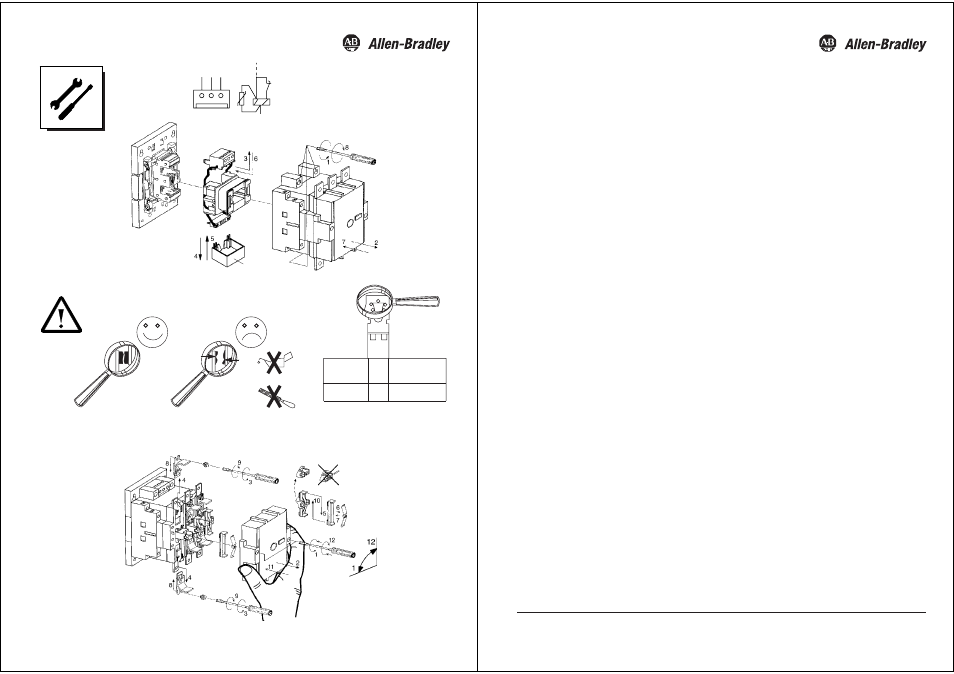

Rockwell Automation 300-DOx930_EOx930 Contactor User Manual
Page 3
5
T=3 Nm,
26 lb-in
100-DFSC
100-DFSV
No. 4,
Torx T20
T=3 Nm,
26 lb-in
T=3 Nm,
26 lb-in
No. 4,
Torx T20
90°
No. 4,
T orx T20
B1
A2
100-DS1-L11
A1
DC:
A1 B1 A2
Catalog No.
Nr.
2
300-D0 930
2
22.952.112-01
300-E0 930
44
22.952.114-01
☎
✉
*
*
Drawing #
6
Technical changes reserved
22.901.956-01 / 07. 2005
Edition 1
Auxiliary Contacts
Double Circuit (1 N.O. - 1 N.C.)
Catalog-No. 100-DS0-11
Double Circuit (1 N.O. - 1 N.C.)
Catalog-No. 100-DS1-11
Double Circuit (1 N.O. - 1 N.C.)
Catalog-No. 100-DS2-11
Double Circuit (2 N.O.)
Catalog-No. 100-DS0-20
Double Circuit (2 N.O.)
Catalog-No. 100-DS1-20
Double Circuit (2 N.O.)
Catalog-No. 100-DS2-20
Double Circuit (1 N.O. - 1 N.C. Late Break)
Catalog-No. 100-DS0-L11
Double Circuit (1 N.O. - 1 N.C. Late Break)
Catalog-No. 100-DS1-L11
Double Circuit (1 N.O. - 1 N.C. Low Power Switching)
Catalog-No. 100-DS0-B11
Double Circuit (1 N.O. - 1 N.C. Low Power Switching)
Catalog-No. 100-DS1-B11
Surge Surpressor (Varistor Module)
12 … 55V AC / 48 … 72V DC
Catalog-No. 100-DFSV55
56 … 136V AC
Catalog-No. 100-DFSV136
137 … 277V AC
Catalog-No. 100-DFSV277
278 … 600V AC
Catalog-No. 100-DFSV575
Surge Surpressor (RC Module)
21 … 48V 50Hz / 24 … 55V 60Hz
Catalog-No. 100-DFSC48
95 … 110V 50Hz / 110 … 127V 60Hz
Catalog-No. 100-DFSC110
180 … 277V 50Hz / 208 … 277V 60Hz
Catalog-No. 100-DFSC240
380 … 550V 50Hz / 440 … 600V 60Hz
Catalog-No. 100-DFSC550
Terminal Blocks
Size 3
Catalog-No. 100-DTB110
Size 4
Catalog-No. 100-DTB180
Terminal Lugs, Aluminium Frame
Size 3
Catalog-No. 100-DLA110
Size 4
Catalog-No. 100-DLA180
Terminal Lugs, Copper Frame
Size 3
Catalog-No. 100-DL110
Size 4
Catalog-No. 100-DL180
Control Circuit Terminal
Size 3 & 4
Catalog-No. 100-DAT1
Terminal Shields
Size 3
Catalog-No. 100-DTS110
Size 4
Catalog-No. 100-DTS180
Terminal Covers
Size 3 & 4
Catalog-No. 100-DTC180
Interlock (Mechanical only)
Size 3 & 4
Catalog-No. 100-DMA00
Interlock
Dual Electrical/Mechanical (2 N.C.)
Catalog-No. 100-DMD02
Mechanical only
Catalog-No. 100-DMD00
Dual Electrical/Mechanical (2 N.C.)1)
Catalog-No. 100-DMC02
Mechanical only 1)
Catalog-No. 100-DMC00
Connecting Components
Reversing: Input Connection for use with lugs 100-DL…
Catalog-No. 100-D180-VL
Reversing: Output Connection for use with lugs 100-DL…
Catalog-No. 100-D180-VT
Wye-Delta: Main-Delta connection for use with Terminal blocks 100-DTB…
Catalog-No. 100-D180-VLTB
Wye-Delta: Main-Delta connection for use with Terminal Blocks 100-DTB
…
Catalog-No. 100-D180-VTTB
Wye-Delta neutral bridge
Catalog-No. 100-D180VYU
Reversing kit for contactors using 100-DL lug kits
Catalog-No. 100-DPW180
Two-speed or changeover kit for contactors using 100-DL lug kits
Catalog-No. 100-D180-VL
Wye-Delta/Star-delta kit for contactors using 100-DL lug kits
Catalog-No. 100-DPY180
1) Provides interlocking between Bul. 300 NEMA sizes 0 - 2 and NEMA sizes 3 - 4.
Accessory Kits for Field Installation Bulletin 300-DO 930/300-EO 930
*
*
