Rockwell Automation 194R-R7_8 Operating Shaft - Manual (Page 2)

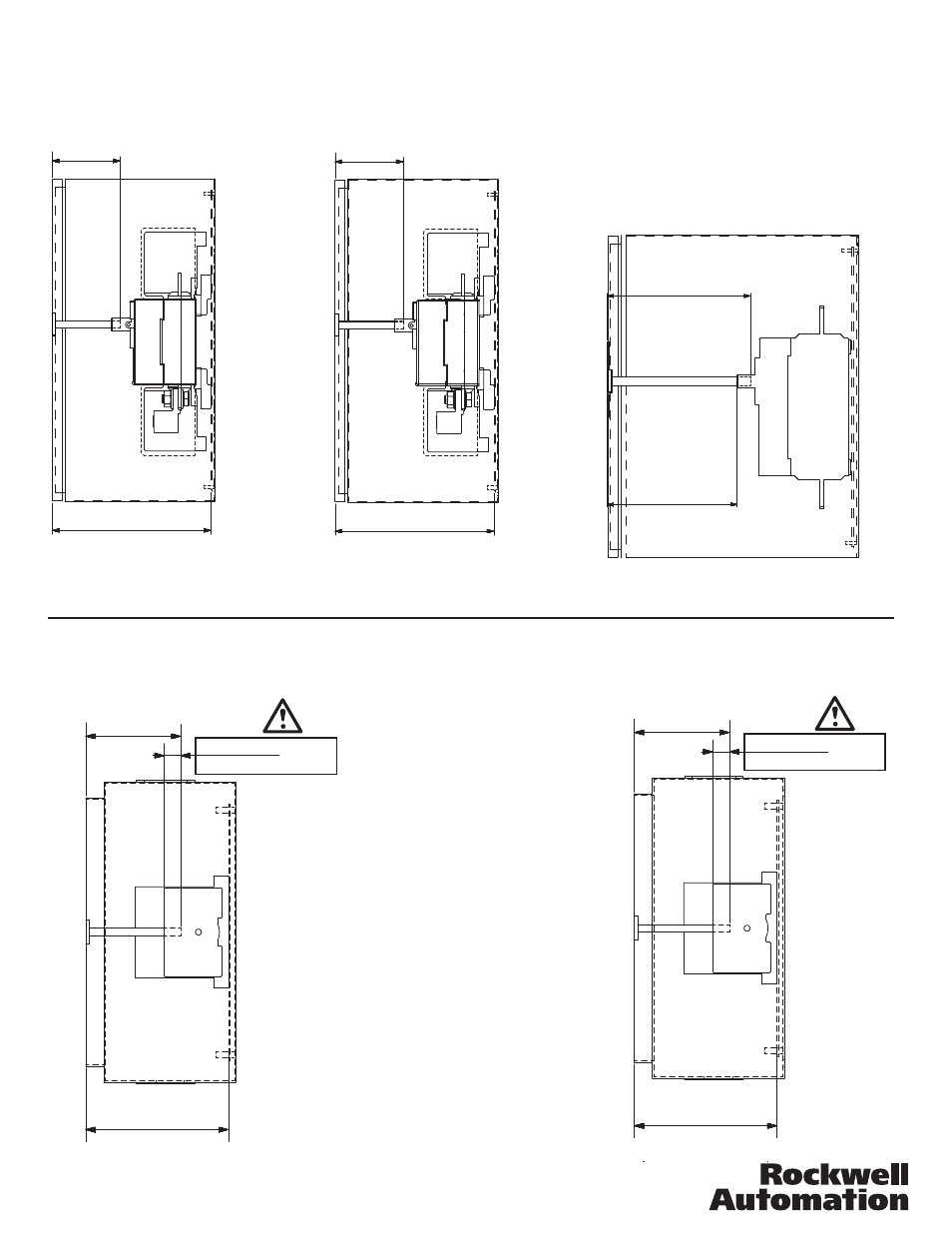

SHAFT LENGTH
FOR NON-FUSED DISCONNECT
L
Y
min. 0.78 in / 20 mm
max. 1.18 in / 30 mm
Y
L = Y - 2.95 ±0.04 in
L = Y - 75 ±1 mm
L = Y - 2.44 ±0.04 in
L = Y - 62 ±1 mm
L = Y - 3.70 ±0.04 in
L = Y - 94 ±1 mm
194R-NU100-175*
194R-NU200-175*
Y
L = Y - 4.25 ±0.04 in
L = Y - 108 ±1 mm
194R-NU400-175*
194R-NE-125-175*
194R-NE-160-175*
194R-NE-250-175*
194R-NE-400-175*
194R-NE-630-175*
194R-J400-1753
L
Y
min. 0.78 in / 20 mm
max. 1.18 in / 30 mm
194R-B160-1753
194R-B100-1753
194R-B200-1753
194R-B250-1753
194R-B400-1753
194R-D125-1753
194R-D160-1753
194R-D250-1753
194R-D400-1753
194R-J100-1753
194R-J200-1753
L
X
L = X + 1.65 ±0.04
in
L = X + 42 ±1
mm
SHAFT LENGTH
FOR FUSED DISCONNECT
PN-115193
DIR 10000231851 (Version 00)
