WARNING: Be careful when stripping wires. Wire fragments that fall into the module could cause damage at power up. Once wiring is complete, ensure the module is free of all metal fragments. For reliable
input signal processing, input wiring shall be routed in raceways separate from power cabling. For distances exceeding 200 M (656 Ft), the use of shielded cable is recommended.
Allen-Bradley, Rockwell Software, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.

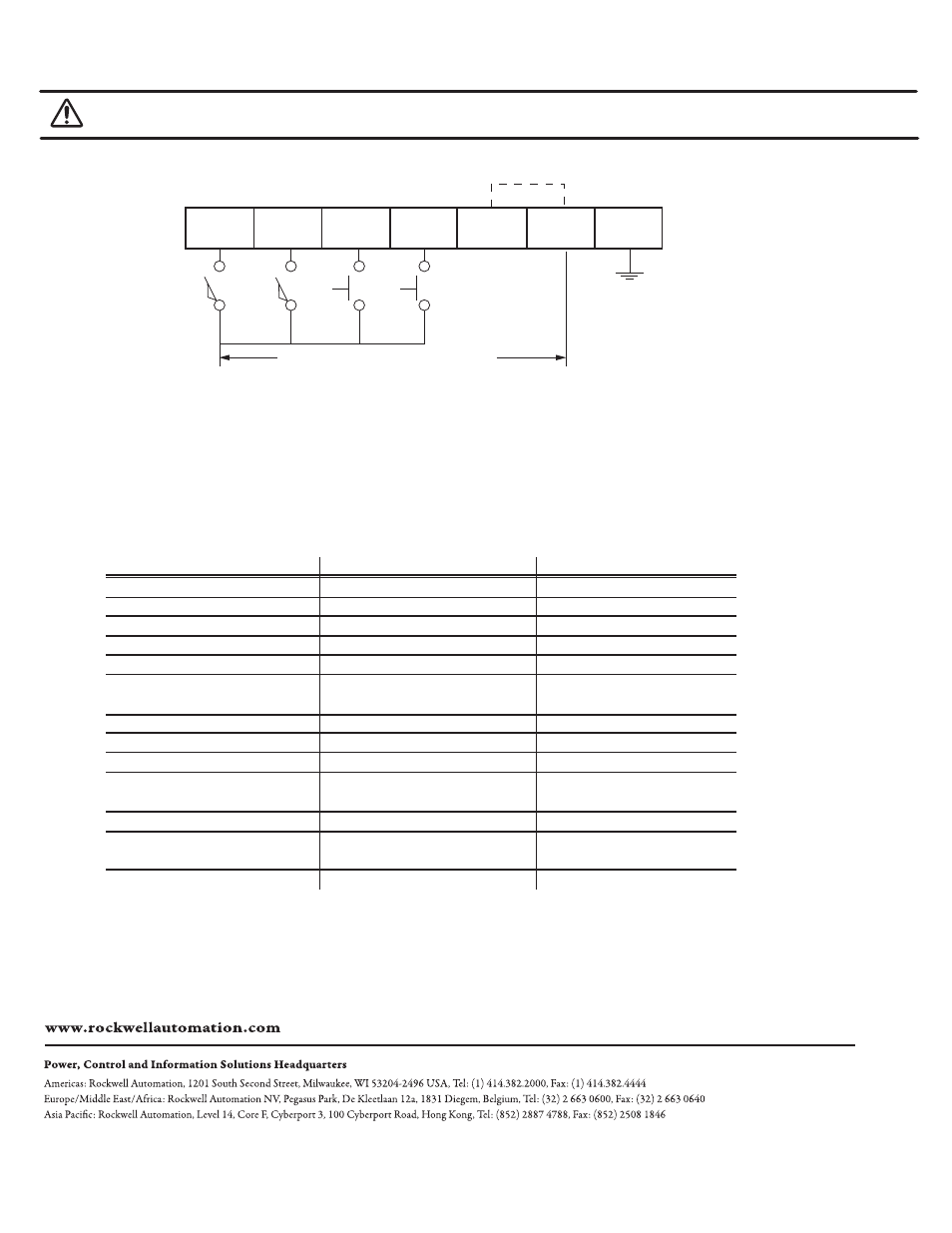

Wiring Diagram
Input Specifications
Basic wiring of input devices is shown below.
Commons are connected internally.
IN 1
1 2 3 4 5 6
IN 2 IN 3 IN 4 EGND
AC
COM
AC
COM
EIMD = 110/120 V ac 50/60 Hz
EIMD60 = 120 V ac 60 Hz L1 L2
Voltage Category
Catalog Number
110V / 120V ac
Operating Voltage Range 79V ac to 132V ac
Frequency Range 47 Hz to 63 Hz
Number of Inputs 4
Heat Dissipation 0.10 W per input
Signal Delay (max.)
On Delay: 30 ms
Off Delay: 30 ms
Off-State Voltage (max.) 20V ac
Off-State Current (max.) 1.0 mA
On-State Voltage (min.) 79V ac
On-State Current
2.0 mA at 79V ac (min.)
10.0 mA at 132V ac (max.)
Inrush Current (max.) 150 mA
Nominal Impedance
28k ohm at 50 Hz
21k ohm at 60 Hz
IEC Input Compatibility Type 1
120V ac
193-EIMD 193-EIMD60
79V ac to 132V ac
57 Hz to 63 Hz
4
0.10 W per input
On Delay: 30 ms
Off Delay: 30 ms
20V ac
1.0 mA
79V ac
2.0 mA at 79V ac (min.)
10.0 mA at 132V ac (max.)
150 mA
21k ohm at 60 Hz
Type 1
