Changing Direction of Actuation

The switch action of spring return, rotary actuated devices can be set to operate with clockwise only,
counterclockwise only or clockwise and counterclockwise shaft movement. To change the direction of
actuation, loosen the four head mounting screws and remove the operating head from the switch
body. Locate the plunger on the underside of the operating head. Pull it outward and rotate it in steps
of 90

o

to provide the operating mode desired. The respective settings are shown in Figure 4. Make

sure the plunger is pushed back inward before the operating head is reattached to the switch body.
Securely retighten (approx. 11 in-lbs.) the operating head mounting screws. Check for desired
actuation mode.

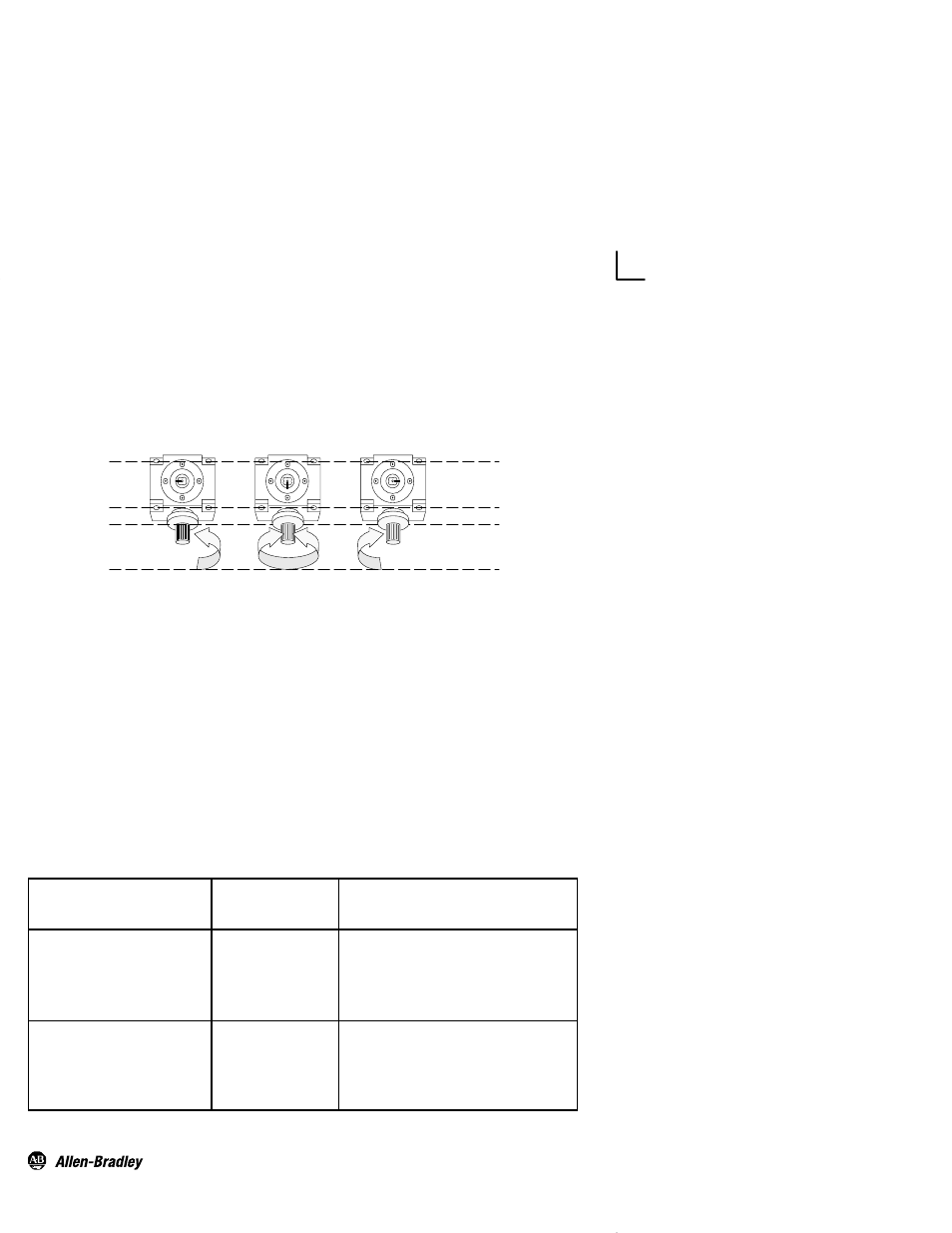

Figure 4

CCW Only

Actuation

Required

Plunger

Setting

CW and CCW

CW Only

Renewal Parts

The switch body or operating head may be ordered as a renewal part. Order by catalog number and
series letter as it appears on the nameplate of that part. Make sure rubber sealing ring, provided with
switch body, is properly installed between switch body and operating head.

General Data

2ĆCircuit

Electrical Ratings:

NEMA R300 with Cable.

NEMA R150 with MiniĆType Receptacle Option.

24VDC with LF or LC Indicating light option

Enclosure Types:
Bulletin 802M (Standard)

1, 4, 6P, 13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bulletin 802MC (Corrosion Resistant)

1, 4, 4X, 6P, 13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating Temperature

32

_

F to + 180

_

F (– 0

_

C to + 82.2

_

C)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage Temperature

– 40

_

F to + 180

_

F (– 40

_

C to + 82.2

_

C)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Note: Temperature range below + 32

_

F is based on the absence of freezing moisture or water.

Interchangeability

The following limit switch body only

catalog numbers:

With or without any of the

following suffix letters

May be used in combination with any of the

following factory or field installed operating head

catalog numbers

802M-XY5

thru 802M-XY99

802M-XZY5

ąthru 802M-XZY99

802M-XZJ1

ąthru 802M-XZJ9

LF

LC

L1F

L1C

802M-AX

802M-CX

802M-A1X

802M-CAX

802M-A2X

802M-DX

802M-AMX

802M-HX

802M-BX

802M-H2X

802M-BAX

802M-KX

802MC-XY5

thru 802MC-XY99

802MC-XZ5

ąthru 802MC-XZY99

802MC-XZJ

thru 802MC-XZJ9

LF

LC

L1F

L1C

802MC-AX

802MC-A1X

802MC-A2X

40060-358-01 (K)

August 2001

Printed in U.S.A.
