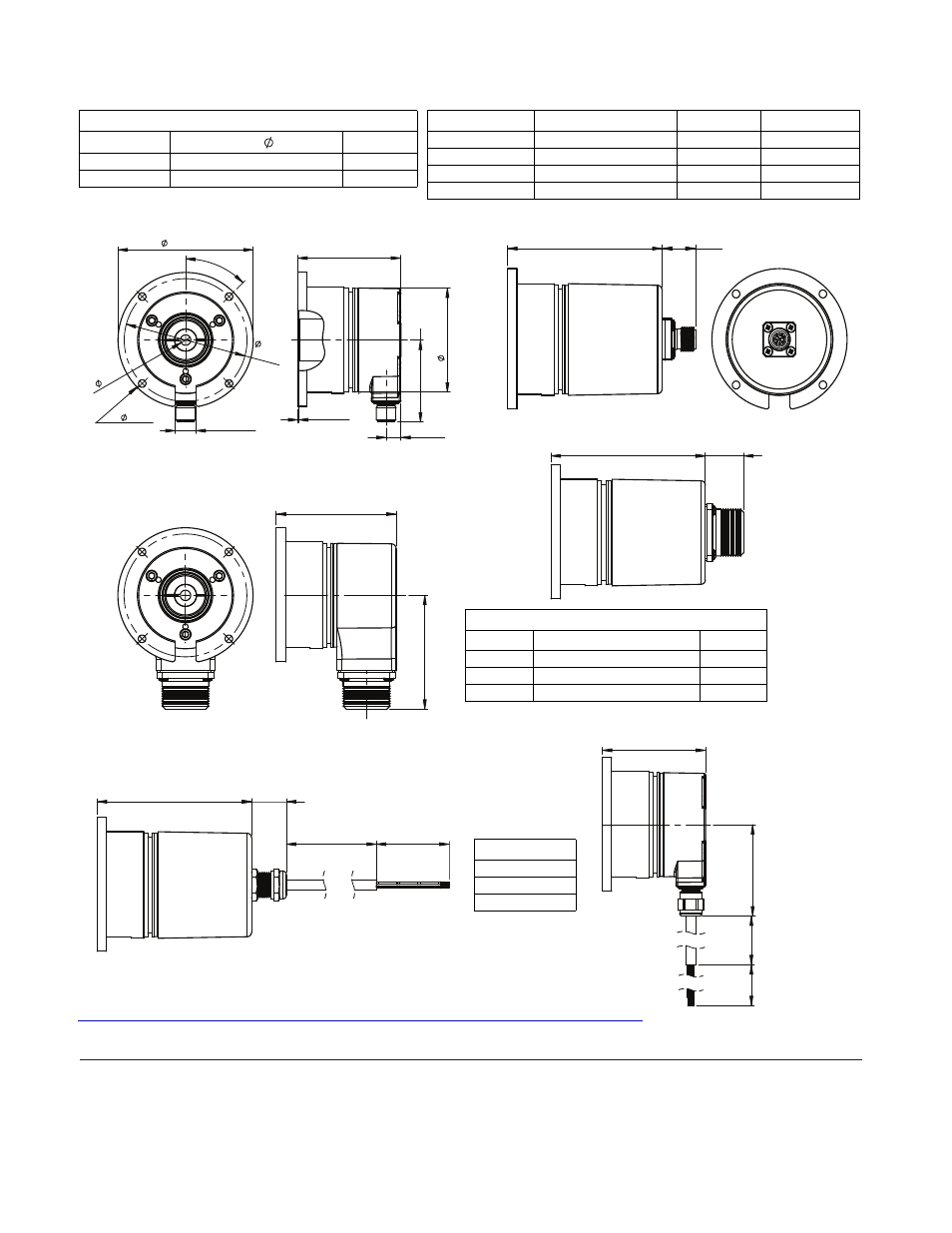

Physical Dimensions [mm (in.)]
12.7 (0.50)
75.0
(2.95)
45.0°
A
82.6 (3.25)
50.0 (1.97)
9.0 (0.35)
0.5 (0.02)
63.5 (2.50)
E
4 x 4.6 (0.18)
C
G
D
F
F
21.3
(0.84)
50.0 (1.97)
per part no.
per
part no.
50.0 (1.97)
55.7 (2.19)
E
Standard/high performance with radial M12 connector
Standard/high performance with radial MS connector
Standard/high performance with axial MS connector
Standard/high performance with axial cable
Standard/high performance with radial cable
F
18.9
(0.75)
Standard/high performance with axial M12 connector
through
evenly spaced
Cable options
1.5 m (4.9 ft)
5 m (16.4 ft)
10 m (32.8 ft)
Shaft dimensions
Nominal, in.
Shaft
A
Bore depth
1/4
6.35/6.43(0.250/0.253)
12.7 (0.50)
3/8
9.53/9.61 (0.375/0.378)
12.7 (0.50)
Part no.
E
F
G
847H-FB**-*******
63.0 (2.48)
94.2 (3.71)
73.2 (2.88)
847H-FE**-*******
63.0 (2.48)
94.2 (3.71)
73.2(2.88)
847H-FF**-*******
74.8 (2.94)
106.0 (4.17)
85.0 (3.35)
847H-FG**-*******
74.8 (2.94)
106.0 (4.17)
85.0 (3.35)
MS connector dimensions
Type
C
D
6-pin
63.9 [2.5 2]
17.8 [0.70]
7-pin
63.9 [2.5 2]
17.8 [0.70]
10-pin
69.4 [2.7 3]
23.4 [0.92]
