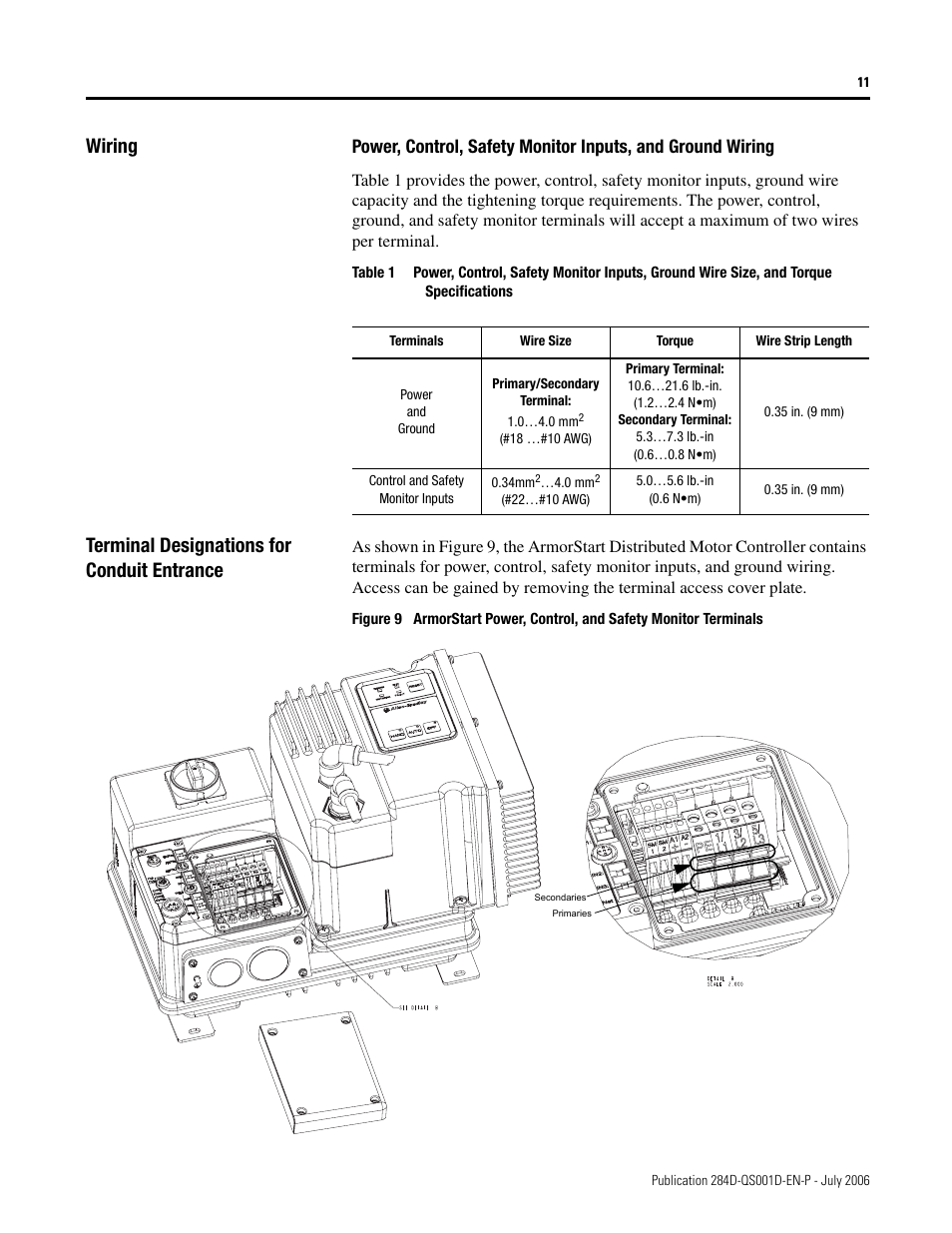

Wiring, Terminal designations for conduit entrance – Rockwell Automation 284D ArmorStart - Getting Started User Manual
Page 11
