Filter Capacitor Replacement Kit SK-L1-CAP2-D650 for PowerFlex 700L Frame 3A 480V AC Drives

What You Need To Do

To install the filter capacitor assembly replacement kit you need to:

Step 1: Disconnect and lock out input power at the branch circuit.

Step 2: Turn off the drive enclosure circuit breaker.

Step 3: Verify that DC bus capacitors are discharged.

Step 4: Prepare for the replacement.

Step 5: Remove the existing filter capacitor assembly.

Step 6: Install the new filter capacitor assembly.

Step 7: Power up the drive and filter capacitor assembly replacement.

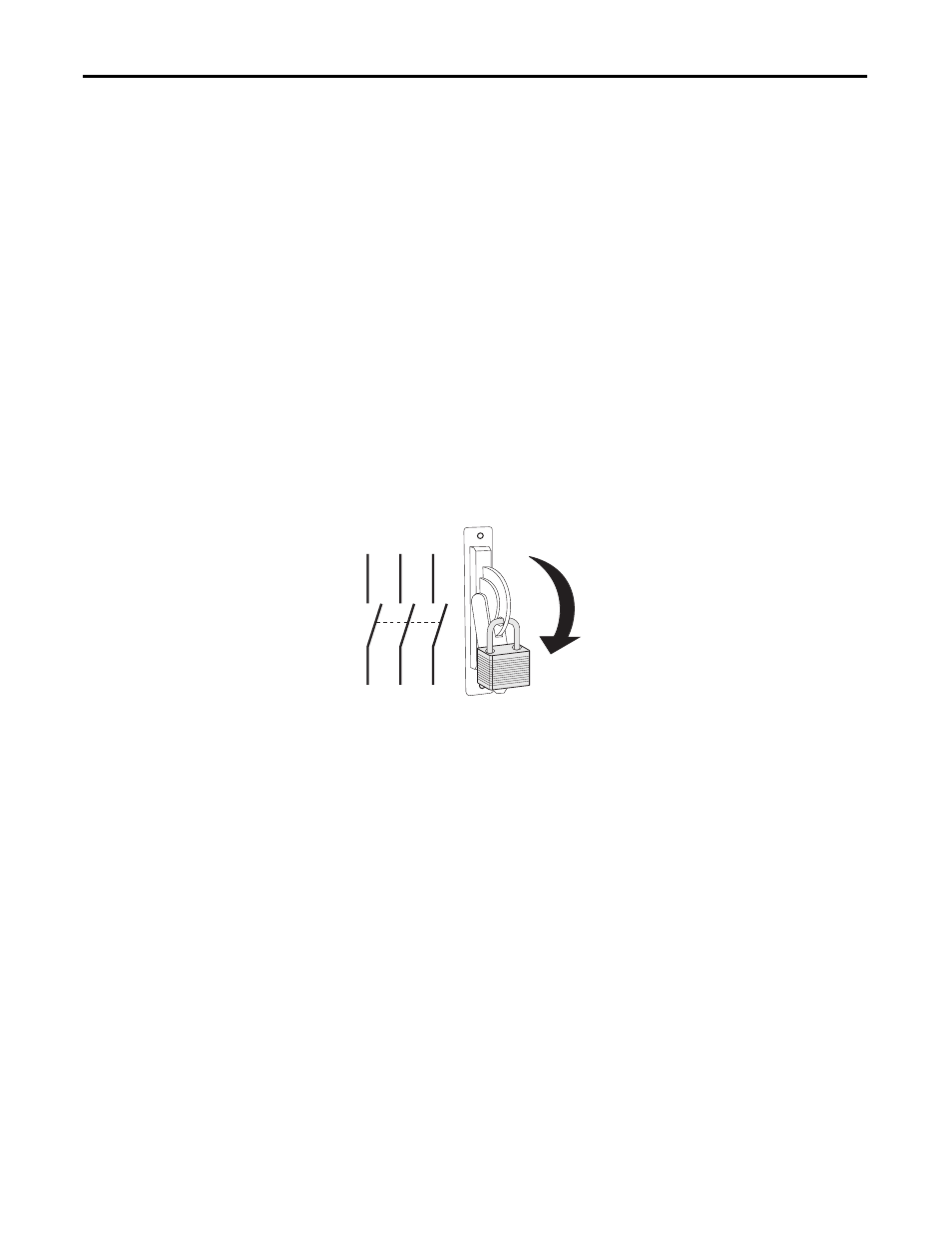

Step 1: Disconnect and Lock

Out Input Power at
the Branch Circuit

Disconnect input power upstream of the drive assembly enclosure. Follow
required safety procedures to turn off and lock out input power during the repair.

Step 2: Turn Off the Drive

Enclosure Circuit
Breaker

Turn off the drive enclosure circuit breaker and open the drive enclosure
door.
