Dimensions [mm (in.)] wiring diagrams, Mounting [mm (in.), Teach interface – Rockwell Automation 45LUM-D7JPT1-D5 Luminescence Sensor User Manual
Page 2: How to teach the sensor

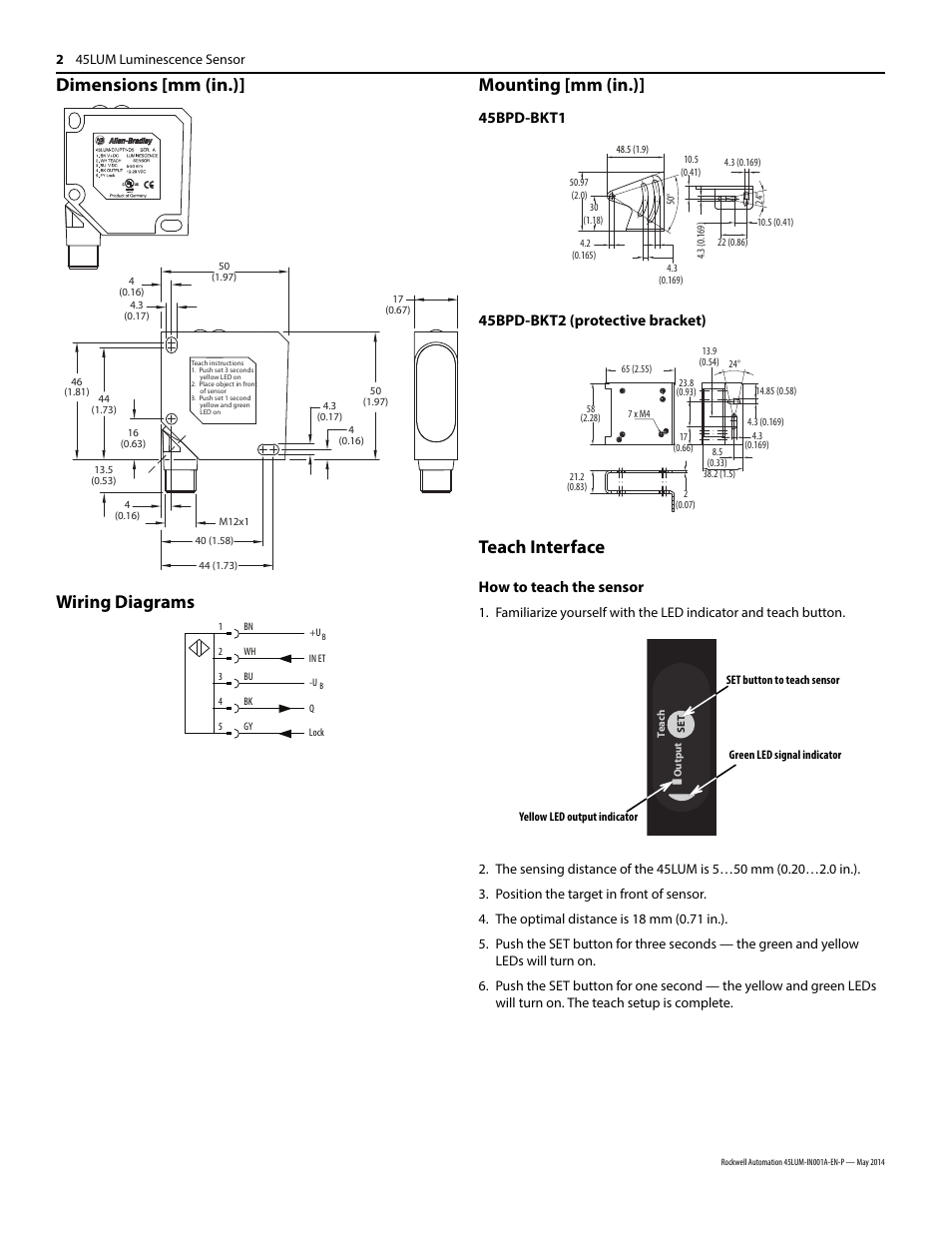

![Dimensions [mm (in.)] wiring diagrams, Mounting [mm (in.), Teach interface | How to teach the sensor | Rockwell Automation 45LUM-D7JPT1-D5 Luminescence Sensor User Manual | Page 2 / 4](/screens/594336/2.png)
