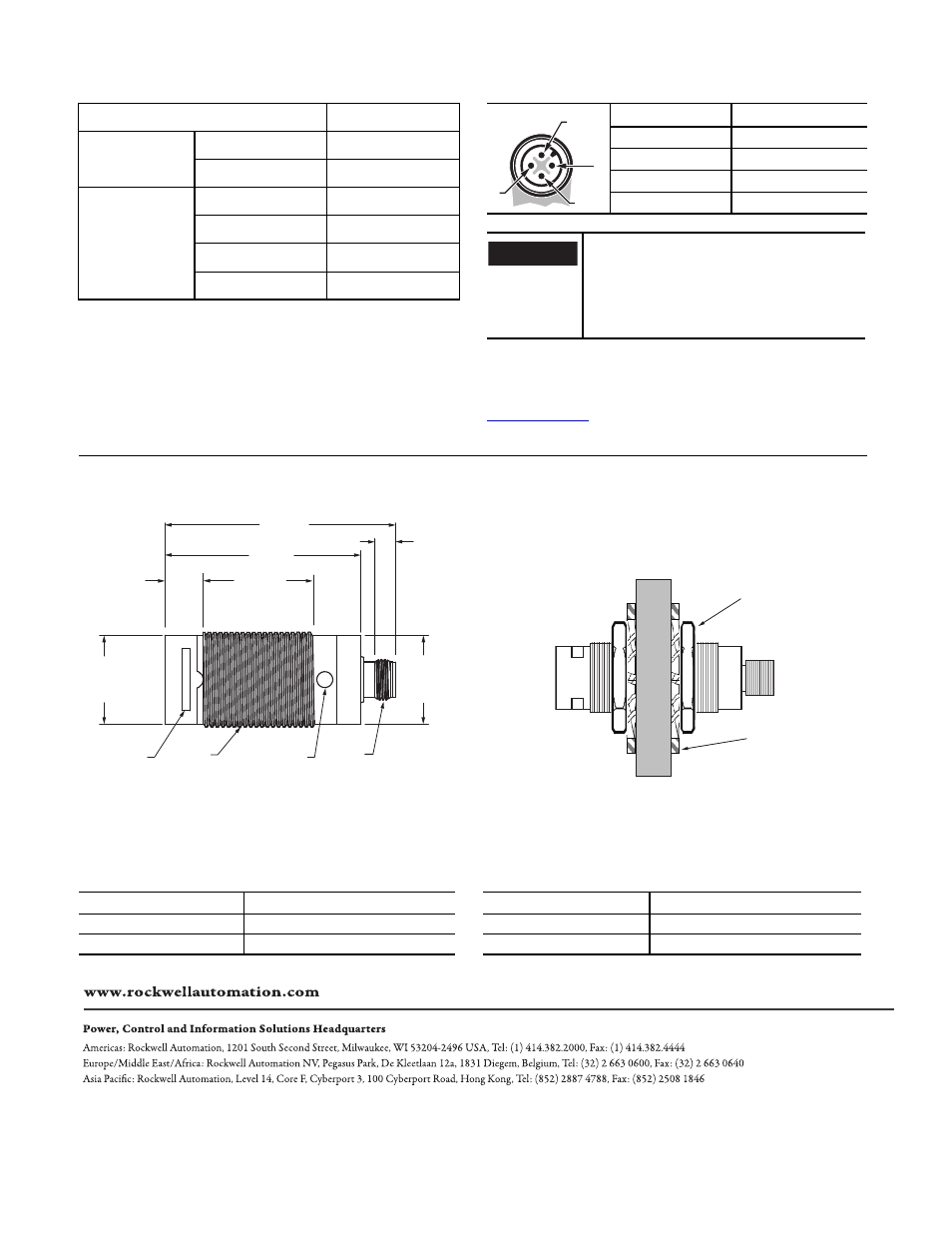

LED Illumination Pattern
Connector Pinout
Frequently Asked Questions
Reference the product manuals for more specific installation
and configuration information. Manuals are available at
.
LED Display
Content
Module Status
LED
Green light
Power ON
No illumination
No power
Read/Write
LED
Green light
Normal operation
Solid green
Communicating
Solid amber
Sensing tag
Flashing red
Communication error
Pin
Signal
1
24V DC
2
Data +
3
GND
4
Data –
Installation of Allen-Bradley products should
be in accordance with local and/or national
codes. Servicing energized industrial control
equipment can be hazardous if not in
accordance to recommended safety
procedures.
4
3
1
2
IMPORTANT
73 (2.9)
63 (2.5)
12.2
(0.48)
35.8 (1.41)
7
(0.28)
M30x1.5
M12x1
28
(1.10)
dia
28
(1.10)
dia
Read/Write
Status LED
Module
Status LED
Approximate Dimensions [mm (in.)]
Dimensions are not intended to be used for installation purposes.
Torque mounting nuts to 33.9N-m (25 ft-lb).
Nuts and washers included
Nut
Washer
Tightening Torque
Mounting Brackets
Replacement Nuts and Washers
Description Cat.
No.
Swivel/tilt style
60-2439
Right angle style
871A-BRN30
Description Cat.
No.
Nut 871C-N4
Washer 871A-LWN30
