PowerFlex® DC Drive - Frame C Bimetal Thermostat
7
Remove the Bus Bars from a Regenerative Drive

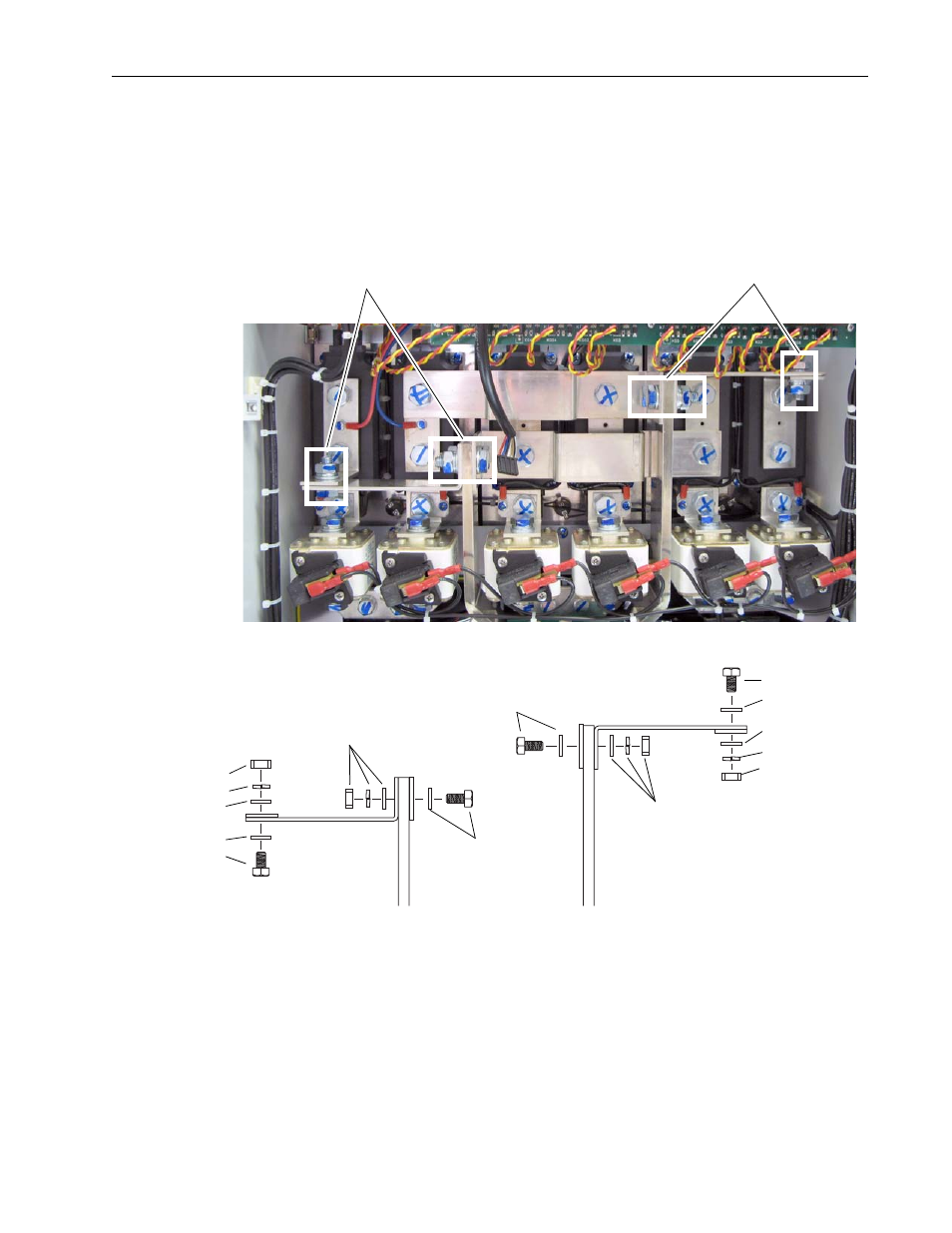

6. Remove the six bolts and corresponding washers that secure the
intermediate bus bars to the U and W phase AC input and DC output
(terminals C and D) bus bars. Note the size and location of the bolts and
the order in which the washers are placed on the bolts.
Remove bolts
and washers
Remove bolts
and washers
Nut
Lock washer
Flat washer
Flat washer
Bolt (30mm long)
Bolt (30mm long)
Flat washer
Flat washer
Lock washer
Nut
Left to right, two (2) bolts
(40mm long) and flat washers
Left to right, two
(2) nuts, lock
washers and flat
washers
Left to right, two (2)
flat washers, lock
washers and nuts
Bolt Size and Washer Order
Left to right, two (2)
flat washers and
bolts (40mm long)
