Rockwell Automation 20L PowerFlex 700L Frame 2 Common Mode Choke Kit User Manual
Page 2

2
PowerFlex® 700L Frame 2 Common Mode Choke Kit
3. Remove the cover of the drive. Loosen the five (5) captive screws and
pull the cover off the drive. Set the cover aside to be reinstalled later.
4. Measure the DC bus voltage at the DC+ TESTPOINT and DC-
TESTPOINT sockets on the front of the power module chassis. The
voltage must be zero.
5. Mount the choke assembly for the motor output on a metal surface near
the top left of the drive using M8 hardware. Leave sufficient clearance
between the choke assembly and the drive terminals to allow access to
the terminals and provide proper bend radius for the leads.
6. Terminate the motor leads at the U/T1, V/T2, and W/T3 connections on
the motor as shown in
Figure 1
. A properly sized ground conductor from
the motor frame is also required. The ground conductor is routed around
(not through) the choke assembly and connected to the drive’s PE earth
ground terminal.
7. Run the motor leads straight through the choke assembly (
) and
terminate at the drive’s U/T1, V/T2, and W/T3 terminals. Note: When
using multiple conductors for each phase, pass all conductors through
the same choke assembly.

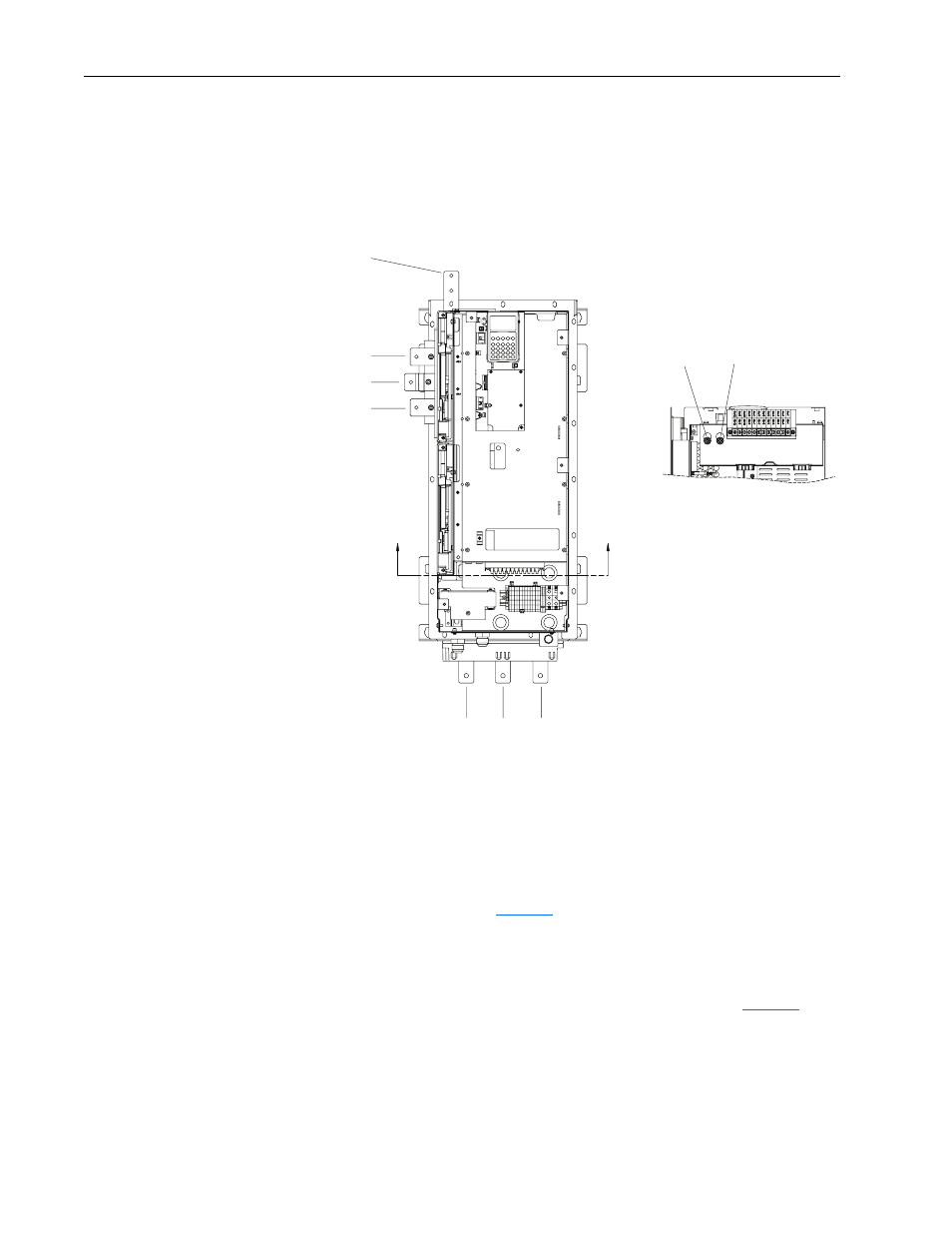

A
A
Section A-A
W/T3
PE
DC+
Testpoint
DC-
Testpoint
V/T2
U/T1
T/L3
S/L2
R/L1
