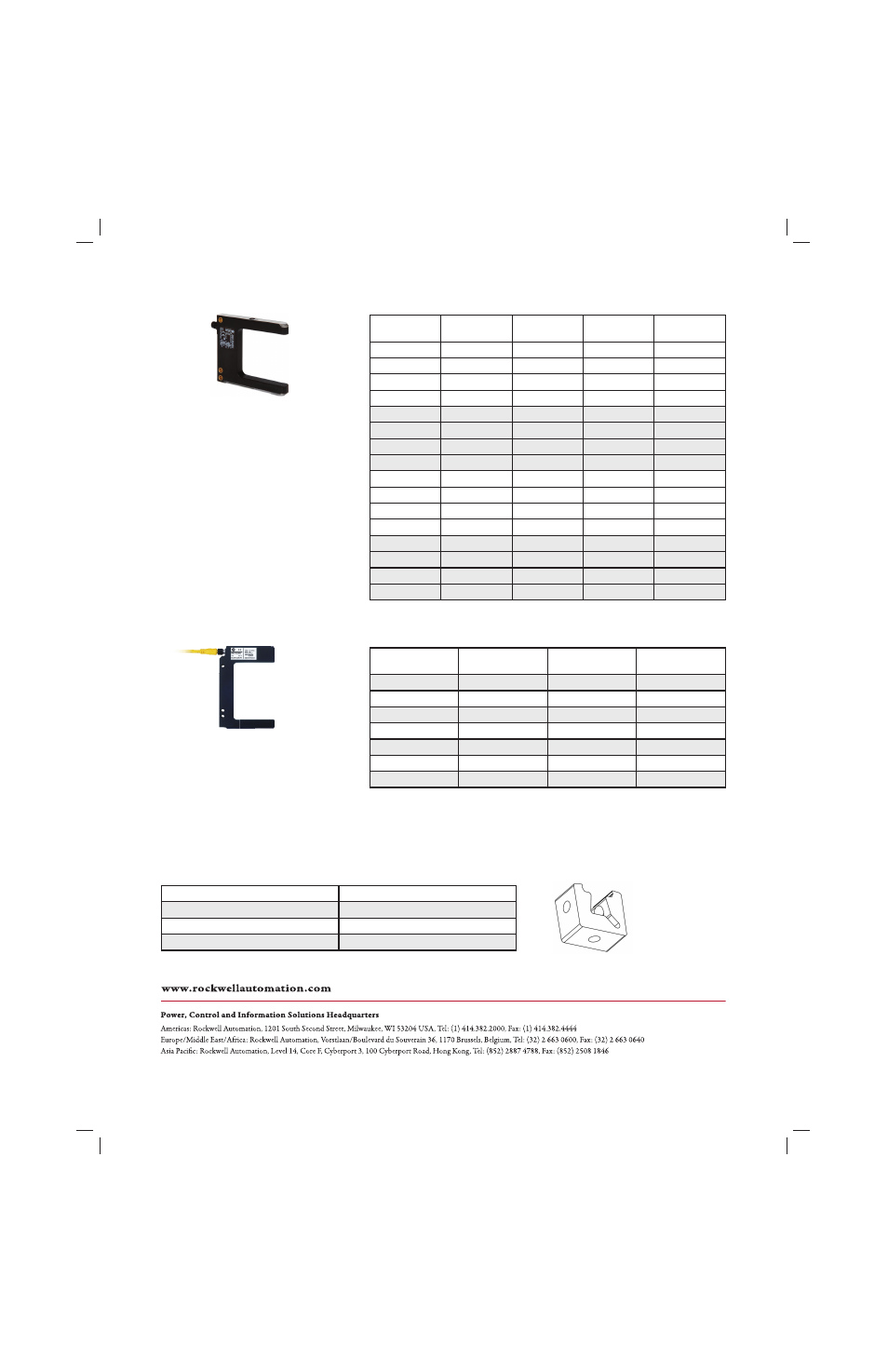

45LSP Plastic Fork Sensor – General Ordering Information
45LST Metal Fork Sensor – General Ordering Information
Cordsets and Accessories Dovetail Mounting Bracket
Publication 45LSP-PP001A-EN-P – February 2009 Copyright ©2009 Rockwell Automation, Inc. All Rights Reserved. Printed in USA.
Sensing Gap
mm (in.)
Gap Depth
mm (in.)
Output Type
Connection
Type
Catalog
Number
30 (1.18) 34 (1.34) PNP 3-pin Pico QD 45LSP-2LPA1-P3
30 (1.18) 34 (1.34) NPN 3-pin Pico QD 45LSP-2LNA1-P3
30 (1.18) 34 (1.34) PNP 4-pin Pico QD 45LSP-2LPA1-P4
30 (1.18) 34 (1.34) NPN 4-pin Pico QD 45LSP-2LNA1-P4
50 (1.96) 54 (2.13) PNP 3-pin Pico QD 45LSP-2LPA2-P3
50 (1.96) 54 (2.13) NPN 3-pin Pico QD 45LSP-2LNA2-P3
50 (1.96) 54 (2.13) PNP 4-pin Pico QD 45LSP-2LPA2-P4
50 (1.96) 54 (2.13) NPN 4-pin Pico QD 45LSP-2LNA2-P4
80 (3.15) 54 (2.13) PNP 3-pin Pico QD 45LSP-2LPA3-P3
80 (3.15) 54 (2.13) NPN 3-pin Pico QD 45LSP-2LNA3-P3
80 (3.15) 54 (2.13) PNP 4-pin Pico QD 45LSP-2LPA3-P4
80 (3.15) 54 (2.13) NPN 4-pin Pico QD 45LSP-2LNA3-P4
120 (4.72) 54 (2.13) PNP 3-pin Pico QD 45LSP-2LPA4-P3
120 (4.72) 54 (2.13) NPN 3-pin Pico QD 45LSP-2LNA4-P3
120 (4.72) 54 (2.13) PNP 4-pin Pico QD 45LSP-2LPA4-P4
120 (4.72) 54 (2.13) NPN 4-pin Pico QD 45LSP-2LNA4-P4
Sensing Gap
mm (in.)
Gap Depth
mm (in.)
Response Time Catalog Number
2 (0.08) 40 (1.57) 30 μs 45LST-1LEA1-P4
15 (0.59) 40 (1.57) 1 ms 45LST-1LEA2-P4
30 (1.18) 40 (1.57) 1 ms 45LST-1LEA3-P4
50 (1.96) 57 (2.24) 1 ms 45LST-1LEA4-P4
80 (3.15) 57 (2.24) 1 ms 45LST-1LEA5-P4
120 (4.72) 57 (2.24) 1 ms 45LST-1LEA6-P4
225 (8.86) 60 (2.36) 1 ms 45LST-1LEA7-P4
Description Catalog Number
2 m (6.5 ft) 3-pin DC pico QD 889P-F3AB-2
2 m (6.5 ft) 4-pin DC pico QD 889P-F4AB-2
Dovetail mounting bracket 44B-BKT
10…30V DC operation •
Detection of objects as small as 0.2 mm •
(0.0078 in).
Fast 250 μs response time
•
Power and output status LED indicators •
Multiple LEDs along both sides of the fork make •
output status highly visible from every angle
Remote teach and teach button lock on 4-pin
•
models via wiring.
Selectable L.O./D.O.
•
Dynamic teach capability •
Multiple mounting options: thru-holes, •
threaded-holes and dovetail
IP67 polycarbonate housing
•
3 and 4-pin pico (M8) QD models •
cULus Listed and CE Marked for all •
applicable directives
10…30V DC operation •
Power and output status LED indicators •
Sensitivity adjustment potentiometer •
Selectable PNP/NPN output •
Selectable L.O./D.O. •
4-pin pico (M8) QD connector •
Industrial anodized aluminum housing, IP65 •
cULus Listed and CE Marked for all •
applicable directives
