Manually trip the breaker prior to any

adjustment of the magnetic trip settings.
E’obbligatorio mettere l'interruttore in

posizione Trip test prima di regolare il

termomagnetico.
Der Leistungsschalter muss vor Einstellung

des thermomagnetischen Auslösers

zwingend in die Prüfstellung geschaltet

werden.
Il est obligatoire de mettre le disjoncteur en

position de Test de Déclenchement avant de

régler le déclencheur magnétothermique.
Es obligatorio situar el interruptor en

posición “Test de Disparo” antes de realizar

el ajuste del relé termomagnético.

5

6

Ith

(40°)

Ith=800 A

Im

MAX

800

MED

MIN

8000

MAX

6000

MED

4000

560

MIN

680

MED

MIN

MAX

MED

MIN

MAX

CLACK

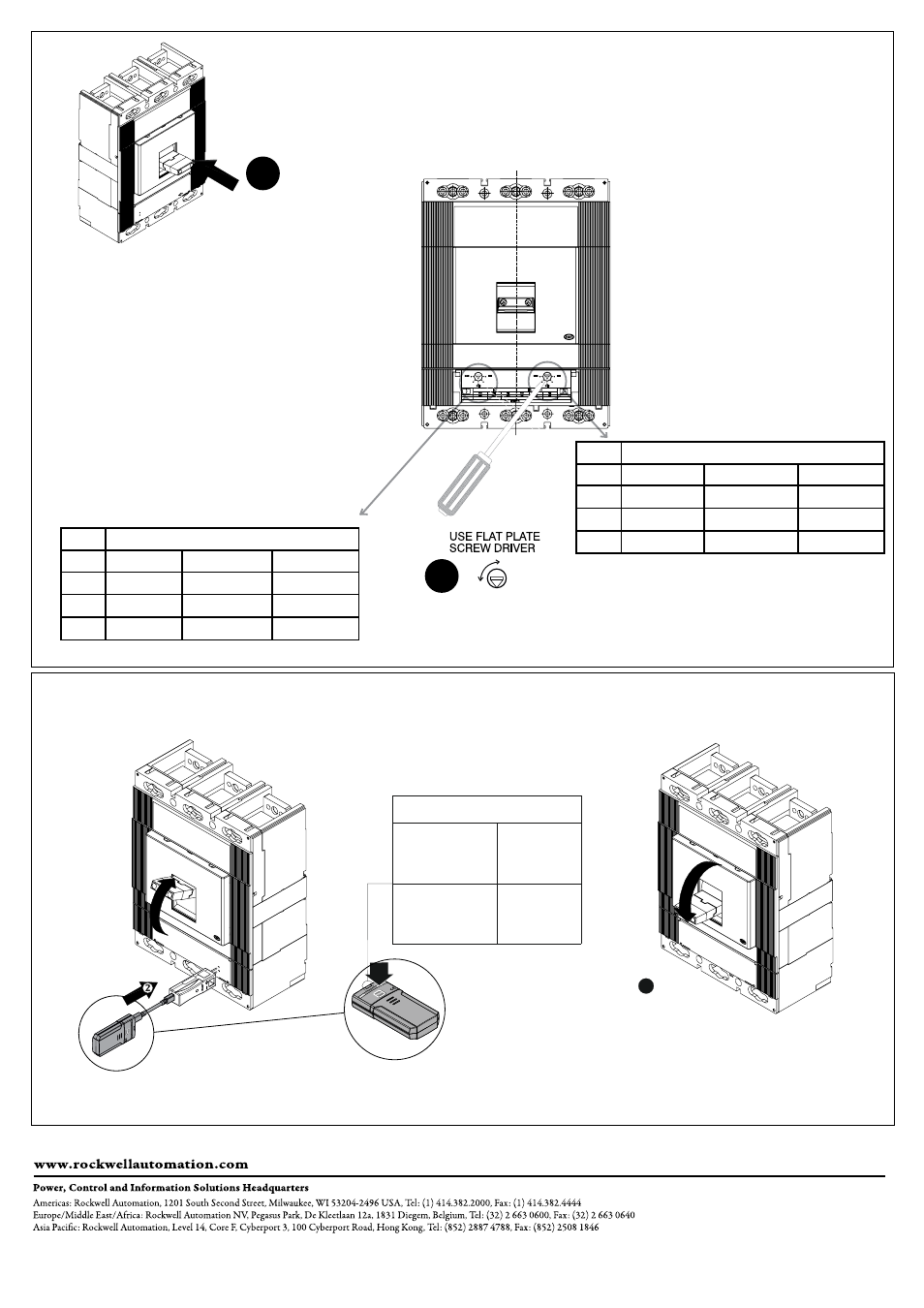

THERMO-MAGNETIC TRIP UNIT

*

NOT UL RATING

I1

In

MIN (Inx0.7) MED (Inx0.85)

MAX (Inx1)

800

560

680

800

630*

441

535

630

600

420

535

630

I3

In

MIN (Inx5) MED (Inx7.5) MAX (Inx10)

800

4000

6000

8000

630*

3150

4725

6300

600

3000

4500

6000

ELECTRONIC TRIP TEST

Allen-Bradley, Rockwell Software, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.

Copyright © 2013 Rockwell Automation, Inc. All Rights Reserved.

DIR 1000511R0004

Pubblication 140G-IN042A-MU-P - April 2013

2

1

1

TRIP TESTER

LED TRIP UNIT DEVICE

3

Green

Verde

Grün

Vert

Verde

Red

Rosso

Rot

Rouge

Rojo

Device ON

Dispositif allumé

Dispositivo encendido

Dispositivo acceso

Einrichtung eingeschaltet

Change battery

Remplacer batteries

Sustituir baterías

Sostituire batterie

Batterie ersetzen

140G-ELTT
(SEPARATELY ORDERED)

CLACK

4
