4

PowerFlex® 700L Frame 2 DC Bus Bar Conversion Kit SK-L1-DCBS1-F2

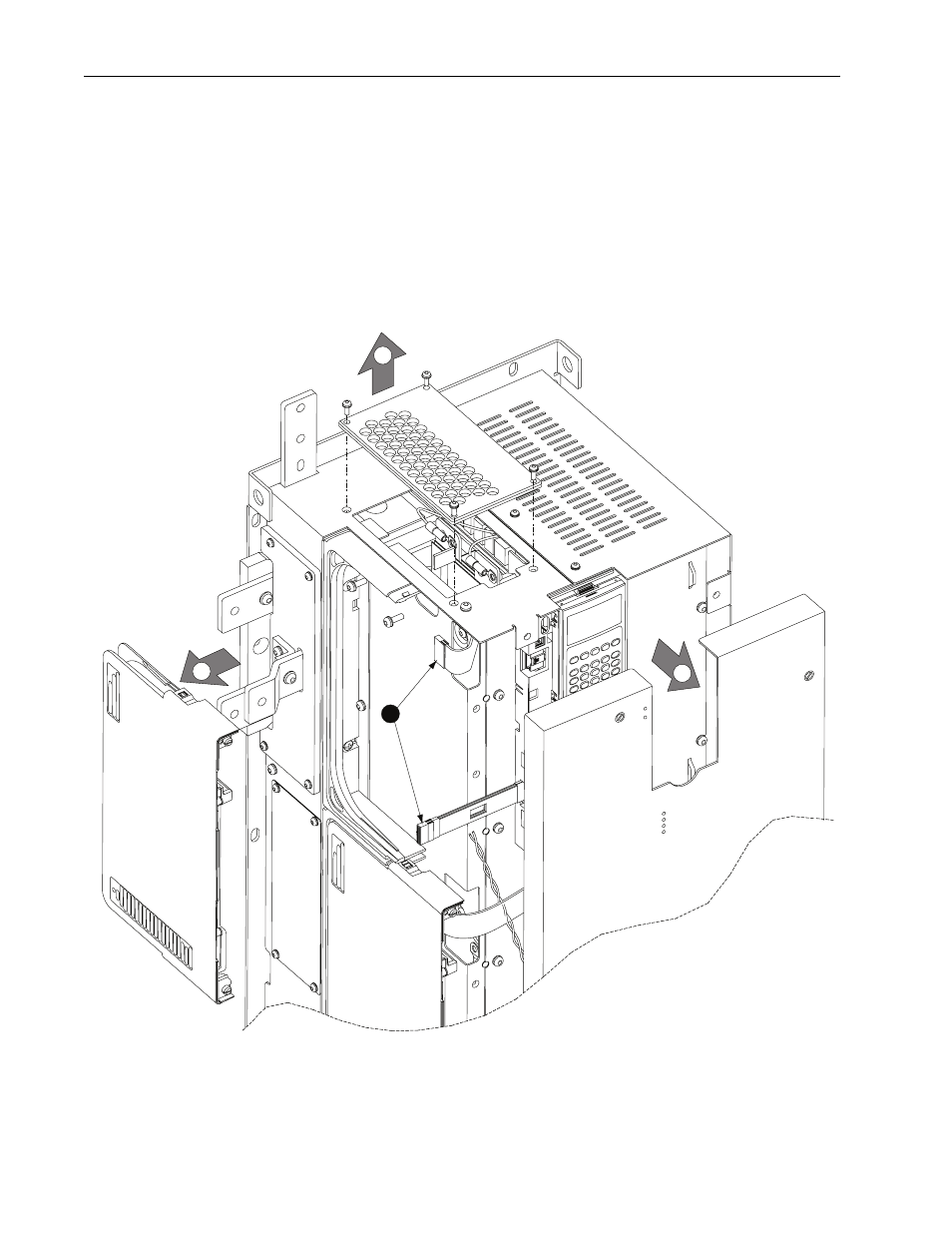

Step 2: Removing the
Drive Cover, Inverter
Cassette, and Vent Cover

1. Remove the five (5) M5 x 16 mm (0.63 in.) long Philips screws that hold

the drive cover to the chassis, and remove the cover. Set the cover aside
to be reinstalled later.

2. Unplug the cable connectors from the inverter cassette and remove the

cassette from the drive. Set the cassette aside to be reinstalled later.

3. Remove the four (4) M4 x 12 mm (0.47 in.) long SEMS screws that hold

the plastic vent cover to the top of the drive, and remove the vent cover.

GRD

SHL

D

PO

WER

STS

SHL

D

SHLD

POR

T

MOD

NET A

NET B

1

2

2

3
