Step 1: attaching the lifting hardware to the afe – Rockwell Automation 20Y Lifting and Mounting PowerFlex Active Front End (AFE) -- Frames 10 and 13 User Manual
Page 2

2
Rockwell Automation Publication 20Y-IN001E-EN-P - June 2014
Lifting and Mounting the PowerFlex Active Front End (AFE)—Frames 10 and 13

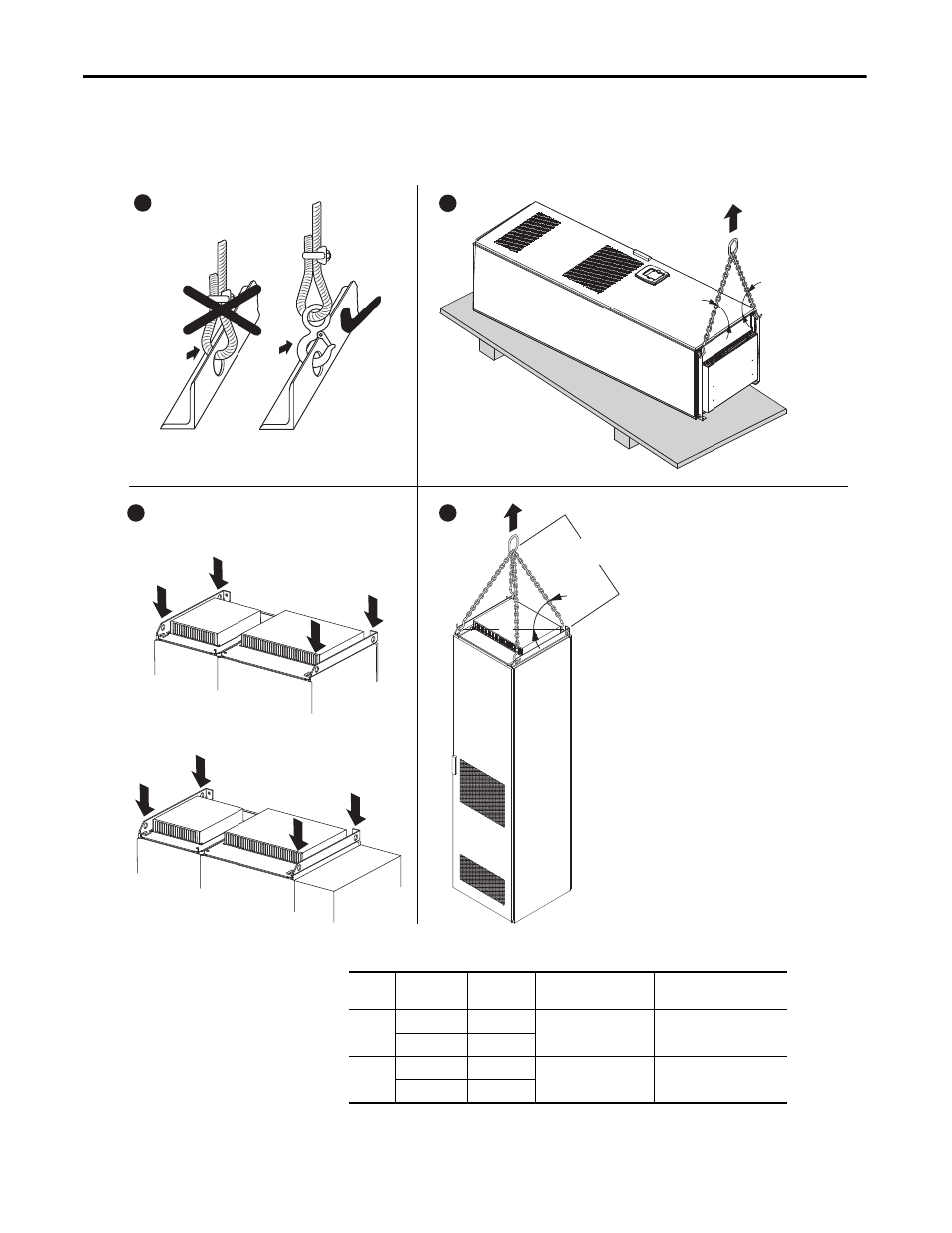

Step 1: Attaching the
Lifting Hardware to the AFE
Directions for AFE in IP21 Rittal Enclosure
Table 1 - Approximate AFE and IP21 Rittal Enclosure Weights
A
Min. 60°
B > A
Min. 60°
A
C
B
D
Lift Points
Frame 10
Frame 13
TIP
To ensure that this angle is
greater than 60°, make the length
of chain or cable between the
center and the corners (B) longer
than the distance between the
opposite corners (A).
Frame
Size
AFE Voltage
Class
AFE Rating
Amps
Enclosure Weight,
approx
(1)
(1) Includes the AFE Power Module and LCL FIlter.
Enclosure and Packaging
Weight, approx
(1)
10
400/480V
460 A
600 kg (1323 lb)
710 kg (1565 lb)
600/690V
325 A
13
400/480V
1300 A
1280 kg (2822 lb)
1330 kg (2932 lb)
600/690V
1030 A
