4 Resolver Feedback Option Card for PowerFlex® 700S Drives
Step 1: Removing Cover(s)
Phase II Drives It is necessary to remove the cassette from the drive before removing the
cassette covers for Phase II control. Therefore the first set of tasks in Step 1
involve cassette removal.
BR1 BR2 DC+ DC- PE
U/T1 V/T2 W/T3 R/L1 L2
(x2)
=
(x2)
(x3)
Proper tightening
torque for reassembly
is 6 lb.-in.

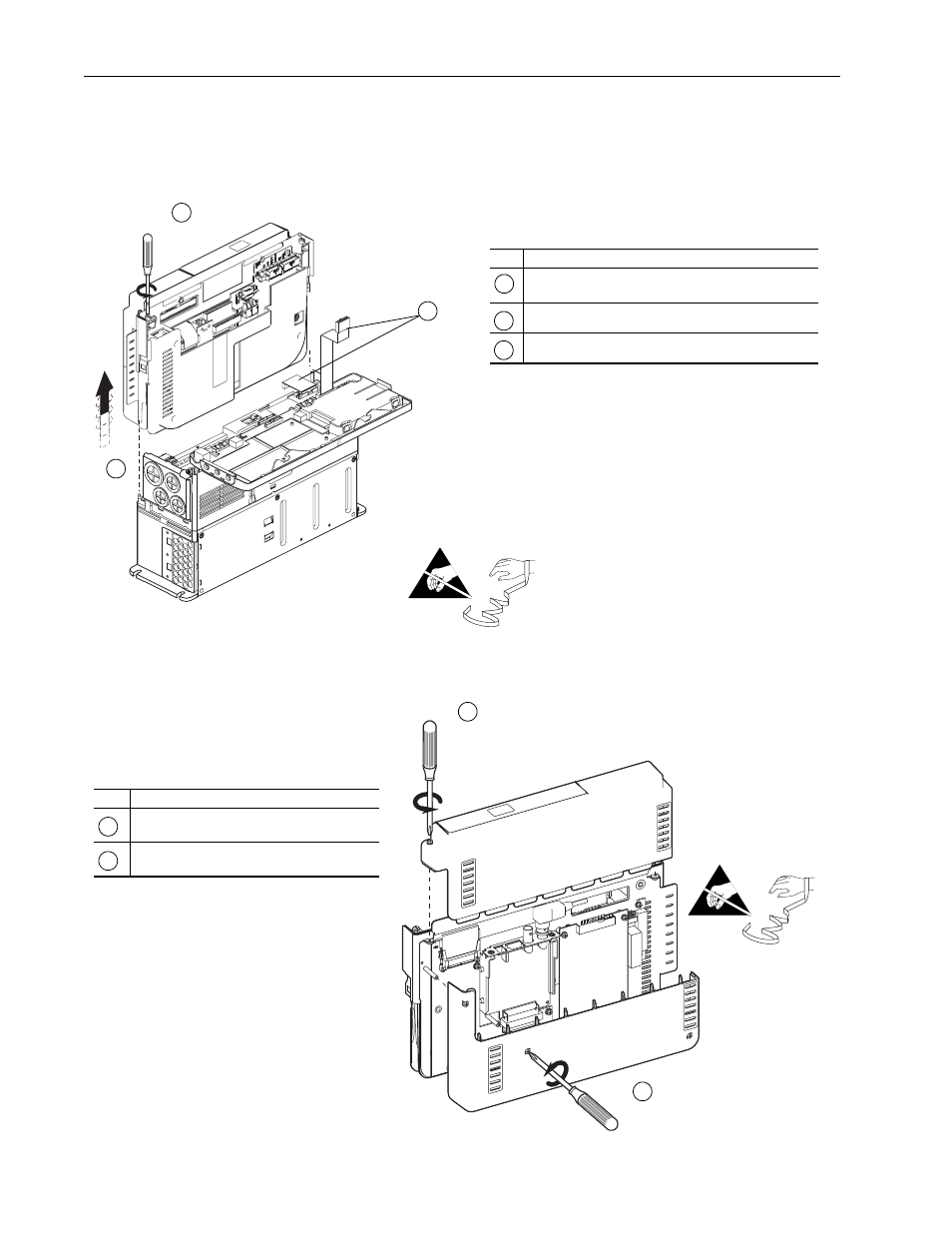

Removing the Cassette
Task Description
Open the door of the power structure and disconnect the
cables that connect to the main board
Loosen screws on face of cassette
Remove the cassette
A
B
C
Removing the Side Covers
Task Description
Loosen screws on face of front cover and
remove the cover
Loosen screws on side of rear cover and
remove the cover
A
B
B
C
A
B
=
A
