Publication 20P-IN036B-EN-P - December 2009
Supersedes 20P-IN036A-EN-P - March 2009

Copyright © 2009 Rockwell Automation. All rights reserved. Printed in USA.

www.rockwellautomation.com

Americas: Rockwell Automation, 1201 South Second Street, Milwaukee, WI 53204-2496 USA, Tel: (1) 414.382.2000, Fax: (1) 414.382.4444
Europe/Middle East/Africa: Rockwell Automation SA/NV, Vorstlaan/Boulevard du Souverain 36, 1170 Brussels, Belgium, Tel: (32) 2 663 0600, Fax: (32) 2 663 0640
Asia Pacific: Rockwell Automation, Level 14, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong, Tel: (852) 2887 4788, Fax: (852) 2508 1846

Power, Control and Information Solutions

1S7A25

2. At the top of the drive, remove the two fuses by inserting a screwdriver

in the slot on the top of the fuse, carefully pushing down and turning the
fuse counterclockwise. When the fuse holder releases, remove the
holder and fuse.

3. Insert the new fuses into the appropriate holders and replace the fuse

holder caps.

Important: For drives with Switching Power Supply circuit board SW2-32,

rev. H & below, insert the 3.15A 250V fuse in the fuse holder
designated F1. Insert the 2.5A 250V fuse in the fuse holder
designated F2.

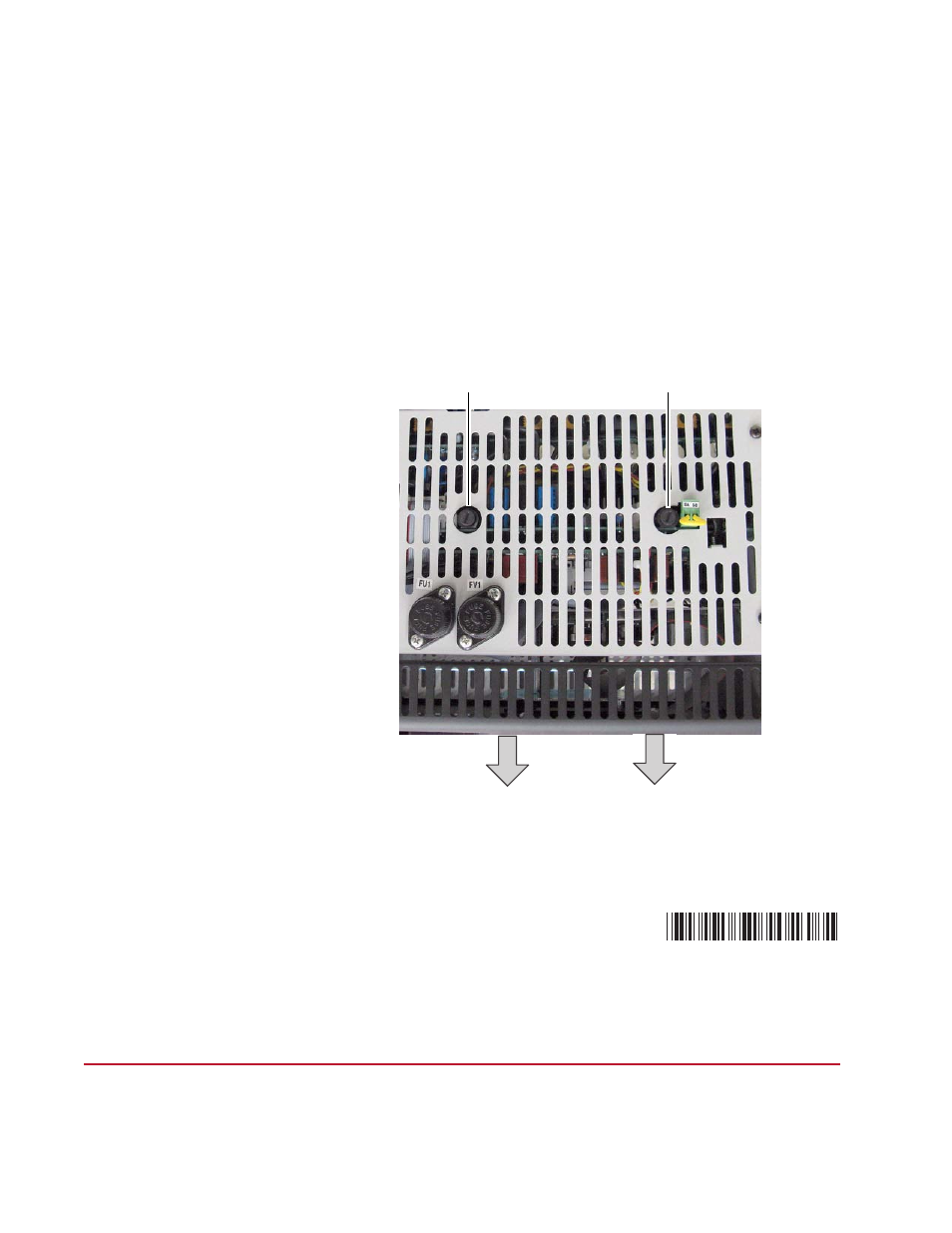

Top View of Drive

Front of Drive

F1 = 3.15A
250V fuse

F2 = 2.5A
250V fuse
