Rockwell Automation 20-COMM PowerFlex 7-Class DPI (Drive Peripheral Interface) Network Communication Adapter - Manual (Page 2)

2
Step 3 If the adapter has address or data rate switches, set them to appropriate
positions. See the adapter User Manual for complete details.

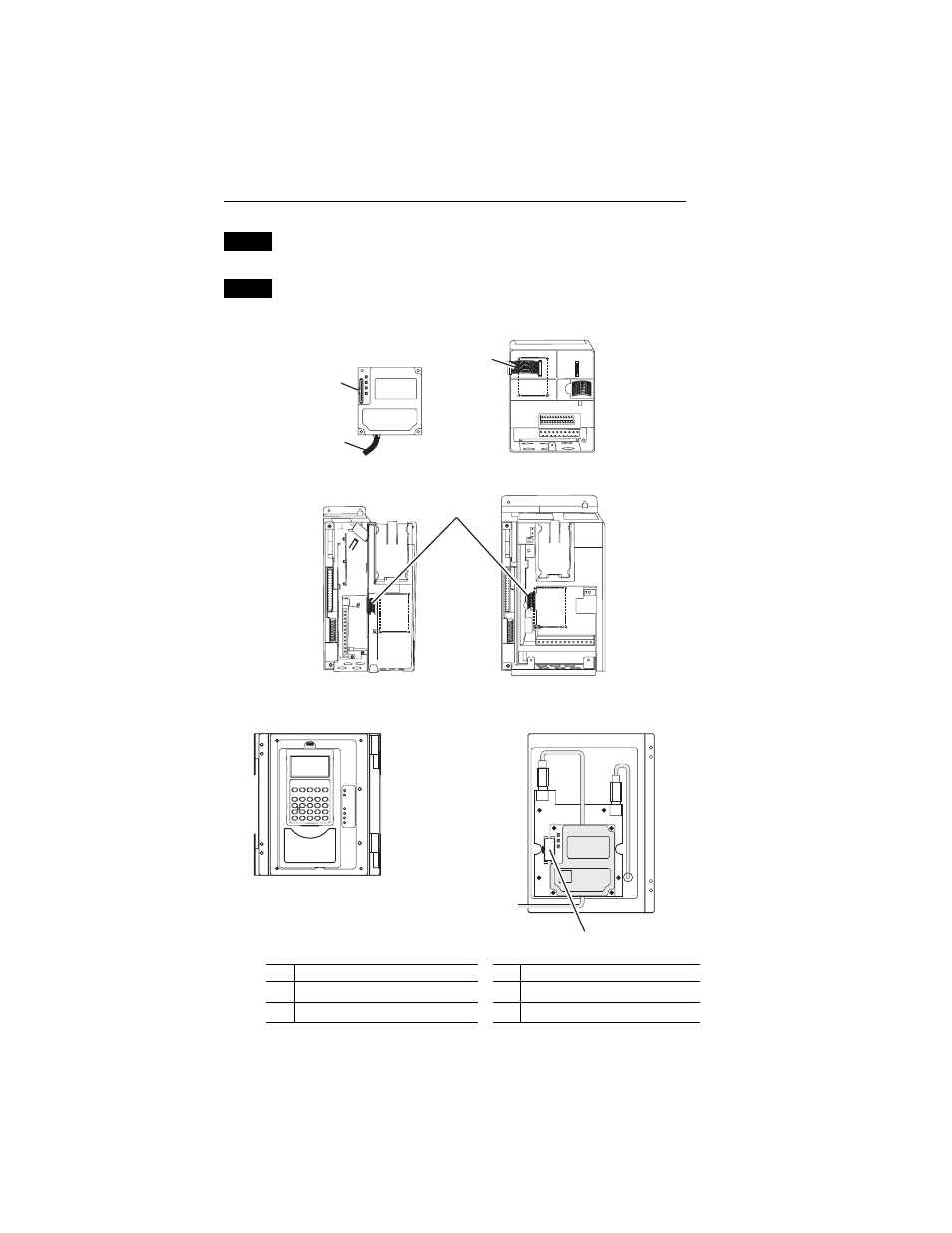

Step 4 Connect one end of the Internal Interface cable to the DPI port on the
drive and the other end to the mating DPI connector on the adapter.
Item Description Item Description
➊ 15.24 cm (6 in.) Internal Interface cable ➌ Network cable
➋ DPI Connector ➍ 2.54 cm (1 in.) Internal Interface cable
➋
➌
➍
➊
X1
X2
➍
(20-COMM-E EtherNet/IP
Adapter shown as example)
PowerFlex 700 Frames 0 and 1
PowerFlex 700S Frames 0 and 1
PowerFlex 70 - All Frames
PowerFlex 700 Frames 2 and Larger
PowerFlex 700S Frames 2 through 6
HIM panel opens to
allow access to DPI
interface. To open
panel, remove screws
on left side of HIM
panel and swing open.
PowerFlex 700H Frames 9 and Larger
PowerFlex 700S Frames 9 and Larger
