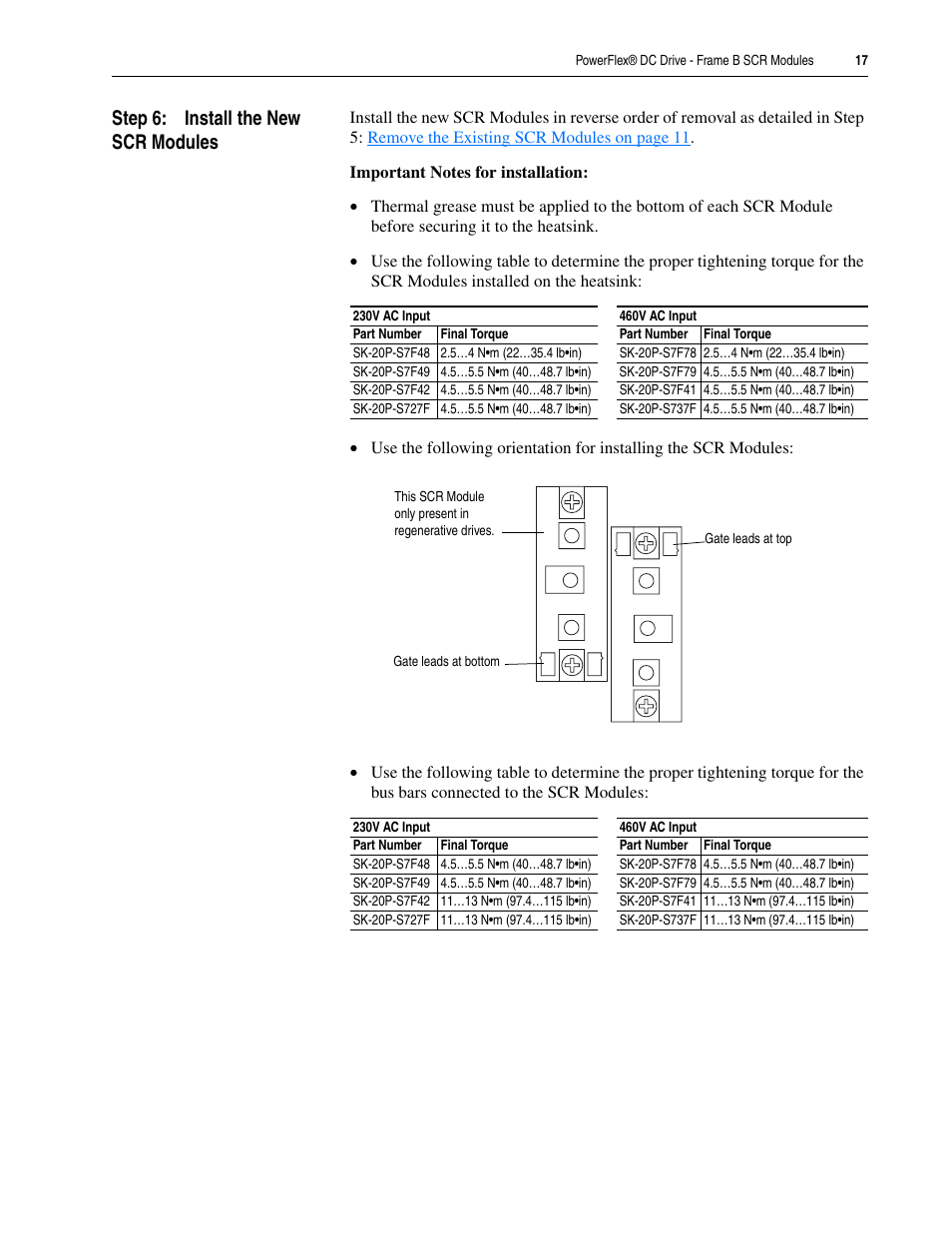

Step 6: install the new scr modules – Rockwell Automation 20P PowerFlex DC Drive - Frame B SCR Modules User Manual
Page 17
