Fine Adjustment
To perform fine adjustment with target present push “Teach
Button” or “Momentary Push Button” for eight seconds until
the yellow LED flashes quickly. The threshold is set to a
minimum sensing setting. After teaching the sensor the
yellow LEDs will flash quickly when target is present and off
when absent. A solid LED during target presence denotes
inability to use fine adjustment due to misaligned sensor or
incompatible target/background properties.
Remote Teach with Dark Operate Mode
To remote teach with the Dark Operate Mode, a 2.2k Ω resistor
must be added to avoid short circuits in the power supply
when the teach mode is active.
BN (10-30V DC)
BK (Output)
WT (LO/DO/Teach)
BU (0V DC)
2.2k Ω
1
4
2
3

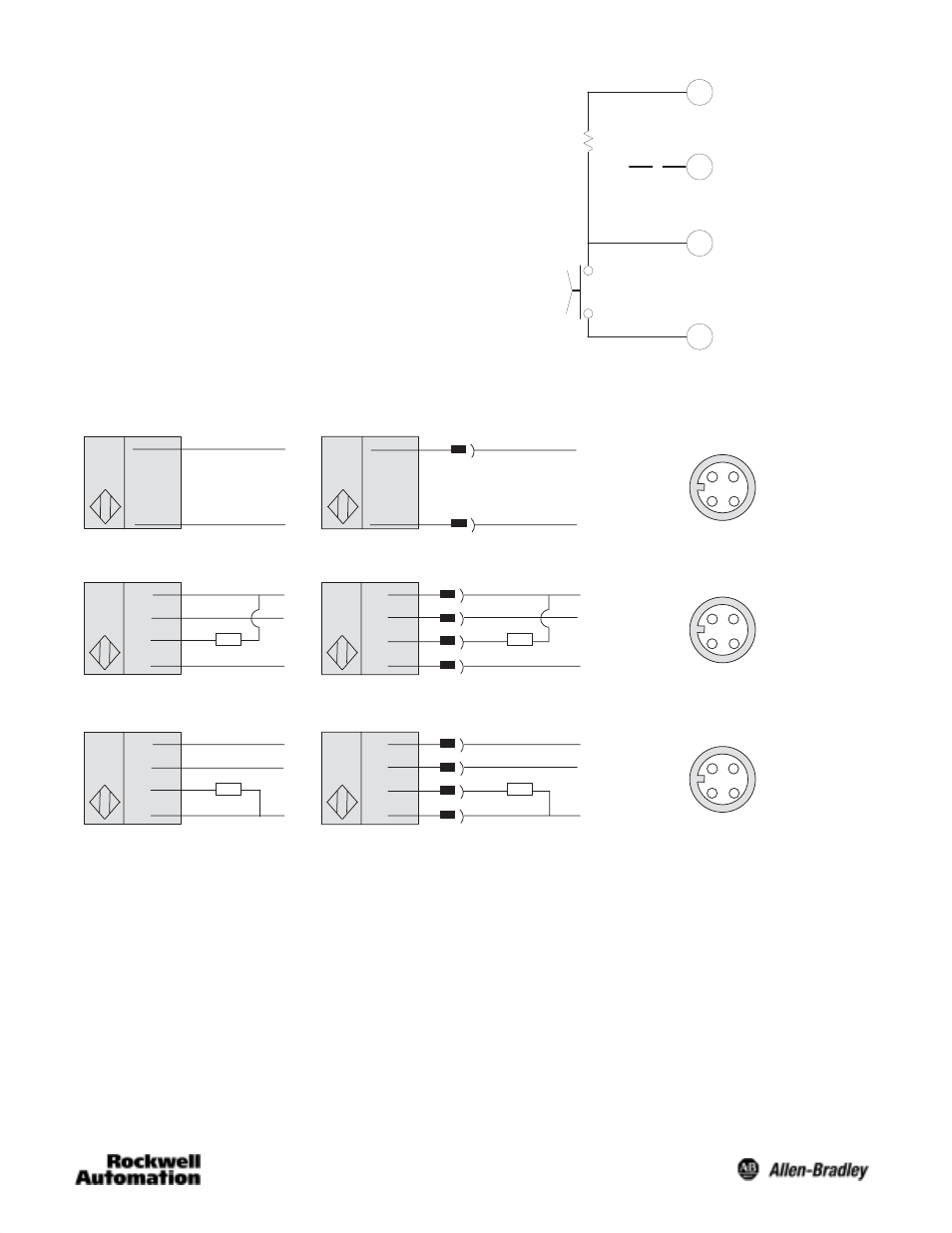

Wiring
Blue
Brown
+
–
1
3
+
–
Brown
Blue
1
3 2
4
Diffuse, Polarized Retroreflective and Transmitted Beam
Brown
Blue
White
Black
+
–
1
2
4
3
Brown
White
Black
Blue
1
3 2
4
Load
+
–
Load
Cable QuickĆDisconnect Face View Male Receptacle (Sensor)
DC Micro
Cable QuickĆDisconnect Face View Male Receptacle (Sensor)
DC Micro
NPN Output
Brown
Blue
White
Black
+
–
1
2
4
3
Brown
White
Black
Blue
1
3 2
4
Load
+
–
Load
Cable QuickĆDisconnect Face View Male Receptacle (Sensor)
DC Micro
PNP Output
Ê Polarized retroreflective or transmitted beam: open circuit (2) & brown (1) conductors together for LO. Tie white (2) & blue (3) conductors together for DO.
Diffuse: Open Circuit for LO. Tie white (2) & brown (1) conductors together for DO. Tie white (2) & blue (3) conductors to N.O. Switch for REMOTE TEACH.
