PowerFlex 755 with OEM Liquid Cooling AC Drive Transition Tube Kit - Frames 6 and 7
www.rockwellautomation.com
Americas: Rockwell Automation, 1201 South Second Street, Milwaukee, WI 53204-2496 USA, Tel: (1) 414.382.2000, Fax: (1) 414.382.4444
Europe/Middle East/Africa: Rockwell Automation, Pegasus Park, De Kleetlaan 12a, 1831 Diegem, Belgium, Tel: (32) 2 663 0600, Fax: (32) 2 663 0640
Asia Pacific: Rockwell Automation, Level 14, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong, Tel: (852) 2887 4788, Fax: (852) 2508 1846
Power, Control and Information Solutions Headquarters

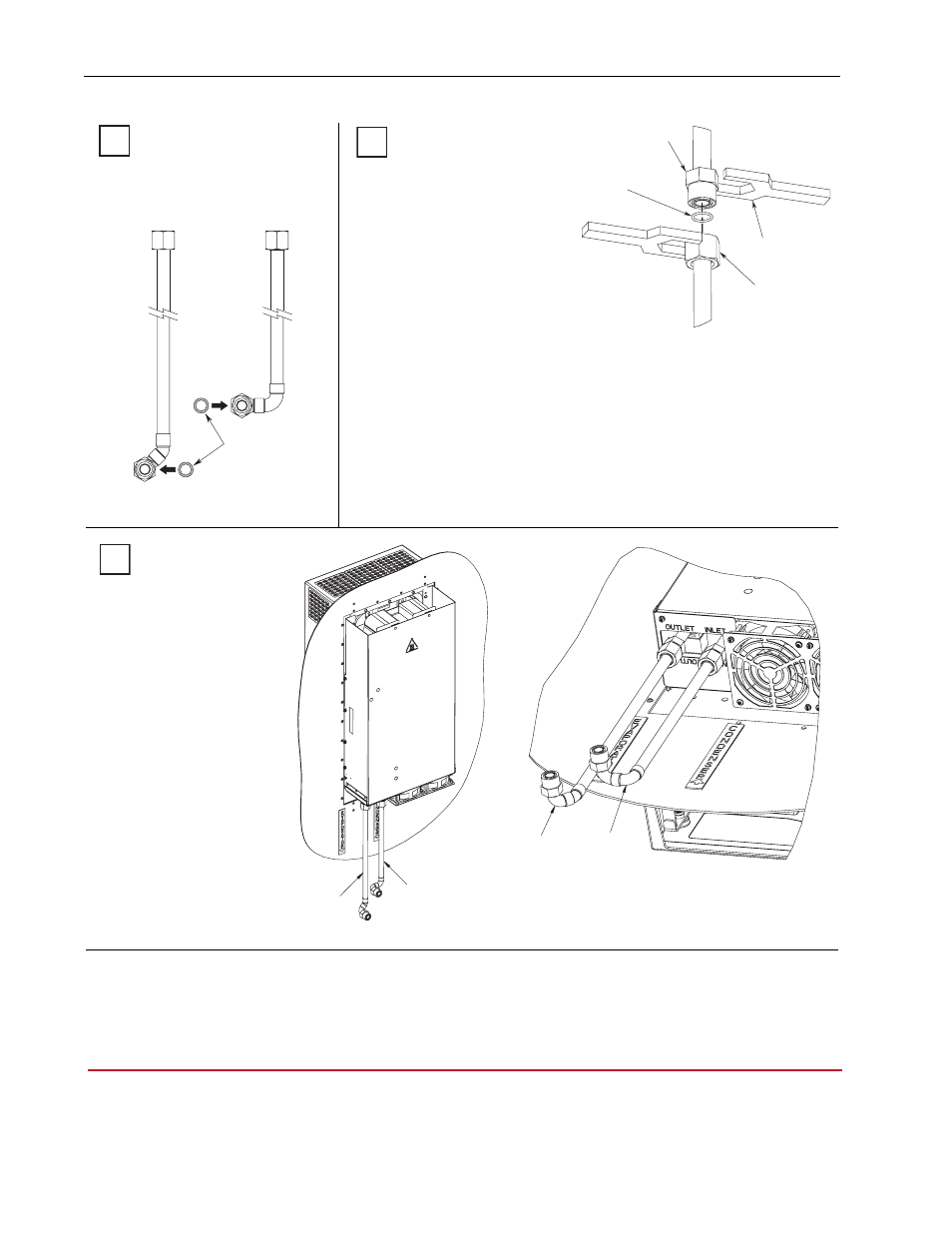

5
Outlet
Transition
Tube
Inlet
Transition
Tube
Outlet
Transition
Tube
Inlet
Transition
Tube
6
O-ring
Fitting with Face Seal
O-Ring
Backup Wrench
Swivel Nut
7
Frames 6 and 7
Install o-rings on the inlet and
outlet transition tube male fittings.
Verify that the o-rings are fully
seated in the fitting grooves.
Frames 6 and 7
For each tube connection:
A. Place the transition tube
assembly against the
fitting body so that the flat
face of the brazed sleeve
is in full contact with the
o-ring.
B. Thread the nut by hand
onto the fitting body.
C. Using a backup wrench,
tighten to a torque of 81
N•m (60 lb•ft).
Frames 6 and 7
Installation completed as
shown at right.
(Frame 7 transition tubes shown)
(Frame 7 drive shown)
