3. Names and functions of parts

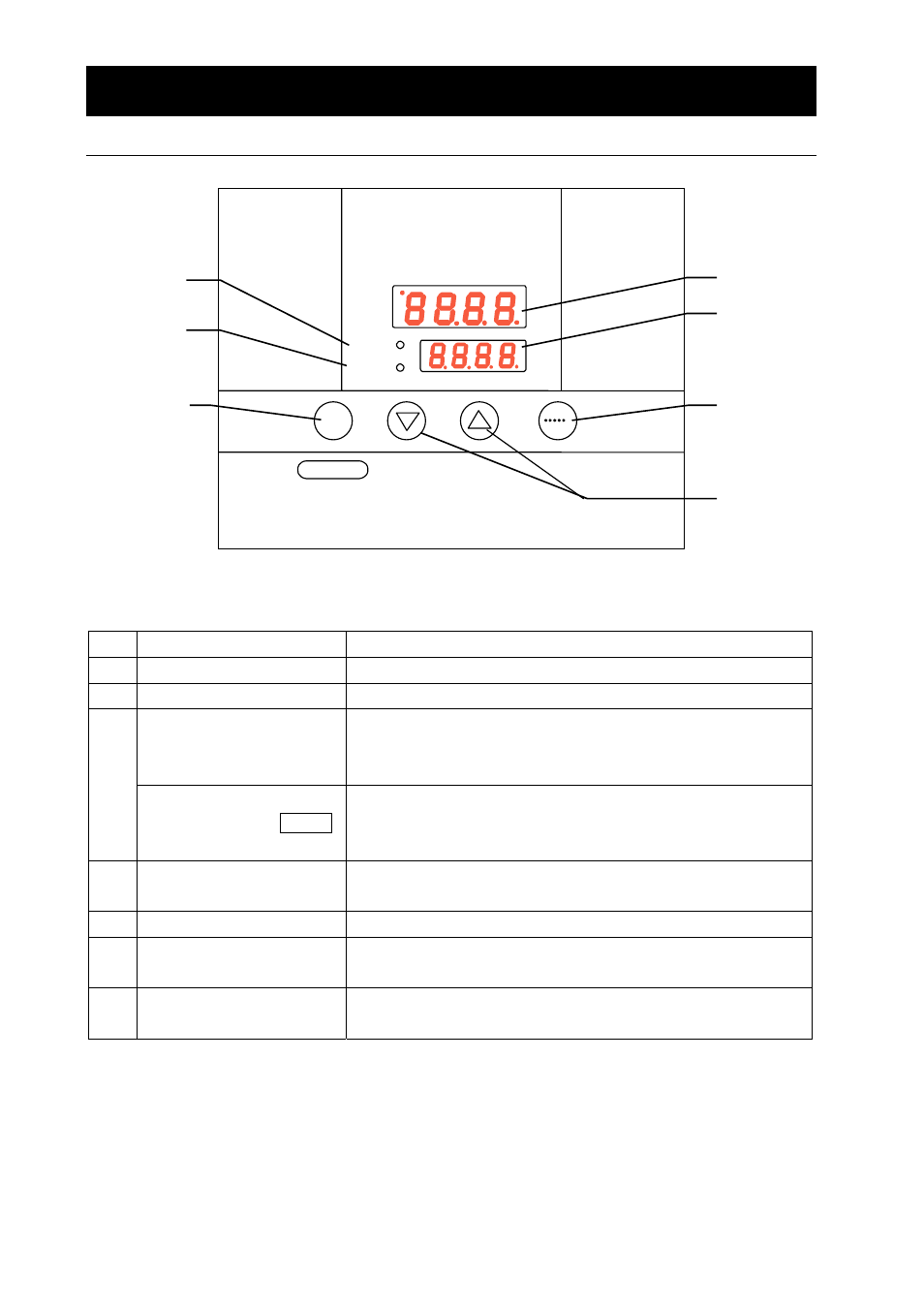

Operation panel
MEASURED TEMP.
℃
HEATER
RUN
SET TEMP.
RUN
STOP
TIMER
SUB MENU
No. Name Operation/action
① RUN/STOP key Used for starting/stopping operation.
② ▼▲ keys Used for selecting settings.
TIMER key Key for selecting timer operation settings.
Quick auto stop operation, auto stop operation or auto start
operation can be selected. ③
SUB MENU key
(Long press of the TIMER
key) Key for setting calibration offset temperature, the key lock
function or the power outage compensation function.
④ RUN lamp Illuminates during fixed value operation and blinks during
timer operation.
⑤ HEATER lamp Illuminates while heater power is on.
⑥ Measured temperature
screen Displays measured temperature in the bath・set characters・
alarm information.
⑦ Set temperature screen Displays a set temperature, timer settings and timer remaining
time.
⑤
④
⑥
⑦
①
②
③
