27
Operation Method
Temperature Output Terminal
Precautions
• Operate this product according to the procedure described in this Operation Manual. Failure to
follow the operation procedure described herein may result in a problem. The guarantee will
not apply if you operate the product in the wrong manner.
CAUTION!
• Turn off the breaker before connecting the cables.
• Use warning output and time-up output at a level equal to or lower than the rated capacity.
• Connect a recorder or another appliance of 600 W or less in input impedance to the
temperature output terminal.
• Securely fasten all connections with the screws attached to the terminal block.

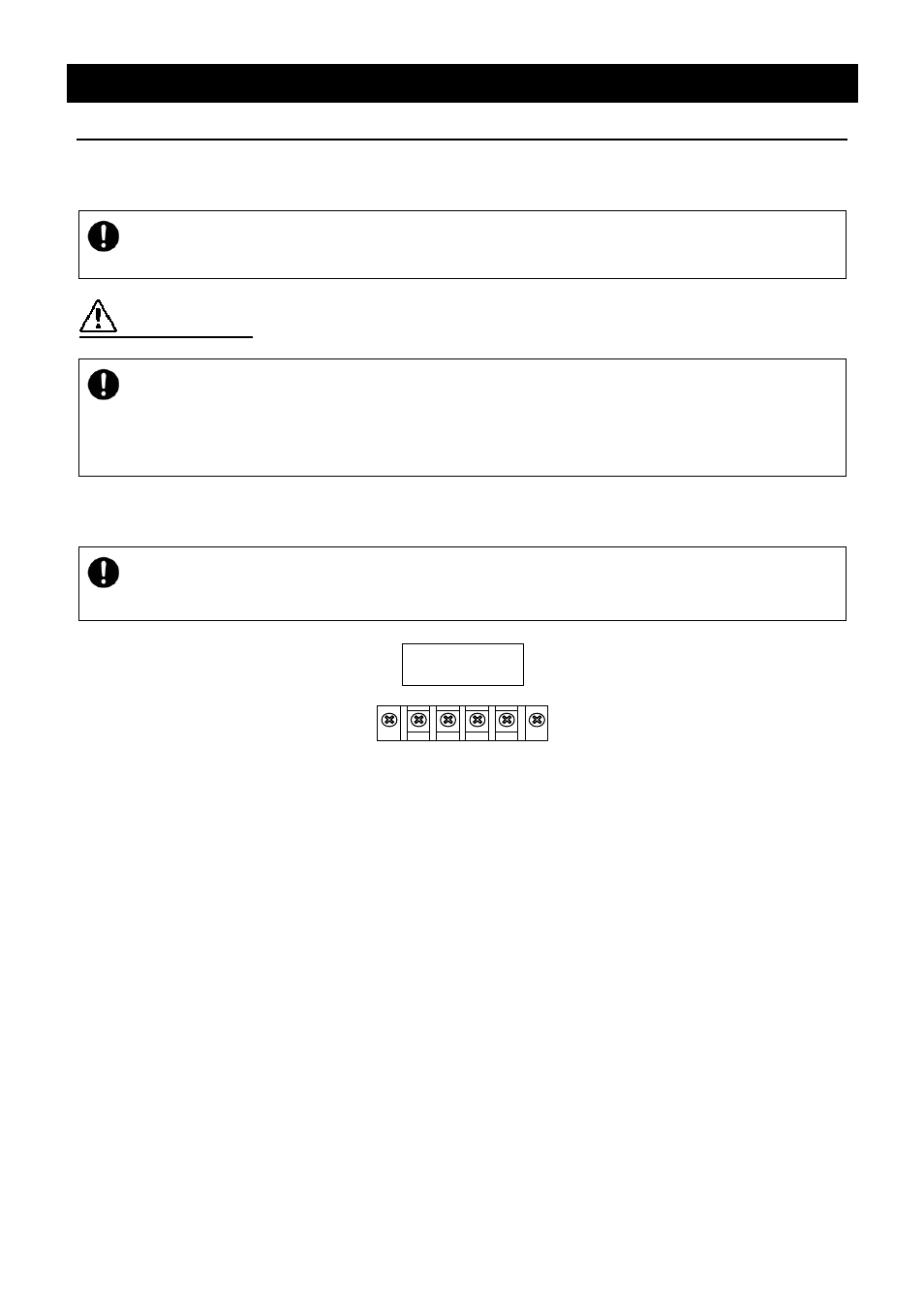

Connection procedure
• Connect the cables to the appropriate terminals.
• When using temperature output, use a shielded wire for the cable to be connected to prevent
noise.
ANALOG
＋ － +A -A
RS-485
Connection terminal
