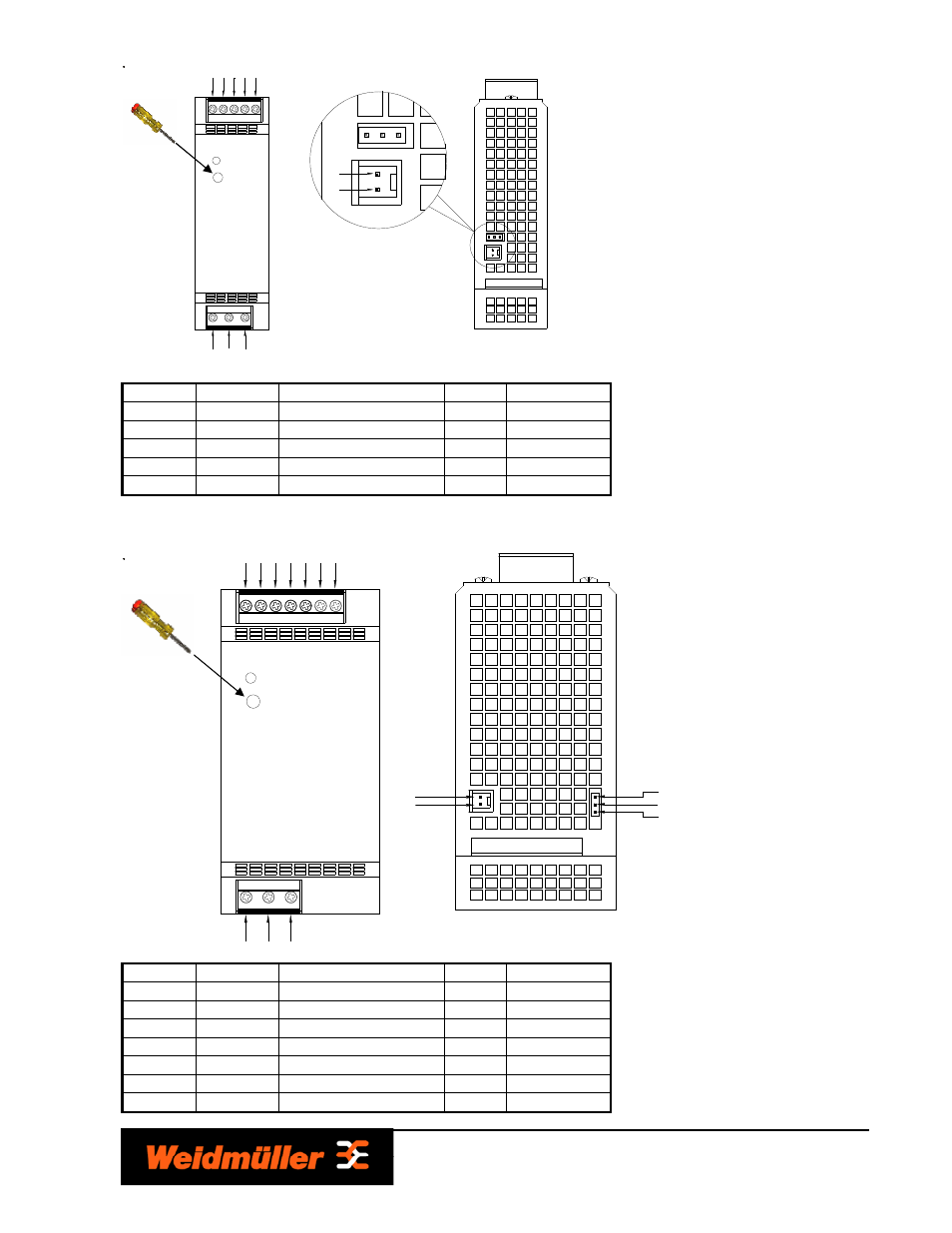

Connectors of CP T SNT 70W 12V 6A & CP T SNT 90W 24V 3.8A with output Voltage adjustment
Connectors of CP T SNT 140W 12V 12A, CP T SNT 180W 24V 7.5A & CP T SNT 180W 48V 4A with Output
Voltage adjustment
J1
J2
J3
J4
Pin 1
Earth
GND (-)
S+
Normal mode
Pin 2
Neutral
GND (-)
S-
Common
Pin 3
Live
Vout (+)
-
Parallel mode
Pin 4
-
Vout (+)
-
-
Pin 5
-
DC-OK Signal
-
-
Pin 6
-
DC-OK Relay contact 1
-
-
Pin 7
-
DC-OK Relay contact 2
-
-
J1
J2
J3
J4
Pin 1
Earth
GND (-)
S+
Normal mode
Pin 2
Neutral
Vout (+)
S-
Common
Pin 3
Live
DC-OK Signal
-
Parallel mode
Pin 4
-
DC-OK Relay contact 1
-
-
Pin 5
-
DC-OK Relay contact 2
-
-
Fig.: 5.1
Fig.: 5.2
