Page 9

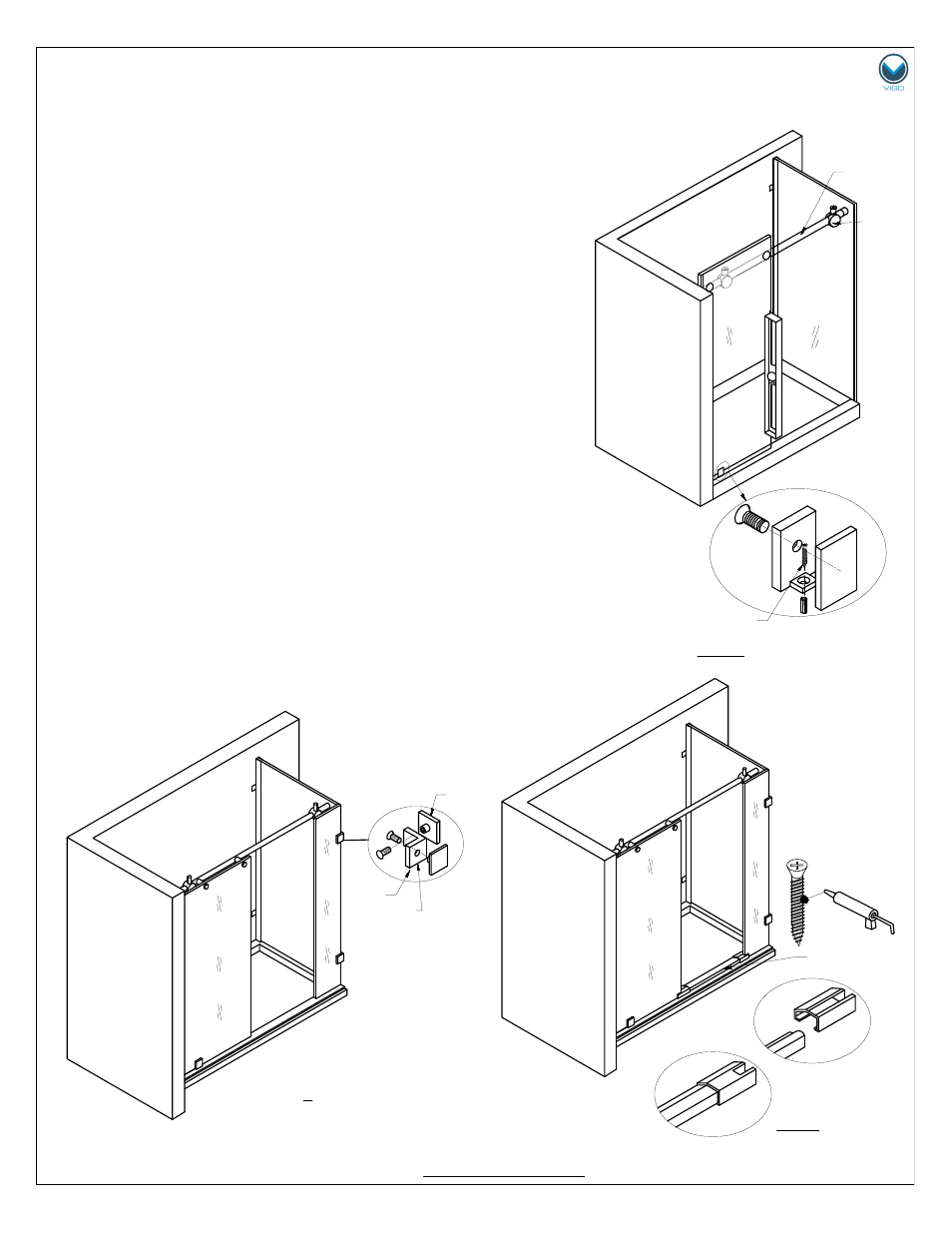

FIG. 7

FIG.

FIG. 9

PLATE

CORNER
BRACKET

C. INSTALLING THE SMALL FRONT FIXED PANEL

1. Align the small front fixed panel (#5) to the shower

opening. Make sure you place the panel with the holes
closer to the corner. The difference is minimal so stop to
measure as needed.

2. Unscrew the corner brackets (#8) [SEE FIG.8]

3. Align the corner brackets to their respective positions from

inside the shower. Place the corner plates on the outside of
the shower.

4. Screw in the corner plates to the corner brackets
with the provided screw from inside the shower.

5. The side seal strip (#18) will be firmly compressed between

the small front fixed panel (#5) and the side glass panel (#6).
This is to prevent water leakage.

D. INSTALLING THE THRESHOLD

1. Seal the end cup bottoms with clear silicone caulk.

2. Seal the threshold bottom with clear silicone caulk.

3. Slide the end cups (#13 & #14) to the small front fixed panel (#5)

and big front fixed panel (#4). Align the threshold with the glass.
[SEE FIG.9]

MODEL VG06051
