Vigo VG06051 User Manual

Page 8

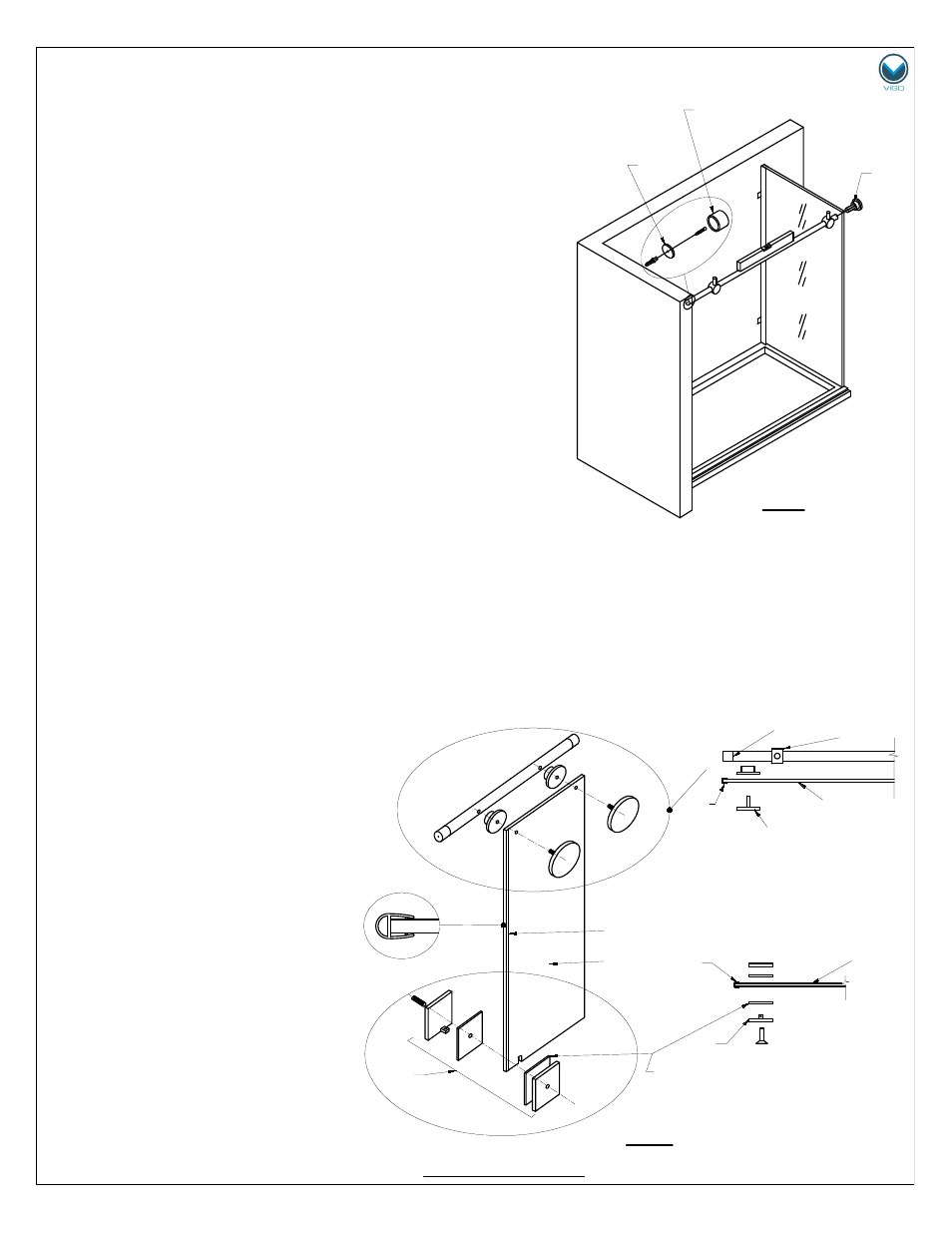

FIG. 6

THIN GASKET

TOP VIEW

INSIDE OF THE SHOWER

OUTSIDE OF THE SHOWER

INSIDE OF THE SHOWER

OUTSIDE OF THE SHOWER

MODEL VG06051

FIG. 5

PLATE

BRACKET
BODY

B. INSTALLING THE BIG FRONT FIXED PANEL

1. Screw the fixed panel bottom clip (#10) to the big

front fixed panel (#4). Place thin gaskets on each
side of the panel. [SEE FIG.6]

2. Place the side seal strip (#18) on the big front

fixed panel (#4) from the side of the wall.

3. Place the big front fixed panel on the shower

opening making sure to have the hole out on the bottom
for the fixed panel bottom clip closer to the wall.

4. Screw the big front fixed panel to the structural rail
(#16) with the fixed panel holders (#2). [SEE FIG.6
& FIG.7]

5. Mark the fixed panel bottom clip locations on the

floor.

6. Remove the big front fixed panel from the position in the opening.

7. Mark hole on the floor for the mounting screw. Drill the hole and place a plastic anchor

(#25) inside it.

8. Unscrew and detach the fixed panel bottom clip from the big front fixed panel.

9. Screw the fixed panel bottom clip to the floor with 1-1/8" screw (#21).

10. Align the big front fixed panel to

the shower opening location.

11. Screw the big front fixed panel

to the structural rail with the
fixed panel holders (FIG.6).

12. Screw the big front fixed

panel to the bottom clip.
