GelMax Imager 11
Service Procedures
Return Procedure
A Returned Goods Authorization (RGA) number must be obtained from UVP Customer Service before
returning any product. See “Technical Support” below for contact information.
Replacement Parts and Accessories
To order accessories or replacement parts for the GelMax Imager, contact UVP’s offices.
Part Description Part Number
Fuse, 2.0A 56-0022-03 (2 Recommended)
Power Cord, 100V/115V 58-0085-01
Power Cord, 230V 58-0085-03
Interchangeable Sample Plates:
365nm Longwave UV Interchangeable Sample Plate 38-0381-01
460/470nm Visi-Blue Interchangeable Sample Plate 38-0381-02
White Light Interchangeable Sample Plate 38-0381-03
Solid Black Interchangeable Sample Plate 38-0381-04
Interchangeable Sample Plate Holder 20-1657-01
Emission Filters:
Filter, Ethidium Bromide, 50mm Square 38-0220-01
Filter, SYBR Green, 50mm Square 38-0219-01
Filter, SYBR Gold, 50mm Square 38-0221-01
Additional Filters Contact UVP
Gel Accessories:
Gel-Cutter 85-0002-01
Gel-Ruler 85-0003-01
Gel-Scooper 85-0006-01
Gel-Tray, Small 85-0007-01
Gel-Sentry DNA Preparation Plate 97-0076-01
Fluorescent Standard Step Tablet 33-0014-02
Protective Equipment:
Spectacles, UV Blocking (UVC-303) 98-0002-01
Goggles, UV Blocking (UVC-503) 98-0002-02
Faceshield, UV Blocking (UVC-803) 98-0002-04
Troubleshooting
No Power to the Transilluminator or Filter Wheel
1. Recheck the main power cord connection to the GelMax unit.

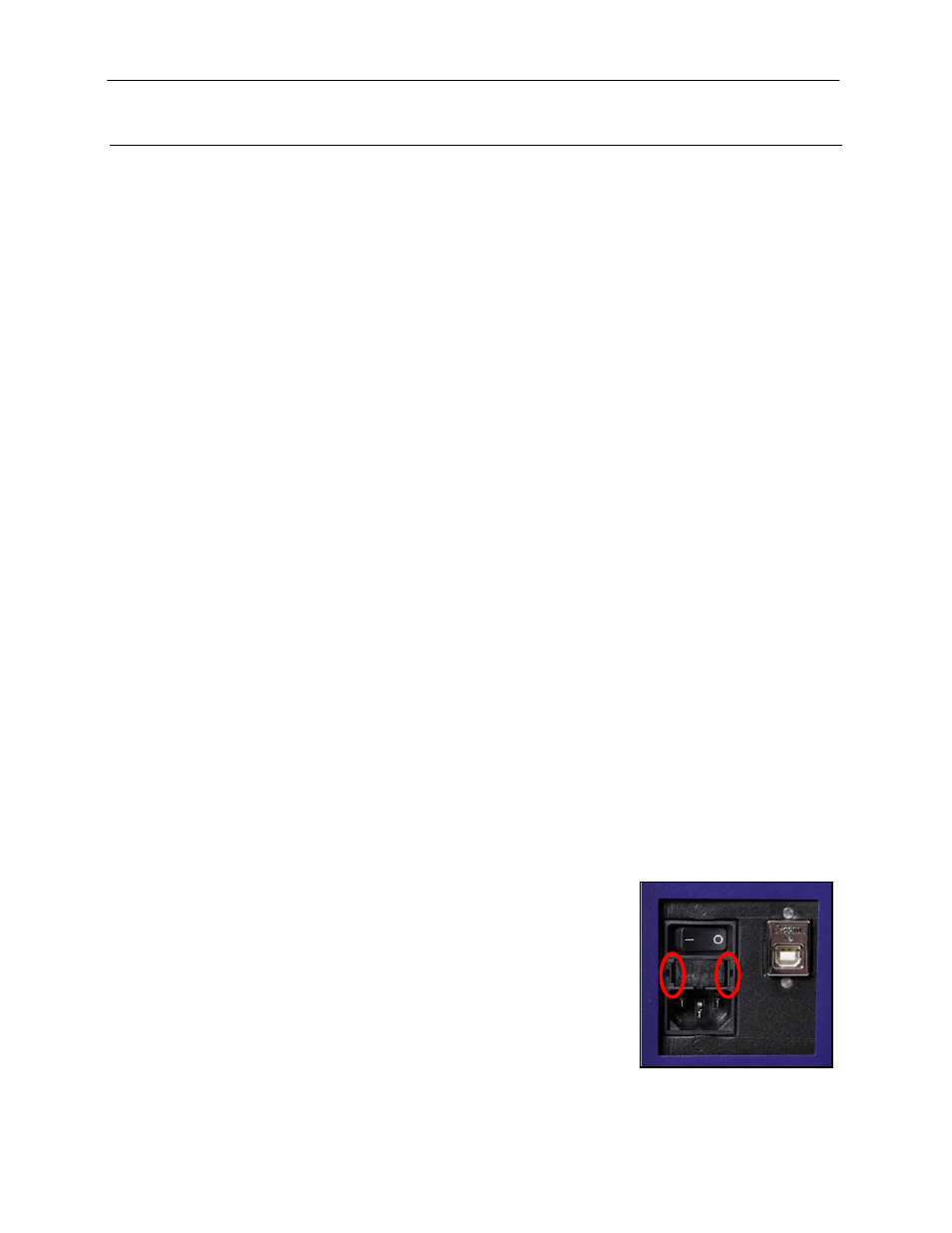

2. Check the fuses located at the back of the unit next to the power
port. A small flat-head screwdriver or similar tool will be required.
Push the left tab of the fuseholder to the right until the
fuseholder’s left side pops out. Then, push the right tab toward
the left until the right side pops out. The entire fuseholder can
now be pulled out.
Inspect the thin wire within each glass fuse to see if there is a
break in the wire. If so, replace the fuse(s). If fuses are blowing
repeatedly, contact UVP Technical Support for additional troubleshooting.
