TruXedo TonneauTraX - Manual (Page 6)

12 ___*___ ______*_________
13 1705052 End Plug, 1” OD
14 ___*___ Black Bow
15 1702992 Spring Plunger, 5/8” x 2.15”
16 1703260 Tension Control Bracket
17 1115354 Header Insert Safety Clip
18 ___*___ Hook Fastener Strip
19 1703332 Hitch Pin, 1/16” x 1 5/16”
20 1704134 Cargo Clamp Assembly
21 ___*___ Side Rail, Passenger’s Side
22 ___*___ Side Rail, Driver’s Side
23 1114773 Flat Spring, 5/8” x 3 7/8”
24 1117467 Rear Header 08 End Plugs (Set of Two)
25 1702926 Cap Screw, 5/16” x 7/8”
26 1704187 Header Stop
27 1117470 Cargo Rail End Plugs w/Seal (Set of Two)
28 1704383 Filister Head Screw
29 1704133 Cargo Anchor (Set of Four)
30 1704213 Latch Assembled
31 ___*___ Black Rear Header
32 1117456 Cargo Anchor Replacement (2)
33 1700428 Washer 5/16
* Please specify length or make and model of vehicle.
1 ___*___ TonneauTraX Replacement Cover
2 ___*___ Black Front Header
3 ___*___ Header Seal, Notched
4 1117540 Front Header End Plugs (Set of Two)
5 1704604 Header Guide_QT
6 * *
7 ___*___ Safety Strap
8 1704194 Weld Nut 5/16-18 ZP
9 1704606 Cap Screw, 5/16-18 x 5/8”
10 1117591 Header Guide Retainer.
11 1704715 Extruded Retainer Loop

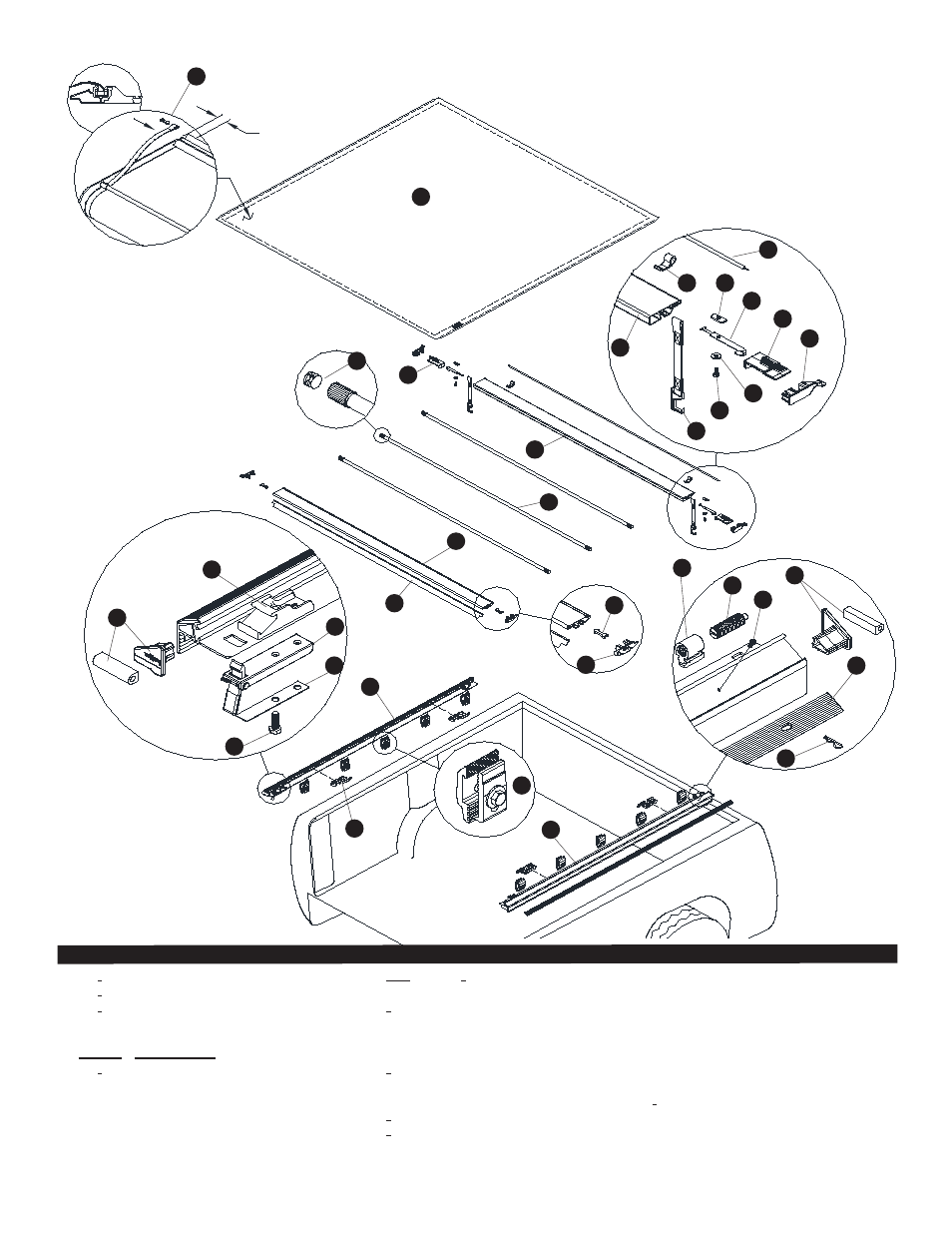

TONNEAUTRAX REPLACEMENT PARTS
2
3
5
4
8
7
10
11
9
2
14
15
27
20
21
18
19
17
1
5
13
3
26
27
30
23
22
3”
28
17
16
29
24
25
31
33
