NOTE: Secure the hook fastener strip in the
side rail to the sewn Velcro ® loop
fastener along the entire length of both
side rails before driving vehicle, to
prevent wind lift.
STEP 8: Secure the hook fastener and Velcro ® loop fastener strips on
one side rail by pressing along full length of rail. Pull cover
tight across pickup bed and secure fasteners on opposite
side rail.
Hook fastener strip
located on the side rail.
Velcro ® loop fastener
sewn to the cover.
LATCHING & UN-LATCHING COVER
STEP 7:
Always close cover before closing tailgate.
Unroll cover toward tailgate and rest bows on side rails. Rotate header into header stops and press down to lock toggle into header.
lock toggle into header
header seal
inside tailgate
NOTE: If tailgate has a key lock, TruXedo ® is secured until tailgate is
unlocked and opened.
header
cover
toggle
header seal
header stop
Pull cover over rails
toggle
Press edges
SECURING COVER TO THE SIDE RAILS
SIDE RAIL & COVER INSTALLATION CONTINUED

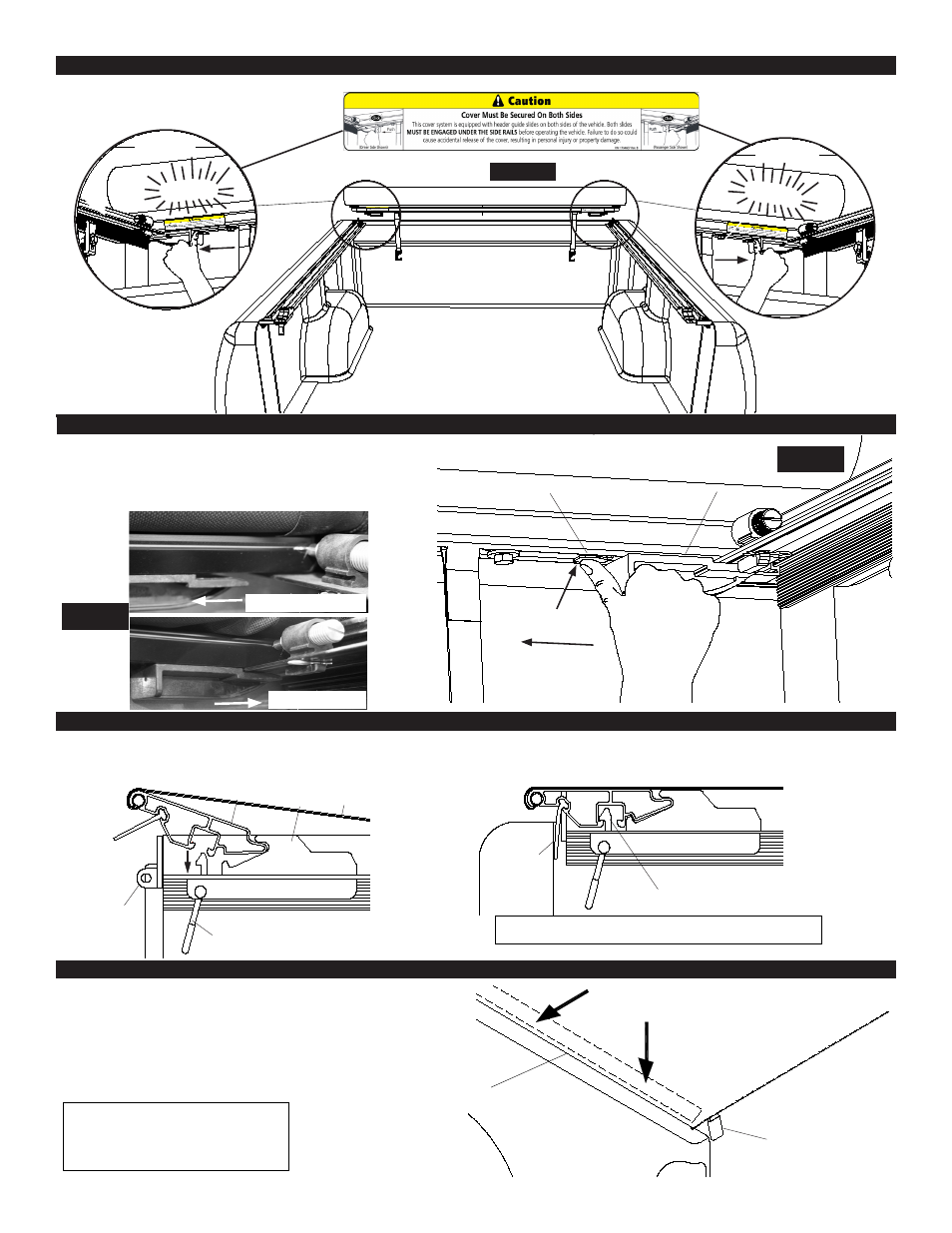

STEP 5: Align header assembly with side rails. Push header guides into place under side rail. A click sound will indicate a secure
attachment. See detail B & C below.
Detail B
Detail C
STEP 6: If you want to remove cover assembly push up
on retainer tab with thumb and pull header guide over
retainer until it stops. Do this for both passenger and
driver side. Then lift cover assembly off of side rails.
Push Up To
Release
Move Header Guide To
Disengage.
Passenger Side
Shown
Header Guide Retainer Tab
HOW TO REMOVE COVER ASSEMBLY
T
ruck
B
ox
F
ronT
CLICK CLICK
N
otice
DISENGAGED
ENGAGED
Passenger Side
Shown
