Talos Security CT330S CCTV Tester User Manual
Page 9

CCTV Tester User’s Manual
9
A.
Connect the output terminal of video output system to the video input BNC of
tester, turn on the tester, the video can be displayed on the screen.
B.
Connect the video output BNC of tester to the video input of other display device.
It can display the video signal generated by the tester or looped by tester.
3.4 System information submenu
A.

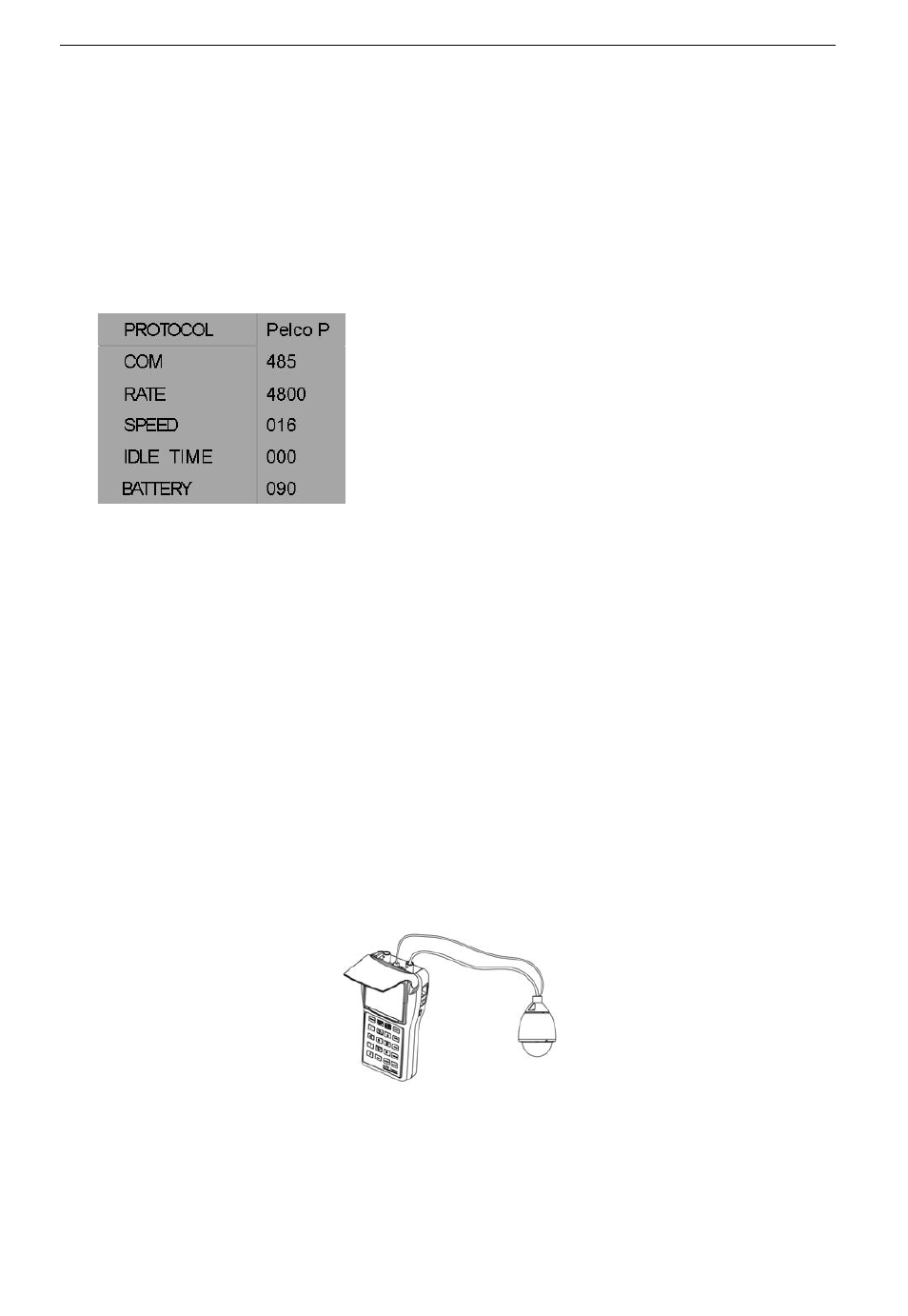

Press “1” to switch to the system information submenu, as follows:
——> PTZ protocol
——> Communication port in used
——> Baudrate: 2400/4800/9600/19200
——> Pan and tilt speed
——> Idle time from last operation to auto turn off (minute)
——> Battery power status: 100/90/75/50/25/5
B.
Press Set button to start the set up
C.
Press num-button”2” and”8” (PTZ direction button “UP” and “DOWN”) to select
the option (Battery power status can be edited)
D.
Press num-button “2/6/8” (PTZ direction button “UP/DOWN/RIGHT”) to adjust
the parameter
E.
Press num-button “4” (PTZ direction button “LEFT )to save and quit
F.
Press num-button “4” again to finish the setup situation, the characters in the
menu will stop glitter
G.
Press MENU button for 1 second to back to the main menu. Note: In our device,
PTZ there are 16 (some protocol ok has 7) levels for the PTZ, 0 means the
minimum speed, 17 (or 7) means the maximum speed
3.5 PTZ test
A.
Connection
Connect the tester with the PTZ camera as the picture shows.
In the main menu, press num-button “2” to switch to the PTZ testing function
