CCTV Tester User’s Manual





14

Note: Please don’t test the voltage over the testing range; it can break the tester.

Connec

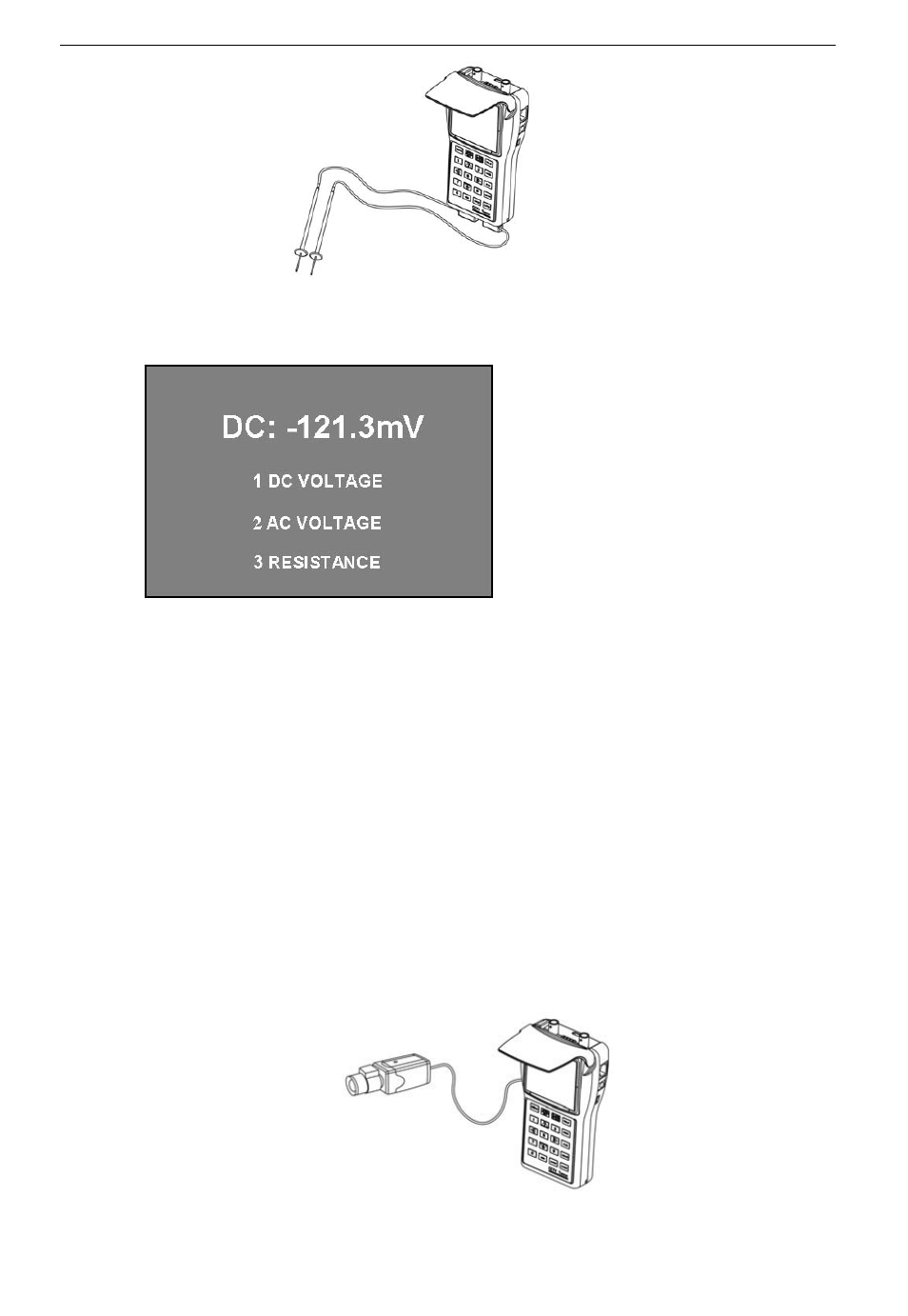

t the camera with the tester as the picture shows; connect the DC12V output

from tester to the DC12V input port from the camera using the accessory “DC12V power
cable

”:

3.12 Output power to camera

D.

Press MENU button for 1 second to return to the main menu.

C.

Press the num-button 1,2,3 can select the corresponding option:

DC voltage test range

01000V,precision:0.1mV;

AC voltage test range

750V,precision:0.1mV;

• Resistance test range:040MΩ,precision:0.1Ω。

B.

Press the num-button “6” to open the multimeter submenu as follows:
