CCTV Tester User’s Manual





3Operation Introduction

3.1 Power and battery

A.

The power slide switch is located at the side of the tester. Turn the power slide
switch on to power on the tester; turn it off to power off the tester;

B.

After the tester turning to sleeping mode, turn the slide switch on again to restart it;

C.

This tester has panel battery inside the device, more capacity, longer working time;

D.

Without the authorization from the manufacturer, please don’t release the
rear panel and try to repair the battery;

E.

The batteries should be plugged in over 5 hours for full charge, while charged
the Charge Indicating LED will be on; after full charging, the Charge Indicating

LED

light will turn off and the charging stop automatically.

F.

The charged batteries can operate for 10 hours or more.

G.

When the battery

indicator

in system information menu shows

25 (the

status number includes 100, 90, 75, 50, 25, 5), please recharge it for use.

H.

The tester can be used when it is being charged.

3.2 Main menu introduction

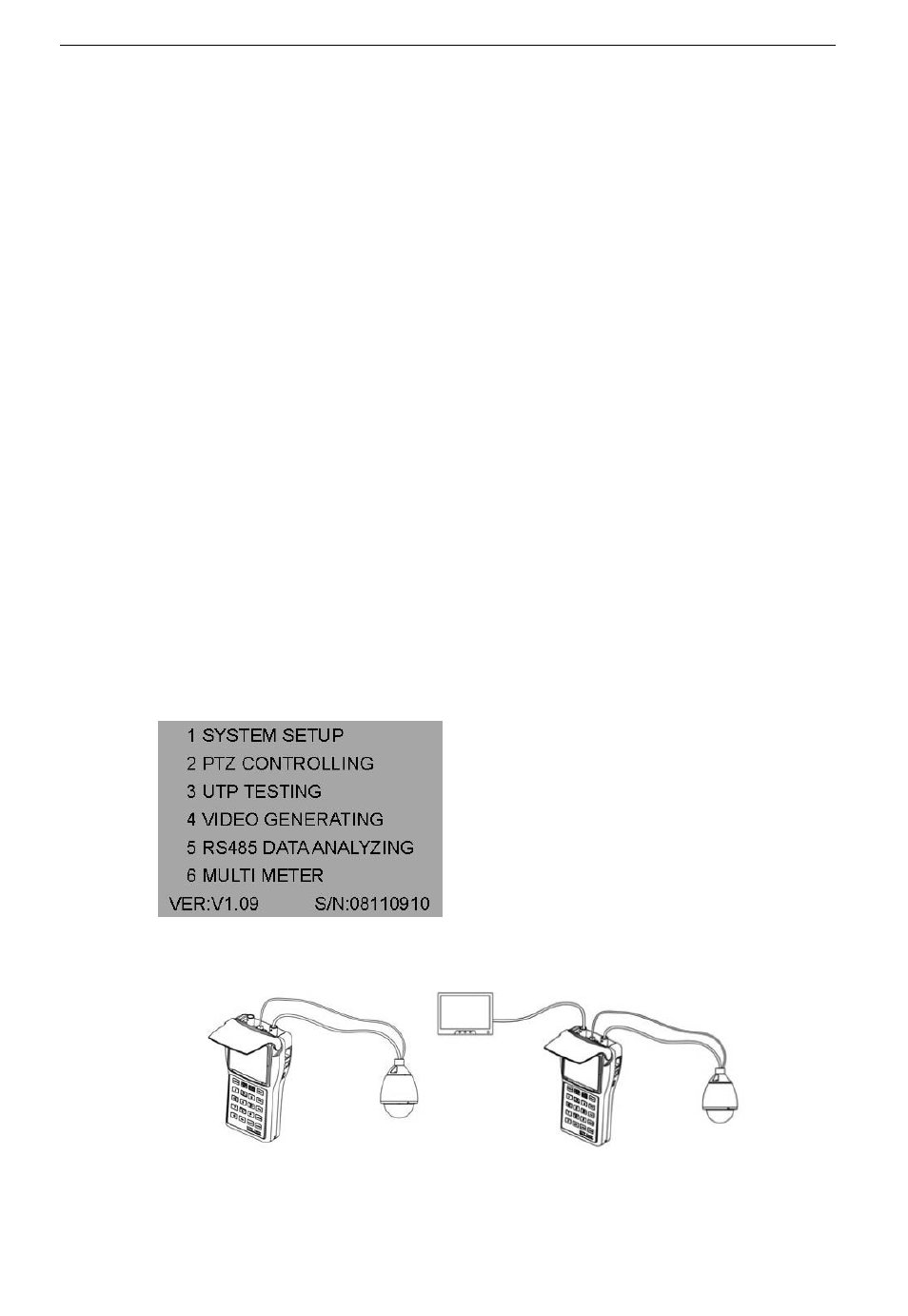

Turn on the device; you will see the main menu, as the following shows:

• 1-5 are five independent submenu;

• Press the corresponding number button to get into the submenu;

• Version number and S/N can’t be edited;

——>

System information

——>

PTZ controlling function

——>

UTP testing function

——>

Video generating function

——>

RS485 protocol analyzing

——>

Software version and S/N

3.3 Video test
