CCTV Tester User’s Manual





10

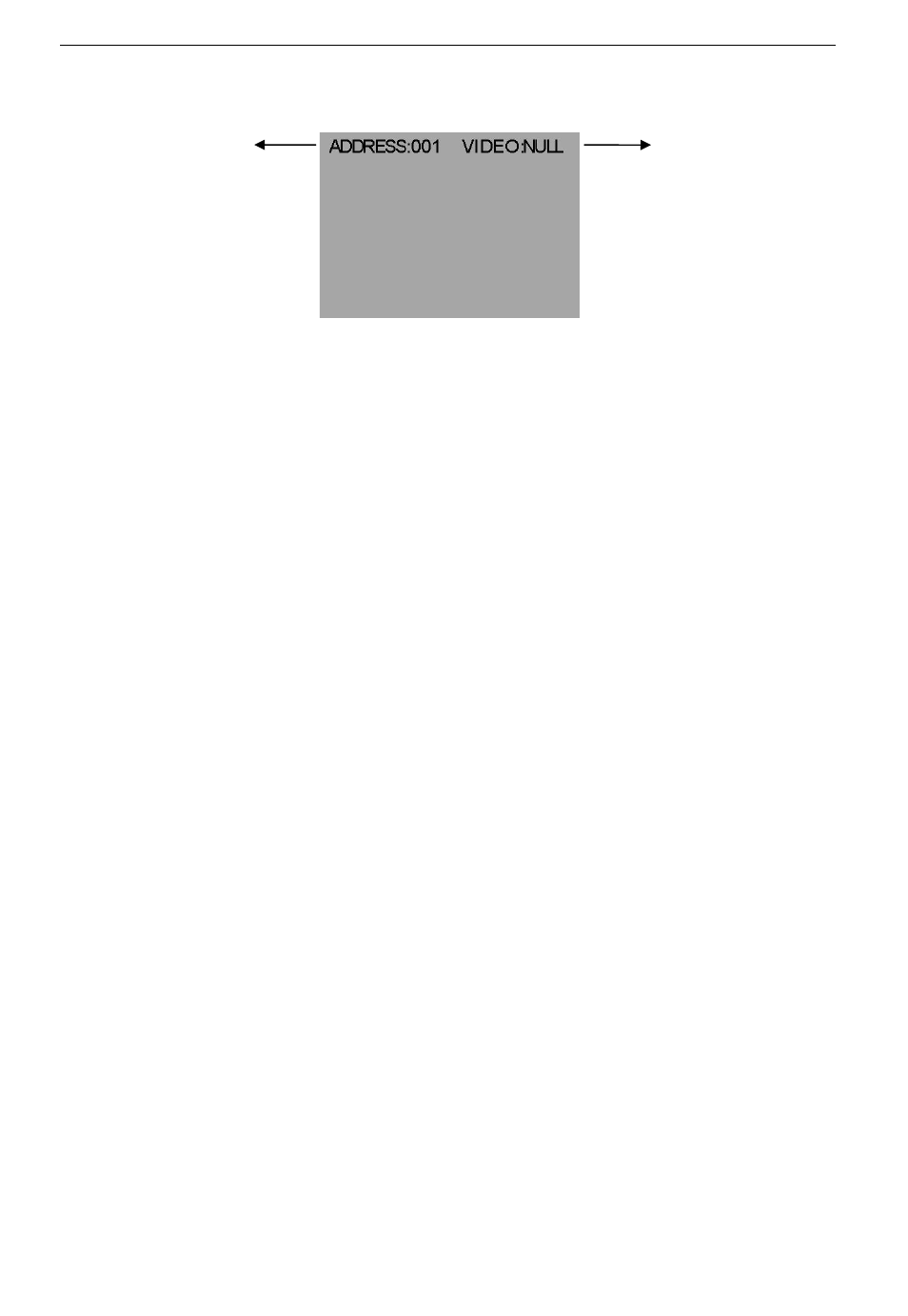

submenu, as the following

Video format

PAL/NTSC/NULL

B.

Operation

PTZ ID

001-255

3.6 Video signal attenuation analyzing

At the mode of video and PTZ testing, when there is an analogue video signal
connected in and displayed on the screen correctly, press the num-button “1” to catch
the parameter of video signal as:

• MAX Vpp: means the difference between maximum and minimum of video

signal strength, the video signal will be brighter when this parameter is larger.

• AVERAGE Vpp: means average of the difference between maximum and

minimum of video signal strength.

When connect to the PTZ correctly, the camera image will be displayed on the screen
of the tester; after setup the proper protocol, baud rate and the ID of the PTZ, user can
control the PTZ as follows:

• Press

the

ADR

button, input the PTZ address by using num-button;

• Press

the

SET

button to save the setup;

• Press

the

MENU

button to hide the menu information and show a clean screen

for camera image;

• Press

MENU

button for 1 second to back to the main menu.

C.

PTZ controlling

• Press

UP/DOWN/LEFT/RIGHT

to control the movement of the PTZ;

• Press

OPEN/CLOSE

to control the iris;

• Press

FAR/NEAR

to adjust the focus manually;

• Press

WIDE/TELE

to zoom in/out the camera lens.

• Set up the preset position

In the PTZ controlling mode, press SPST button, then input the preset position
number by the num-buttons, press SET to save the setup operation, user can
use this method to set several preset positions one by one;

• Calling the preset position

In the PTZ controlling mode, press the CPST button, then input the preset
position number by the num-buttons, press SET to save the setup operation,
user can use this method to call several preset positions one by one;

D.

Preset position
