H.264 Network DVR
- 44 -
6.5 Network Setup

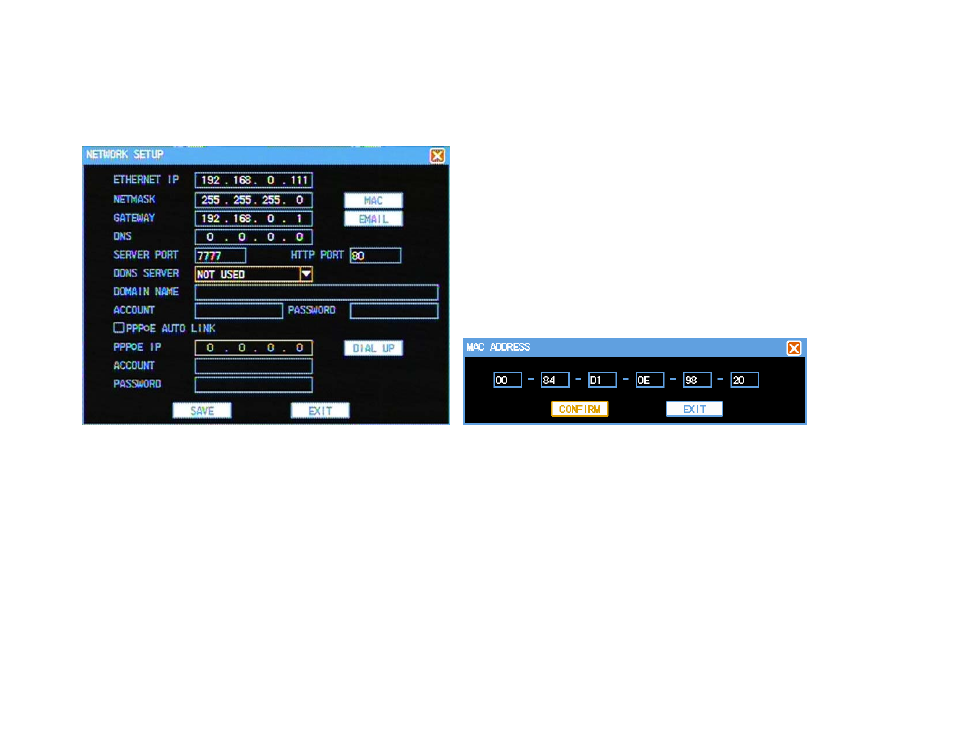

"Main Menu" - "System" - "Network Setup" (Figure 6-6)
Figure 6-6 Figure 6-7
"Ethernet IP" Set the IP address. Figure 6-6
"Netmask" Set the IP network mask address.
"MAC Address" Set the physical address of the network card. The digital input is hexadecimal. (Figure 6-7)
"Gateway" Setup the gateway IP address. Figure 6-6
"DNS" Setup DNS server IP address.
"Server Port" The default is 7777, set according to the user need. Requires a system restart.
"HTTP port" Default is 80, set according to the user need. Requires a system restart. If the port has been changed, it must display the selected HTTP
port, such as:http://192.168.0.117:1234
"DDNS Enable" Pass the dynamic domain name analysis server. Supports free dynamic domain name service (Register account at www.dyndds.org)
"PPPoE Auto Link" Input ISP provided PPPoE user name and password. Click "Dial UP" to connect. Upon successful connection “PPPoE IP” will
display an automatically obtained WAN dynamic IP address. If choose PPPoE Auto Link option, DVR will try to connect PPPoE when power on.
