Regency ® L234 Direct Vent Gas Insert
INSTALLATION

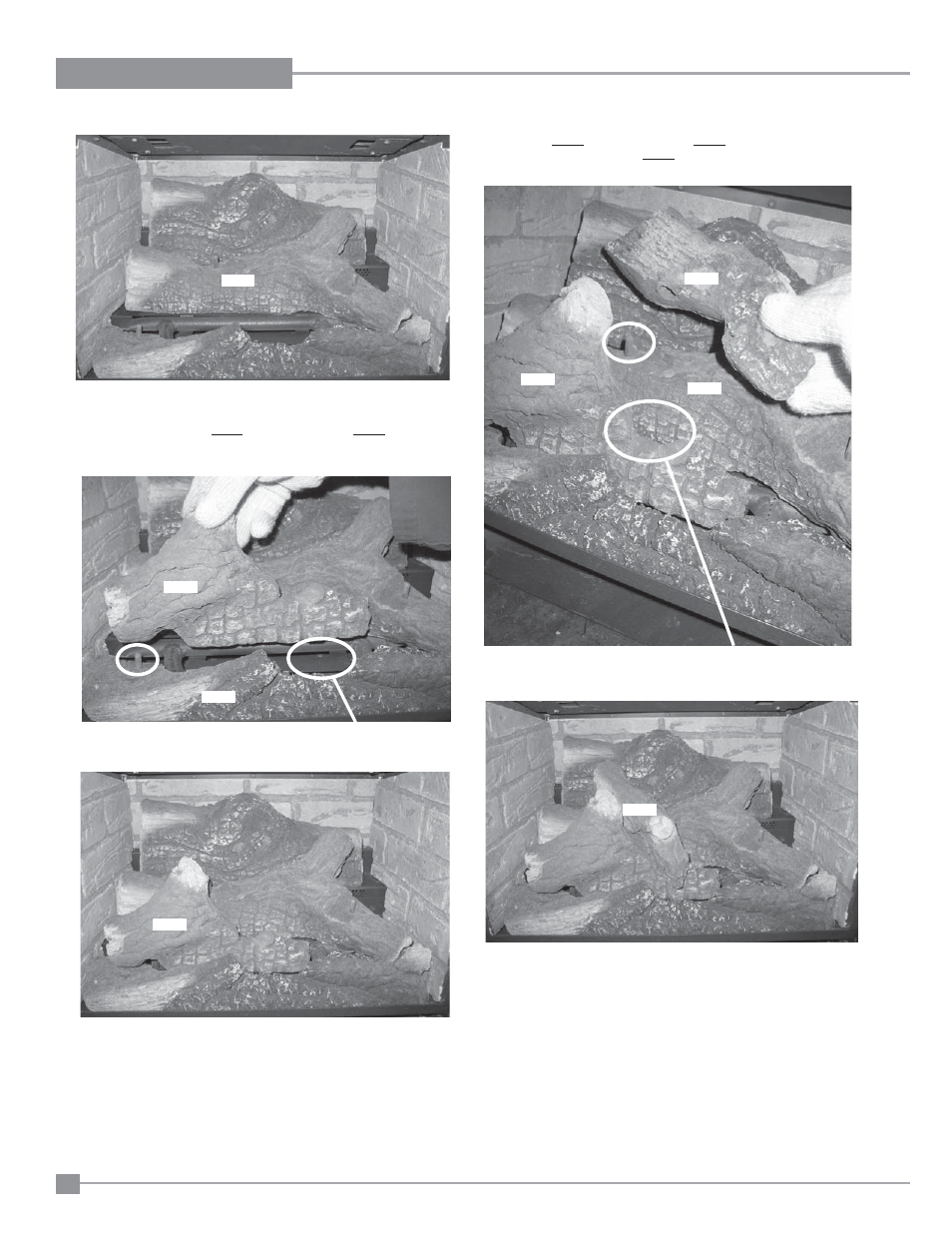

5) Fit the left side of log 2-713 into the pin on log 2-714 and rest the
right side of the log on the burner plate pushing it against the tab.
2-712
2-713
2-714
2-713
6) Place log 2-715 into the pin on log 2-712 and rest the right end of
the log on the notch in log 2-713.
2-715
2-712
Notch
2-713
2-712
Tab
