Installation – Regency Liberty L234 Small Gas Insert User Manual
Page 22
22
Regency
®
L234 Direct Vent Gas Insert
INSTALLATION

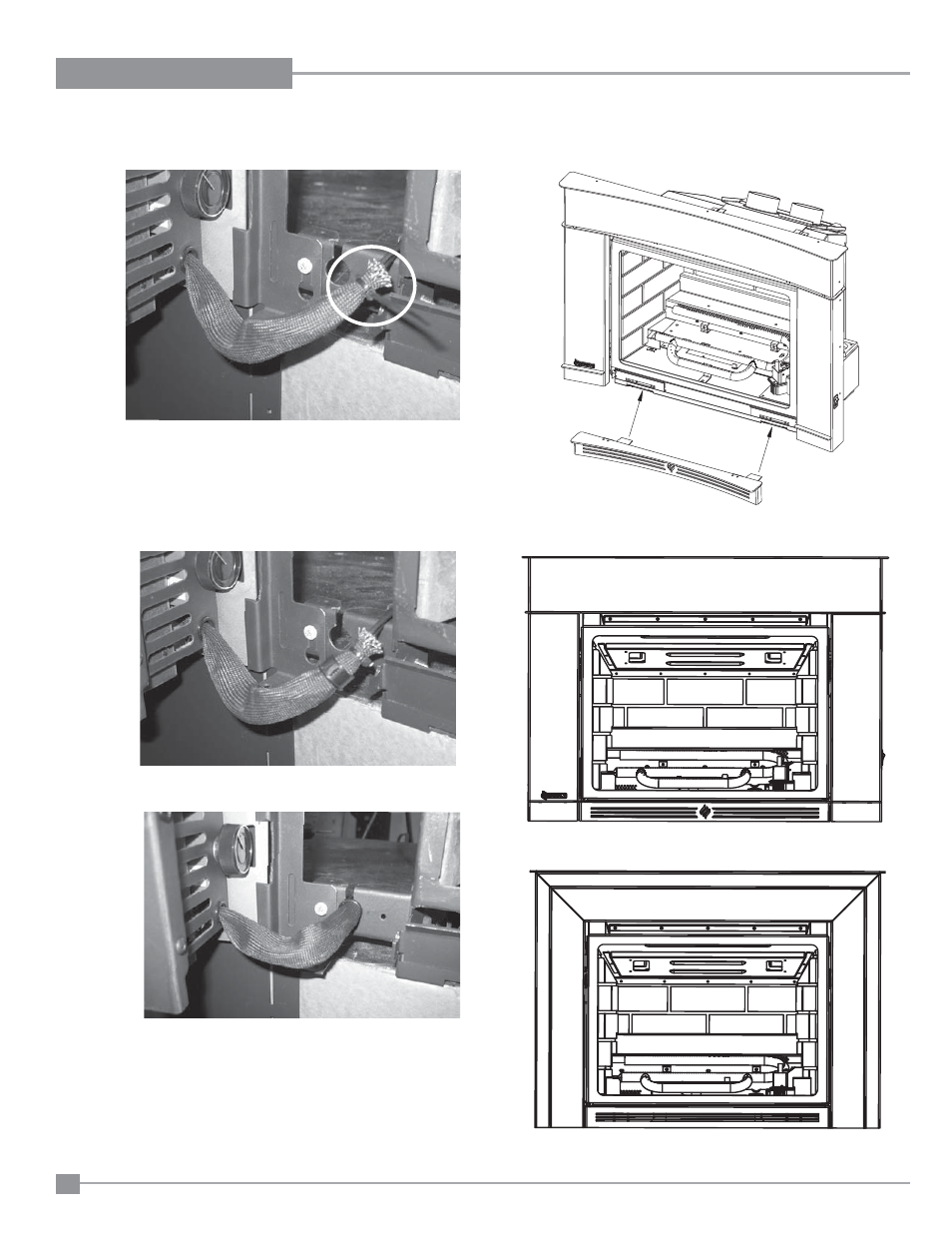

13) Tuck the wires completely into the sleeve and place the supplied
cable tie to the end of it as shown in diagram 11.
Diagram 11
14) Place the grommet removed from step 10 over the sleeve (see
diagram 12) and put back in place (see diagram 13).
NOTE: Ensure connectors are tucked in behind the mounting bracket
to allow the side faceplate panel to close easily.
Diagram 12
Diagram 13
15) Re-install the remote receiver bracket (reverse step 10).
16) Close the left side faceplate panel.
17) Fit the bottom louver into the slots at the bottom of the fi rebox as
shown in diagram 14.
Diagram 14
Completed Faceplate Installation:
Contemporary Faceplate
Contour Faceplate
