20
Regency ® L234 Direct Vent Gas Insert
INSTALLATION
CONTOUR OR CONTEMPORARY FACEPLATE
Faceplate Contents List:
1 Faceplate (Contour or Contemporary)
1 Louver (Contour or Contemporary)
4 Screws (10-24 x 1/2" Pan Head Phillips Black)
2 Wire Clips
1 Cable Tie

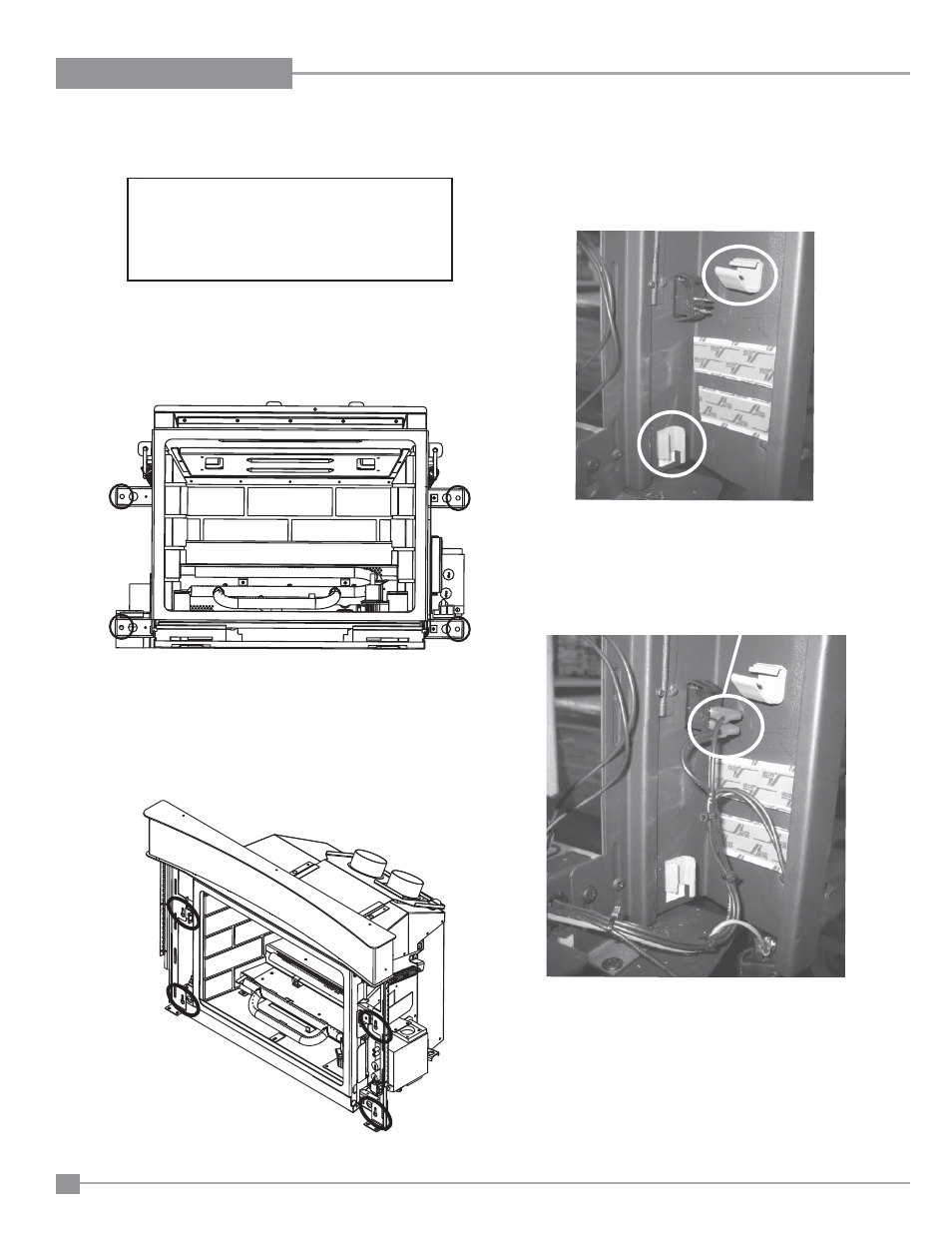

Faceplate Installation:
1) Place the 4 10-24 x 1/2" screws into the faceplate mounting brackets
as identifi ed in diagram 1.
Faceplate shown on unit
without left and right
side panels to show
keyhole mounting.
2) Open the left and right side faceplate panels of the faceplate.
3) Mount the faceplate onto the unit by aligning the 4 key hole slots in
the faceplate with the screws installed to the mounting brackets on
the unit. Tighten screws to secure. See diagram 2.
Diagram 1
Diagram 2
5) From the right side of the unit connect the red female ON/OFF valve
connectors to the ON/OFF switch located on the right faceplate
panel. See diagram 4.
ON/OFF Connectors
4) Place the 2 wire clips on the inside of the right faceplate panel as
shown in diagram 3.
Diagram 3
Diagram 4
