Regency ® L234 Direct Vent Gas Insert
21
INSTALLATION

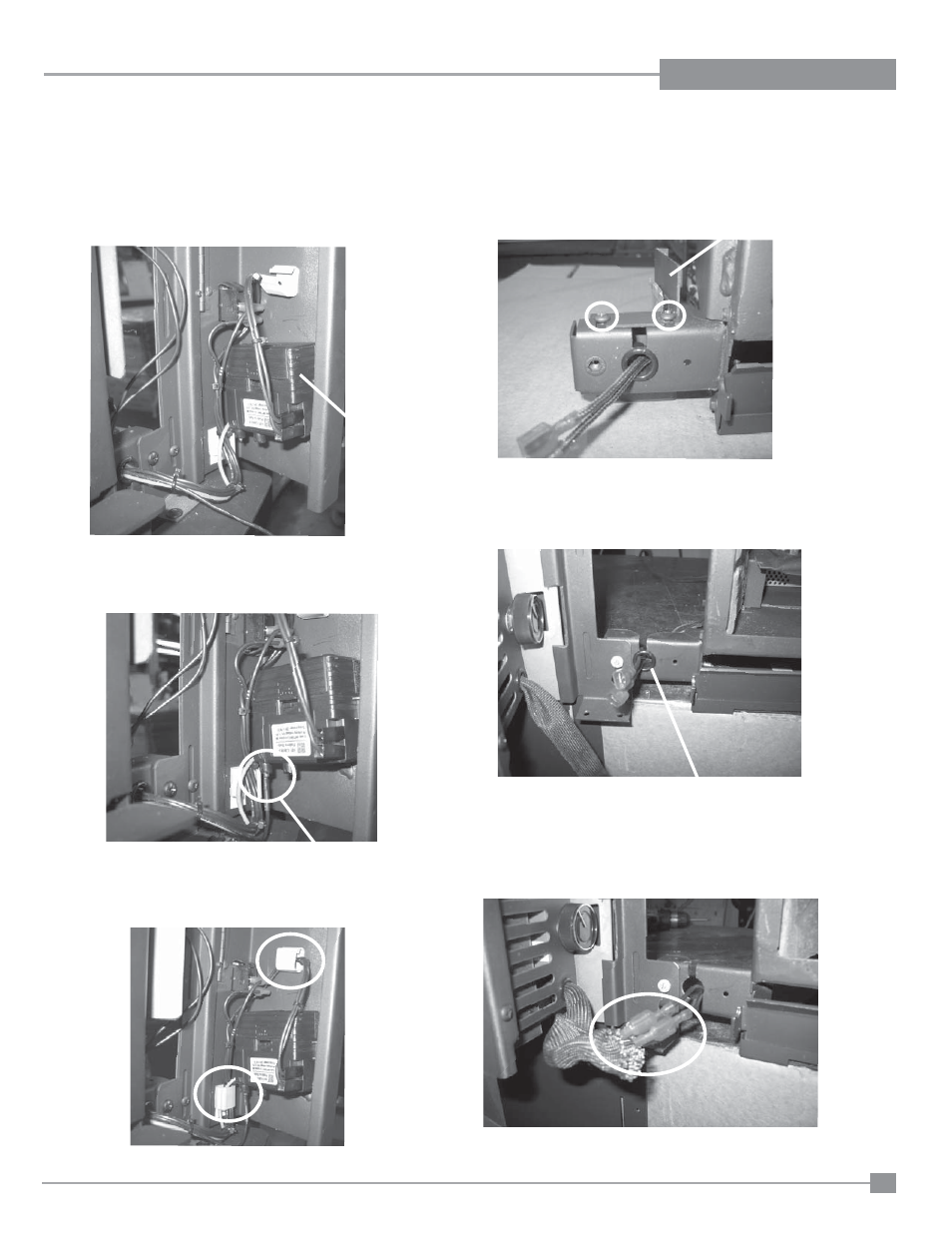

7) From the right side of the unit connect the black electrode wire to the
DC Sparker as shown in diagram 6.
Electrode Wire
8) Secure the loose wires into the wire clips above and to the bottom
left of the DC Sparker as shown in diagram 7.
11) Remove the grommet from the bracket on the left side of the unit.
See diagram 9.
Grommet
12) From the left side faceplate panel expose the fan wires from the
sleeve and connect them to the wires from the unit as shown in
diagram 10.
9) Close the right side faceplate panel.
10) Remove the remote receiver bracket from the left side of the unit by
undoing the 2 screws. See diagram 8.
Remote Receiver
Bracket
6) Peel off the tape from the velcro strips and mount the DC Sparker
to the velcro on the inside of the right faceplate panel as shown
in diagram 5. Install batteries into the DC Sparker (batteries are
included with packaged manual).
NOTE: The DC Sparker comes with the unit. It is cable tied to
the top left side mounting bracket.
DC Sparker
Diagram 5
Diagram 6
Diagram 8
Diagram 9
Diagram 10
