Installation, Log set installation – Regency Liberty L234 Small Gas Insert User Manual
Page 27

Regency
®
L234 Direct Vent Gas Insert
27
INSTALLATION
LOG SET INSTALLATION

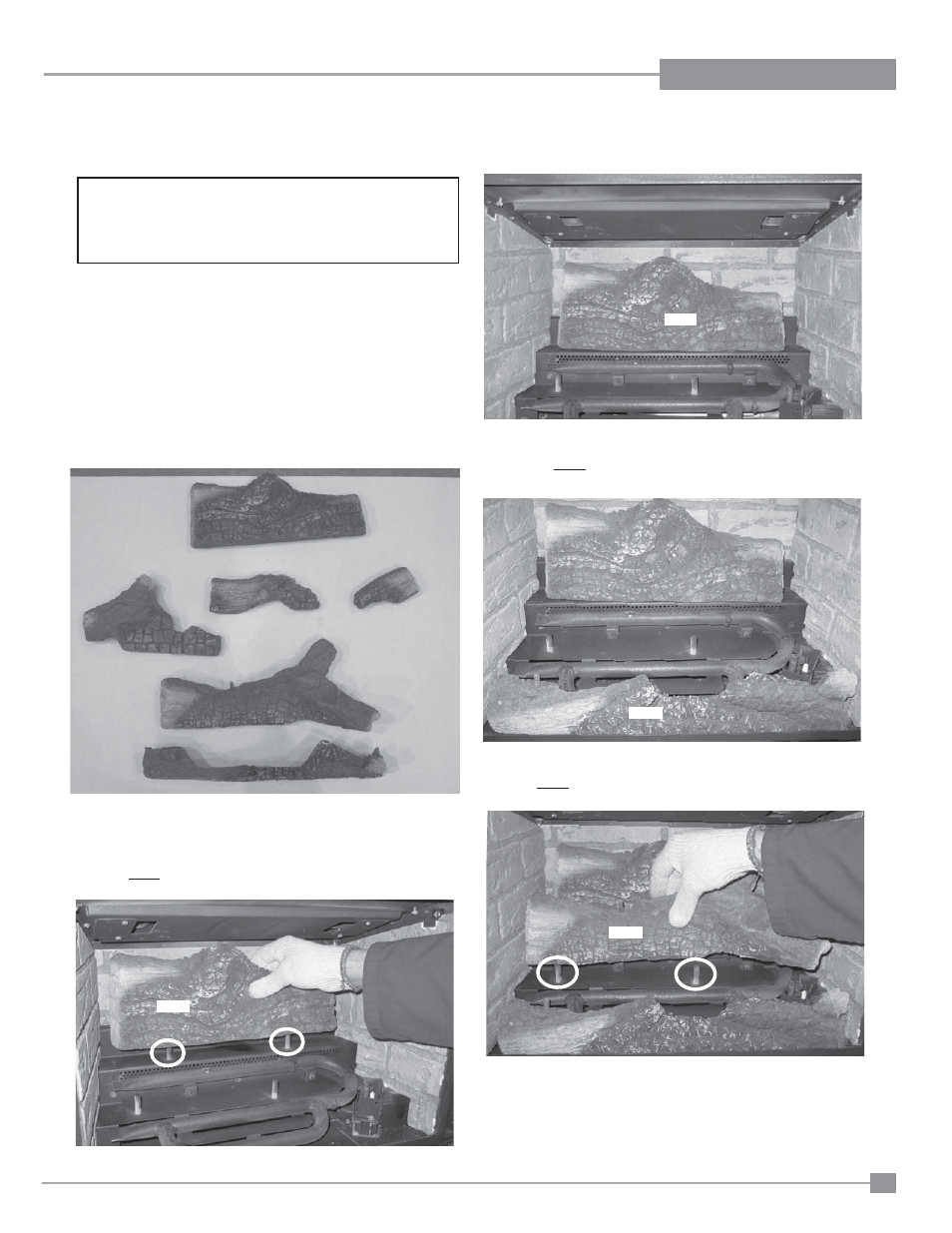

Log kit (Part # 536-930) contains the following pieces:
a) 2-711
Rear
Log
b) 2-712
Center
Log
c) 2-713
Left
Log
d) 2-714
Front
Log
e)
2-715
Top Left Log
f)
2-716
Top Right Log
g)
Embers
(supplied with packaged manual)
h) 946-669
Platinum
Embers
(supplied with packaged manual)
2-713
2-716
2-712
2-715
2-711
2-714
2-711
1) Carefully remove the logs from the box and unwrap them. The logs
are fragile, handle with care - do not force into position.
2) Fit log 2-711 into the pins on the rear log tray.
2-711
3) Place log 2-714 on the base of the fi rebox in front of the burner.
2-714
4) Fit log 2-712 into the pins on the middle of the burner.
2-712
Read the instructions below carefully and refer to the images.
Dangerous operating conditions may occur if the logs are not
positioned in their correct locations. If the logs are broken
do not use the unit until they are replaced. Broken logs can
interfere with the pilot operation.
