14
Regency ® L234 Direct Vent Gas Insert
INSTALLATION
GAS INSERT
AERATION ADJUSTMENT
The burner aeration is factory set but may need adjusting due to either the
local gas supply or altitude. Open the air shutter for a blue fl ame or close for
a more yellow fl ame.
CAUTION: Carbon will be produced if the air shutter is closed
too much.
Minimum Air Shutter Openings
Vent Run
Burner Aeration
Setting
3" x 3"
8' to 20'
NG: 3/16"
LP: 3/16"
20' to 35'
NG: 3/16"
LP: 3/16"
3" x 2"
8' to 20'
NG: 3/16"
LP: 3/16"
20' to 35'
NG: 1/8"
LP: 1/8"
Note: Any damage due to carboning resulting from improperly setting
the aeration controls is NOT covered under warranty.
Note: Aeration Adjustment should only be performed by an authorized
FPI Installer at the time of installation or service.

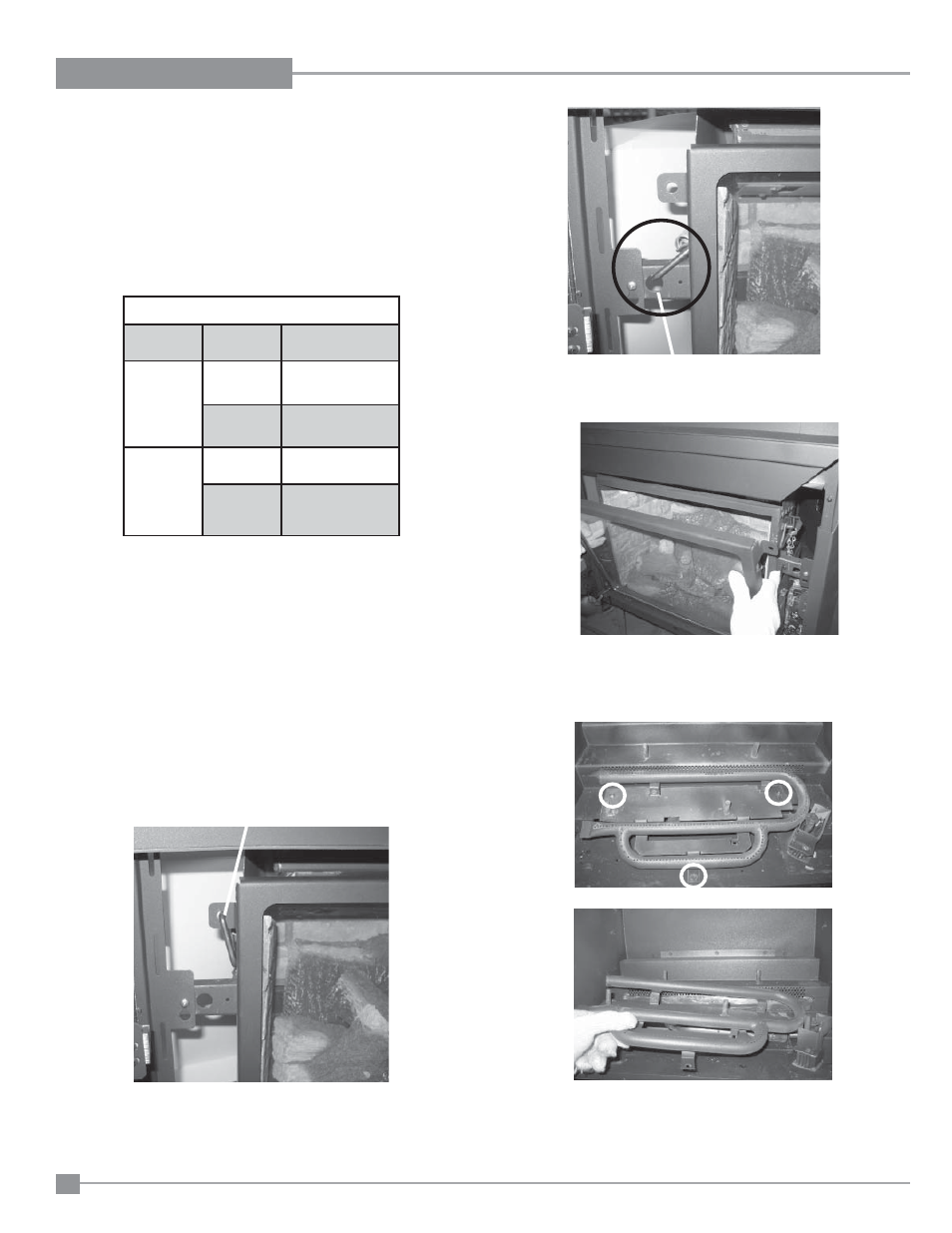

1. Open the left and right side faceplate panels.
2. Remove the bottom louver by pulling out.
3. Remove the glass door.
a) Pull off the left side spring hook that holds the door in place. While
holding the hook turn it upside down and place it into the middle opening
on the top side mounting bracket. Repeat for right side
.
b) Swing the door out 45 degrees and lift up and out.
4. Remove the logs.
5. Remove brick panels, if installed.
6. Remove the burner by undoing the 3 screws.
7. Make necessary aeration adjustment - reverse Steps 6-1.
Burner Removed
Spring Hook
Top Mounting Bracket
