AA batter

ies

Terminal

Block

(Output)

JUMPER

Open for Lower

Sensitivity

Short for N/C

Open for N/O

Open for Multiple Events

Short for First Event

JUMPER

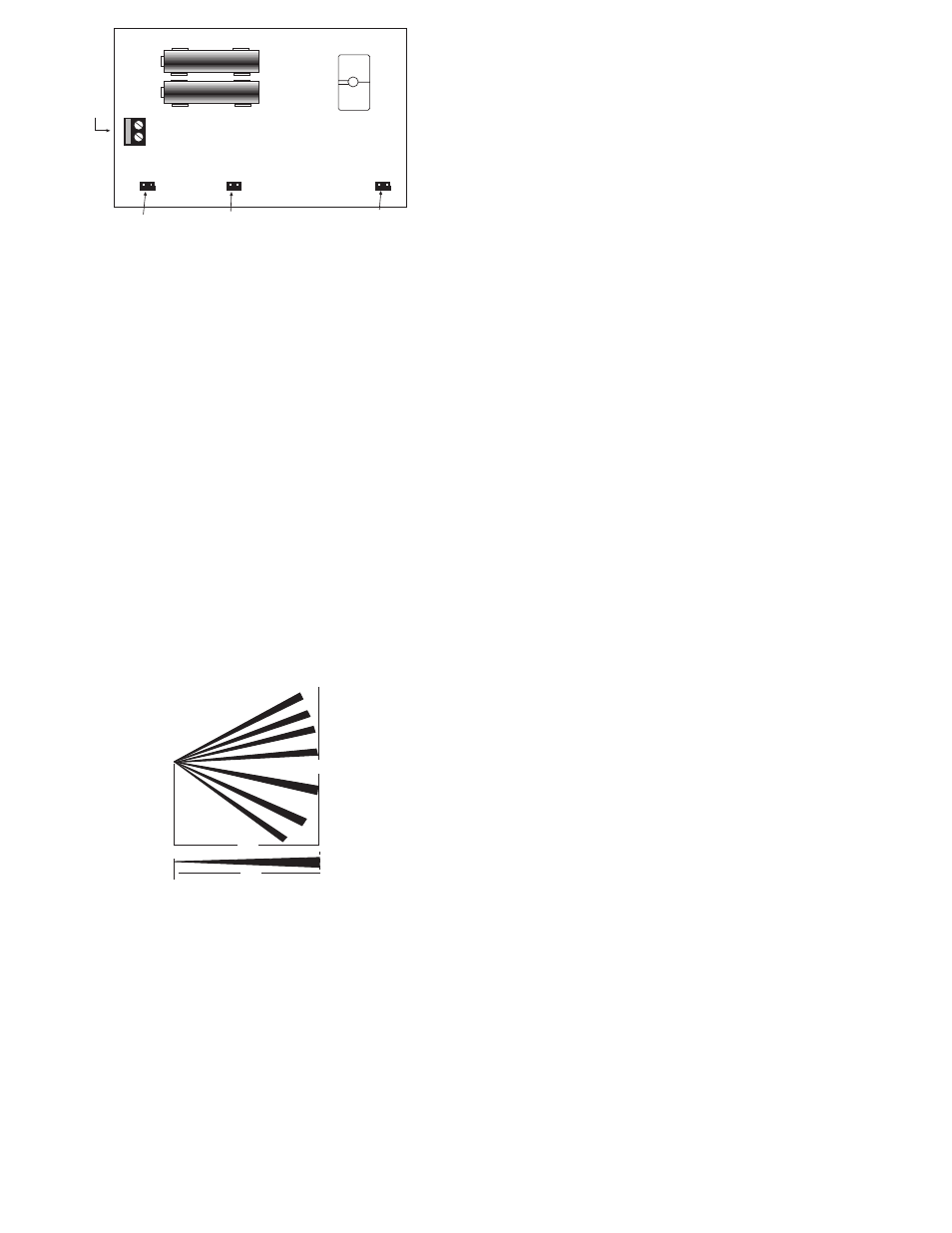

Figure 5: Circuit Board

7. Remount the circuit board on its three pegs and snap

the front cover back on.

8. Run the two wires back to the Sensaphone unit.

Connect one wire to any available alert input, the

other to ground or common. The Infrared Motion

Detection Sensor is a normally closed sensor.

9. Program the input normality as follows:
• For models 400, 800, 1400, 1800, 2800:
To be certain that the normal input state is closed,

take a piece of wire and attach it across the input

terminals. This will force the input closed. Press Set,

then Configure to set normality.

• For Sensaphone 2000, WEB600, SCADA 3000,

and Express II:

Program the input type as normally closed.

Consult your specific Sensaphone owner’s manual for further instructions.

40'

Top

View

40'

4.5'

Side View

Figure 6: Distance Measurements
Note regarding Input Recognition Time: If your

equipment allows, set the input recognition time to 1

second. Most units default to 3 seconds, which may be

too long to detect the alarm.

sPEcIFIcatIons

Normality: Normally closed
Range: Approximately 40 feet
Dimensions: 4” x 6” x 1.5”
Number per input: Multiple, wired in series.

WarrantY

1. WARRANTOR: Dealer, Distributor, Manufacturer
2. ELEMENTS OF WARRANTY: This Product is warranted to be free

from defects in materials and craftsmanship with only the limitations

and exclusions set out below.

3. WARRANTY AND REMEDY:

One-Year Warranty — In the event that the Product does not conform to this

warranty at any time during the time of one year from original purchase, warran-

tor will repair the defect and return it to you at no charge.
This warranty shall terminate and be of no further effect at the time the Product

is (1) damaged by extraneous cause such as fire, water, lightning, etc. or not

maintained as reasonable and necessary; (2) modified; (3) improperly installed;

(4) repaired by someone other than warrantor; (5) used in a manner or purpose

for which the Product was not intended; or (6) sold by original purchaser.
WARRANTORS’ OBLIGATION UNDER THIS WARRANTY IS LIMITED TO

REPAIR OR REPLACEMENT OF THE PRODUCT. THIS WARRANTY DOES

NOT COVER PAYMENT OR PROVIDE FOR THE REIMBURSEMENT OF

PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.
It must be clear that the warrantors are not insuring your premises or guaran-

teeing that there will not be damage to your person or property if you use this

Product.
The warrantors shall not be liable under any circumstances for damage to your

person or property or some other person or that person’s property by reason

of the sale of this product or its failure to operate in the manner in which it is

designed. The warrantors’ liability, if any, shall be limited to the original cost of

the Product. The warrantors assume no liability for installation of the Product

and/or interruptions of the service due to strikes, riots, floods, fire, and/or any

cause beyond Seller’s control.

4. PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY:

In the event that the Product does not conform to this warranty, the

Product should be shipped or delivered freight prepaid to a warrantor

with evidence of original purchase.

5. LEGAL REMEDIES: This warranty gives you specific legal rights, and

you may also have other rights which vary from state to state to the

extent allowed by law expressly in lieu of any other express or implied

warranty, condition, or guarantee.

For technical support, call 877-373-2700

or email [email protected]

SENSAPHONE

901 Tryens Road

Aston, PA 19014

www.sensaphone.com
